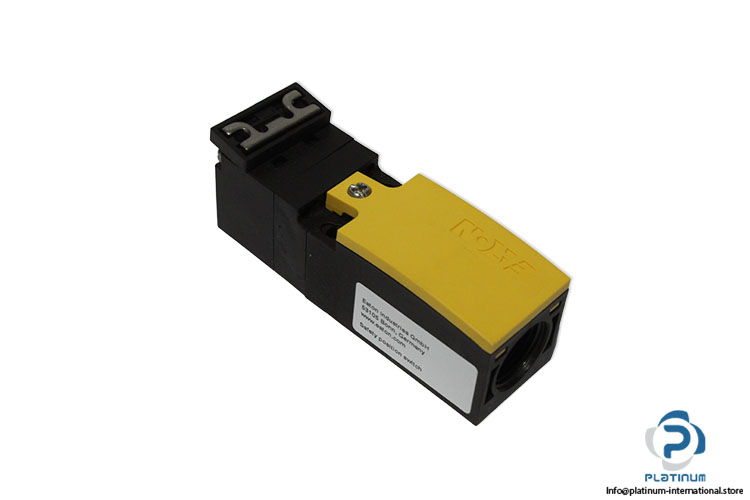

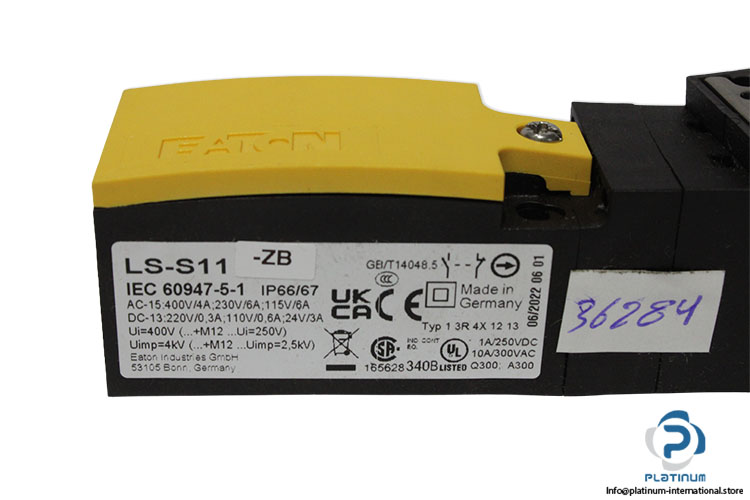

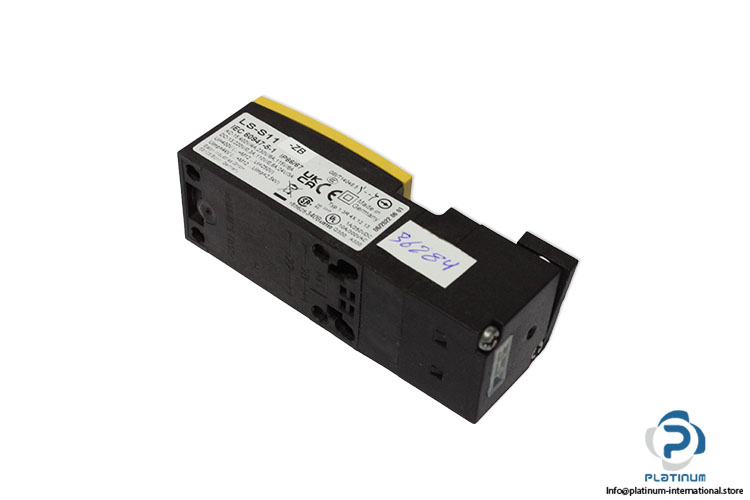

Eaton LS-S11-ZB Safety Interlock Switch
جديد
متوفر4 وحداتجاهز للشحن
Safety Interlock Switch Eaton LS-S11-ZB safety interlock switch from the LS-Titan series with 1NO + 1NC contacts, IP66 protection, and reliable switching performance for industrial safety applications.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| Series | LS-Titan |
| Contact | 1 Normally Open (NO) + 1 Normally Closed (NC) |
| Contact Rating | AC-15: 400V/4A, 230V/6A, 115V/6A - DC-13: 220V/0,3A, 110V/0,6A, 24V/3A |
| Rated Impulse Voltage Uimp | 2,5 / 4 kV |
| Rated Insulation Voltage Ui | 250 / 400 V |
| Housing Material | Plastic |
| Protection Class | IP66 |
| Ambient Temperature | -25 … 70 °C |
| Dimensions | 96 x 29.5 x 29.5 mm |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 1092794 |
| Weight | 0,08 |
