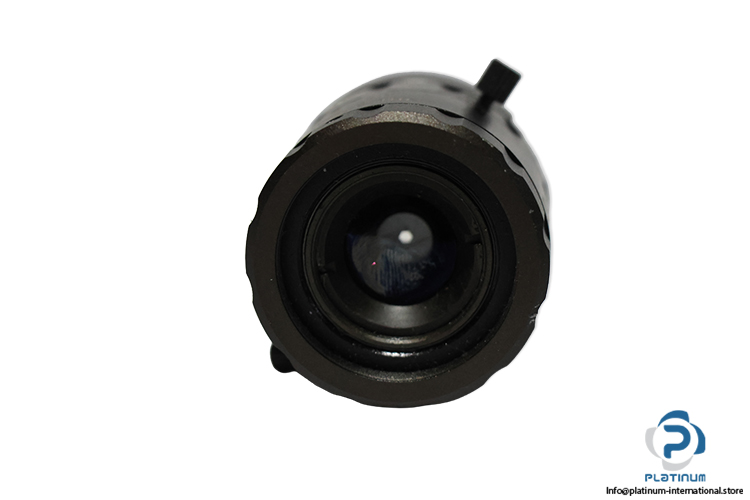

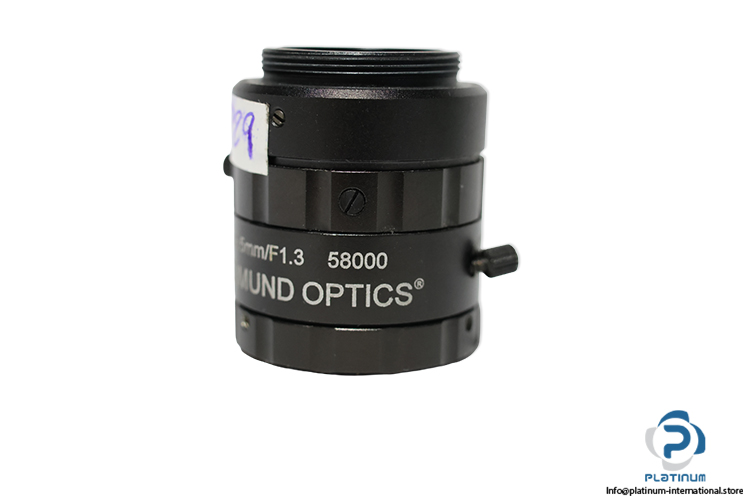

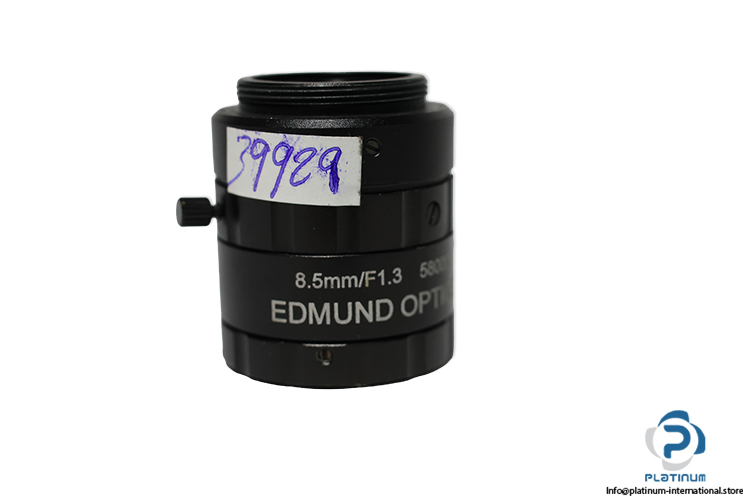

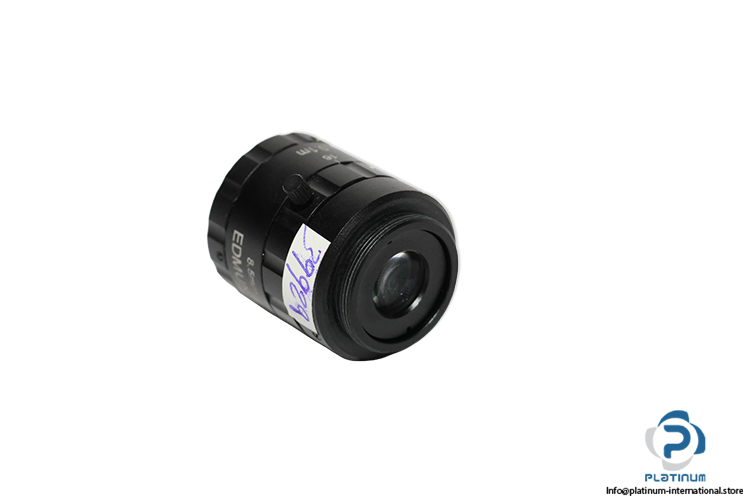

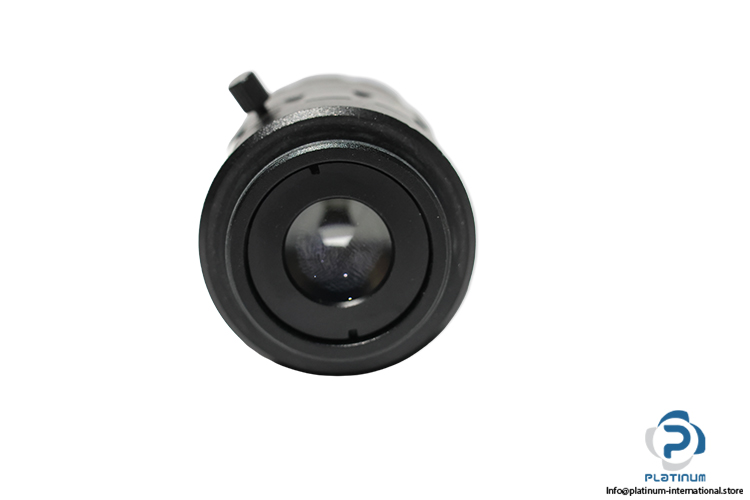

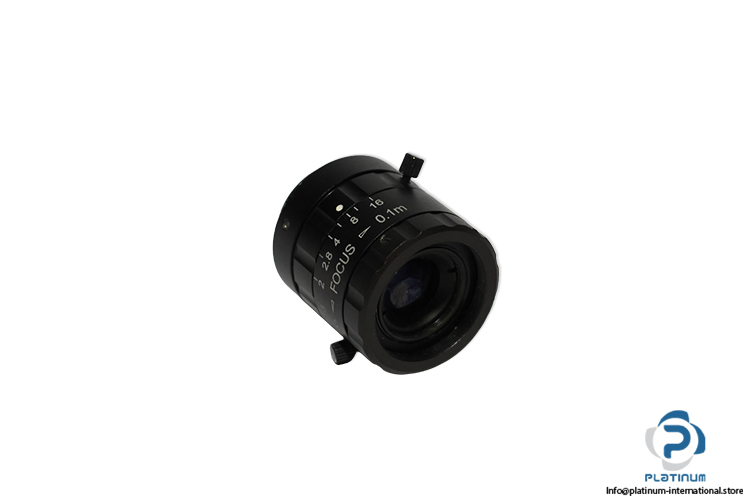

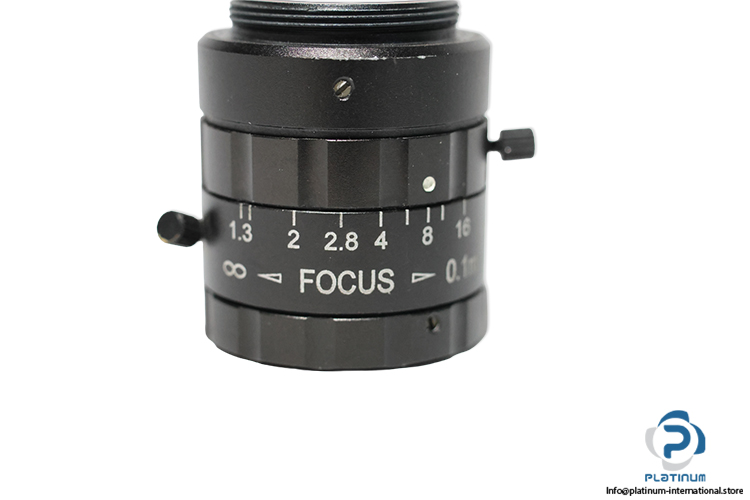

Edmund 8.5MM/F1.3 58000 Fixed Focal Length Lens
مستعمل
متوفر1 وحدةجاهز للشحن
Fixed Focal Length Lens The EDMUND HF12.5HA-1B is a C-Mount fixed focal length lens with manual focus and VIS wavelength range, designed for machine vision and imaging applications.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| Part No. | 58000 |
| Focal Length | 1.4/12.5 mm |
| Iris Range | 33.98 mm |
| Focus Operation | Manual |
| Outer Diameter | 26.5 mm |
| Horizontal Field of View @ Max Sensor Format | 128.6 mm - 60.6° |
| Field of View at Max Sensor Format | Horizontal: 124.9 mm - 60.7° / Vertical: 88.9 mm - 45° / Diagonal: 169.4 mm - 77° |
| Horizontal Field of View, 2/3" Sensor | 128.6 mm - 60.6° |
| Horizontal Field of View, 1/1.8" Sensor | 101.0 mm - 49.2° |
| Horizontal Field of View, 1/2" Sensor | 88.3 mm - 43.6° |
| Horizontal Field of View, 1/2.5" Sensor | 79.2 mm - 39.5° |
| Horizontal Field of View, 1/3" Sensor | 64.6 mm - 32.6° |
| Horizontal Field of View, 1/4" Sensor | 47.8 mm - 24.4° |
| Maximum Image Circle | 11.00 mm |
| Numerical Aperture NA, Object Side | 0.0295 |
| Number of Elements (Groups) | 7 (5) |
| Focal Length FL | 8.50 mm |
| Working Distance | 100 mm - Infinite |
| Aperture | f/1.3 |
| Coating | 425 - 675 nm BBAR |
| Coating Specification | 425 - 675 nm BBAR |
| Entrance Pupil Position | 8.22 mm |
| Object Space Principal Plane | 14.08 mm |
| Image Space Principal Plane | 6.67 mm |
| Maximum Distortion | -18.51% |
| Exit Pupil Position | -12.23 mm |
| Lens Wavelength Range | VIS |
| Maximum Sensor Format | 2/3" |
| Pixel Size | 2.74 µm |
| Filter Thread | M30.5 x 0.50 (Male) |
| Filter Thread Adapter | #89-932 (Required) |
| Front Thread | M22.0 x 0.5 (Male) |
| Mount | C-Mount |
| Stock Key | CON003 |
| Condition | Used |
| SKU | 1103789 |
| Weight | 0,06 |
