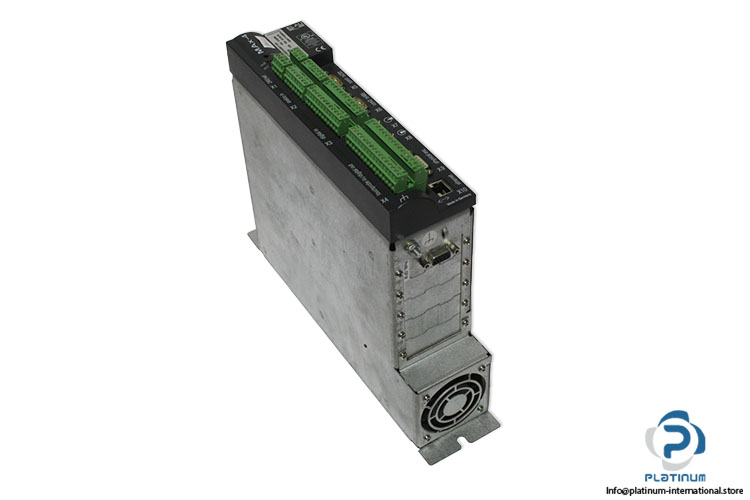

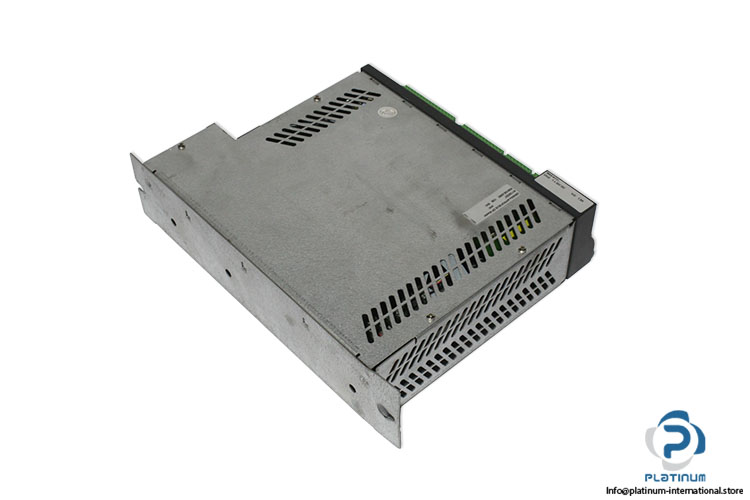

Elau MAX-4/11/02/016/08/1/1/00 Pacdrive Controller
مستعمل
متاح عند الطلب
PacDrive Controller The ELAU MAX-4 is an industrial PacDrive controller with SERCOS motion interface and PROFIBUS DP-Master, designed for synchronized control of up to 47 servo drives.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

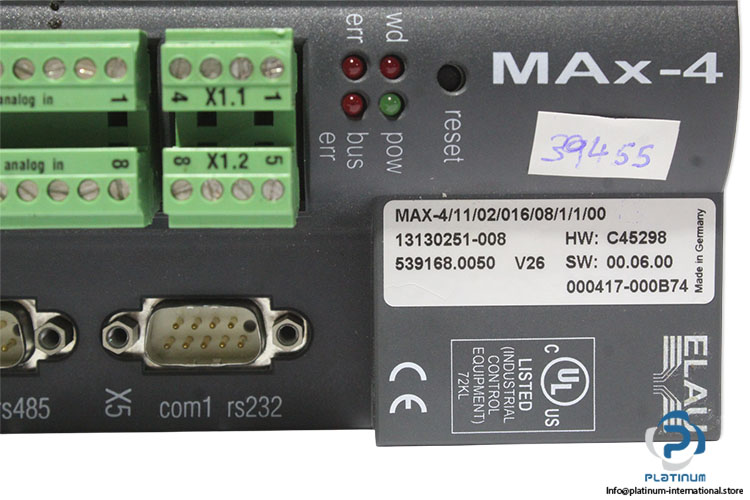

| Part No. | 13130251-008 |
| Ref No | 000417-000B74, 539168.0050 V26 |
| HW | C45298 |
| SW | 00.06.00 |
| Range | MAX-4 |
| Processor (CPU) | Intel Pentium II, 266 MHz |
| System Memory | 32 MB RAM, 512 KB L2 Cache |
| Storage Capacity | 16 MB CompactFlash™ Disk |
| Operating System | VxWorks real-time operating system |
| Programming Standard | IEC 61131-3 languages via EPAS-4 |
| Motion Bus Interface | SERCOS fiber-optic real-time interface |
| Synchronized Drives | Controls up to 47 servo drives |

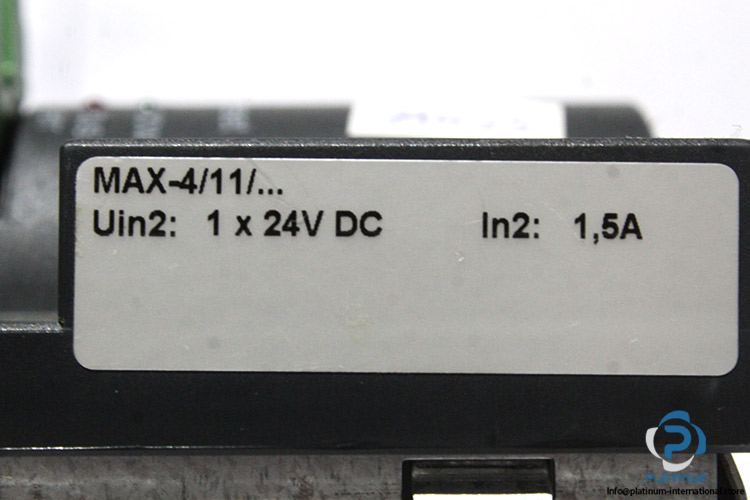

| Rated Current | 1.5 A |
| Rated Voltage | 1 X 24 VDC |
| Power Consumption | Max. 0.06 Kw |
| Flash Memory | 16 MB |
| Ambient Temperature | +5 … +55 °C |
| Protection Class | IP20 |

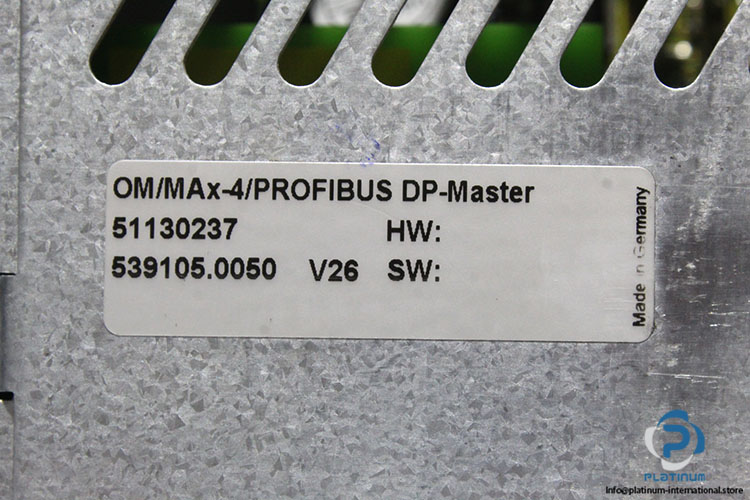

| Attached with | OM/MAx-4/PROFIBUS DP-Master |
| Part Number / ID | 51130237 |
| Secondary Production Number | 539105.0050 V26 |
| Condition | Used |
| SKU | 1100876 |
| Weight | 2,35 |
