Euroswitch FS-AD22-WLR Proximity Limit Switch

Name: EUROSWITCH FS-AD22-WLR PROXIMITY LIMIT SWITCH
SKU: 1092317
Availability: LimitedAvailability

euroswitch-FS-AD22-WLR-proximity-limit-switch-(Used)

euroswitch-FS-AD22-WLR-proximity-limit-switch-(Used)-1

euroswitch-FS-AD22-WLR-proximity-limit-switch-(Used)-2

euroswitch-FS-AD22-WLR-proximity-limit-switch-(Used)-3

مستعمل

متوفر1 وحدةجاهز للشحن

مفتاح حد القرب Euroswitch FS-AD22-WLR(X041) مفتاح حد قرب مع تماس SPDT، تصنيف ضغط 138 بار، هيكل من الفولاذ المقاوم للصدأ 316L، وحماية IP66/67/68 للبيئات الصناعية القاسية.

الشركة المصنّعة

EUROSWITCH

SKU

1092317

الفئة

Others

الحالة

مستعمل

138 316L bar Euroswitch Explosion FS-A FS-AD22-WLR(X041)Industrial IP66 IP67 IP68 Limit Pressure Proof Proximity Series Spdt stainless Steel Switch

مخزون ضخم

شحن عالمي

دعم من خبراء

جودة مضمونة

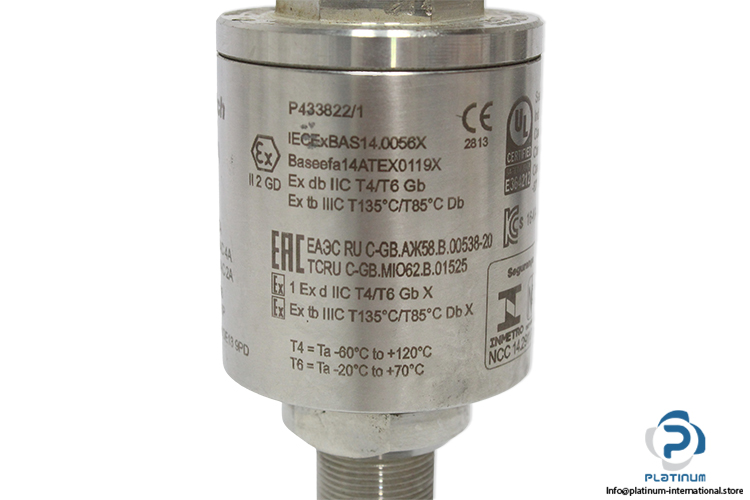

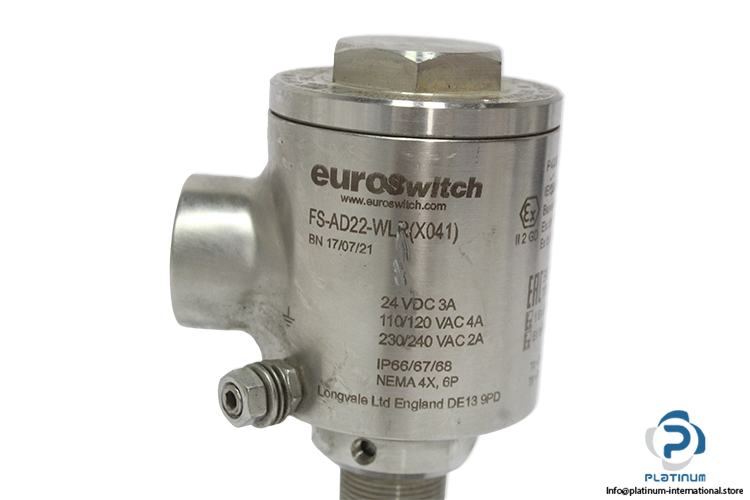

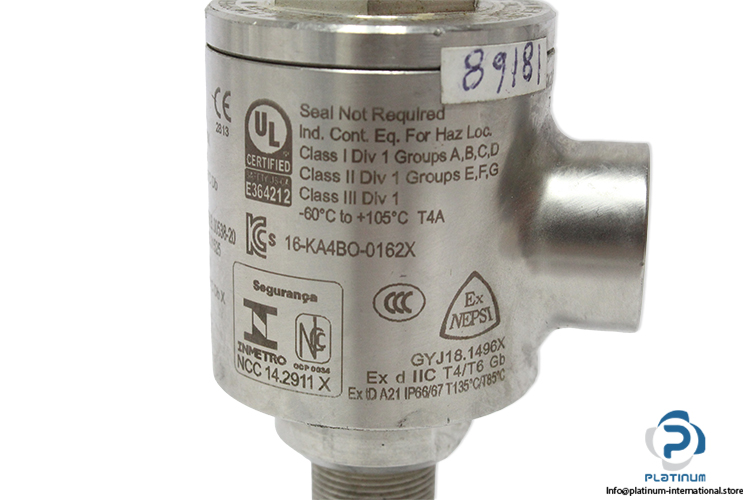

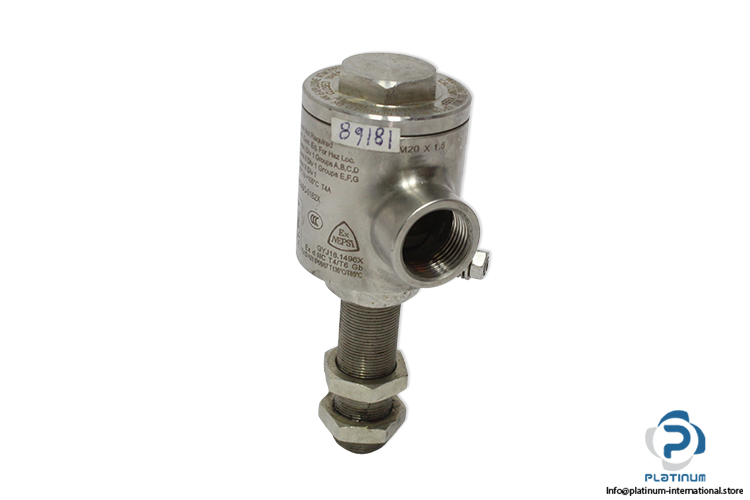

Euroswitch FS-AD22-WLR(X041) Proximity Limit Switch

The Euroswitch FS-AD22-WLR(X041) is a high-performance proximity limit switch designed for industrial pressure and position monitoring applications. Built with 316L stainless steel and explosion-proof certification, it ensures reliable operation in harsh and hazardous environments.

Manufacturer: Euroswitch

Type: Proximity Limit Switch

Model: FS-AD22-WLR(X041)

Ser. No.: 97016E01096

Series: FS-A

Contact Ratings:

24 VDC 3A

110/120 VAC 4A

Process Pressure Max.	138 bar
Contact	SPDT
230/240 VAC 2A Process Connection	G1/2 Side Entry 360° Rotatable
Material	316L Stainless Steel
Protection Class	IP66/67/68
Temperature	-60 / 120°C
Certification	Globally Approved - Explosion Proof **
Includes Approvals	3, 4, P, R, X, Z Hardwired & 3, 4, P, R, V, X, Z Wireable
