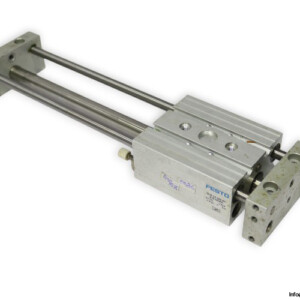

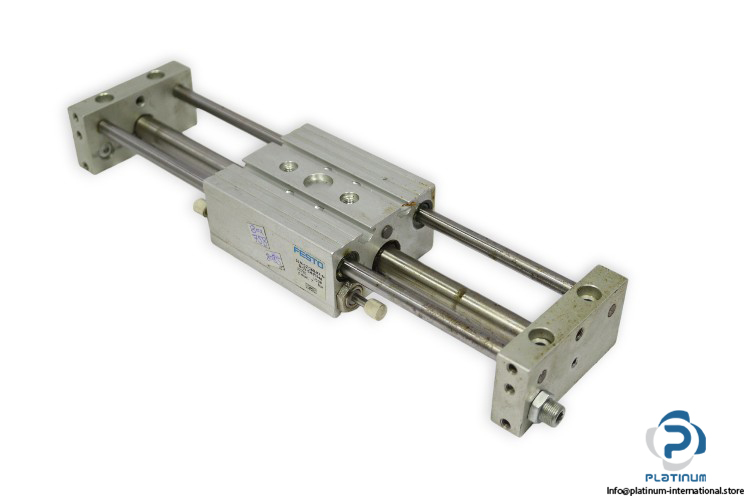

Festo 32781 Linear Unit

Manufacturer: FESTO
Type: Linear unit

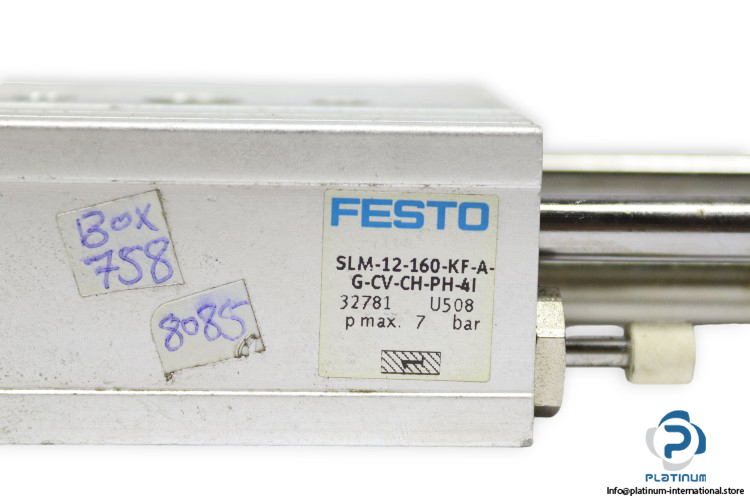

Model: SLM-12-160-KF-A-G-CV-CH-PH-4I
Part No.: 32781

Stroke Length: 160 mm
Piston Diameter: 12 mm
Guide: Recirculating ball bearing guide
Position sensing: For proximity sensor
Cushioning:
Elastic cushioning rings/pads at both ends
Pneumatic shock absorber, hard characteristic curve
Position Sensing: For proximity sensing
Operating pressure: 7 bar
Mode of operation: Double-acting
Operating medium: Compressed air
Housing material: Aluminum
Pneumatic Connection: 5 mm
Temperature: -20 … 60 °C
