Festo 550299 Subplate
جديد
متوفر53 وحداتجاهز للشحن
لوحة فرعية مع صمامات ومؤقت من FESTO SA-211603 توفر التحكم الفعال في الأنظمة الهوائية بحجم منفذ G1/4 والتسلسل المدمج.
accessoriesassemblyBasicFestoPlatePneumaticPZVT-30-SECSA-211603subTimerUnitValveVL/O-3-3.3-SAVZO-3-3.3
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

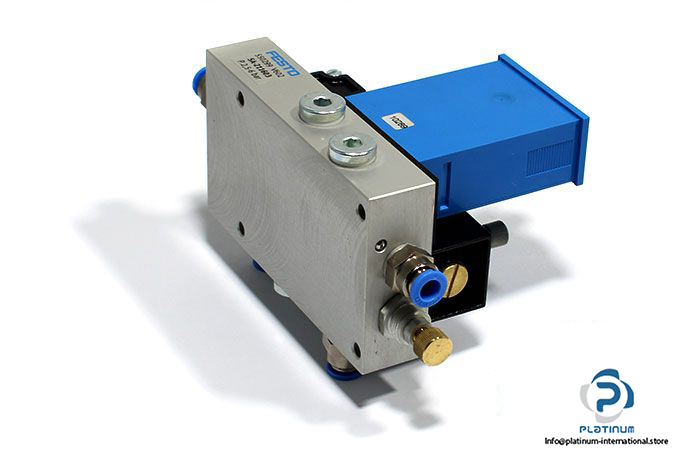

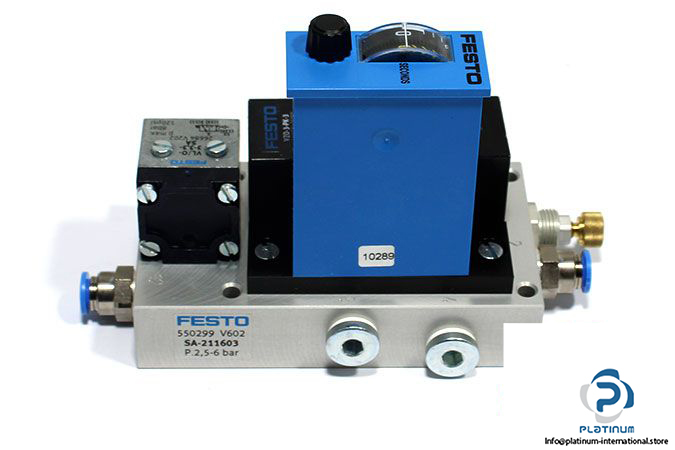

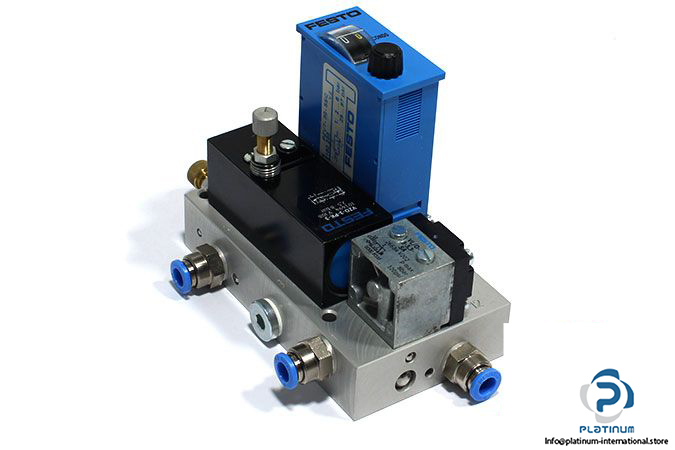

FESTO SA-211603 SUB PLATE WITH ATTACHED VALVES AND TIMER
The FESTO SA211603 sub plate is designed for pneumatic assemblies and comes with integrated FESTO valves and a timer unit. This compact solution enables precise flow control and sequence timing for industrial automation systems.
Manufacturer: FESTO
Type: Sub Plate
Model: SA-211603
Part No.: 550299
Timer Technical Information
| Port Size | G1/4 |

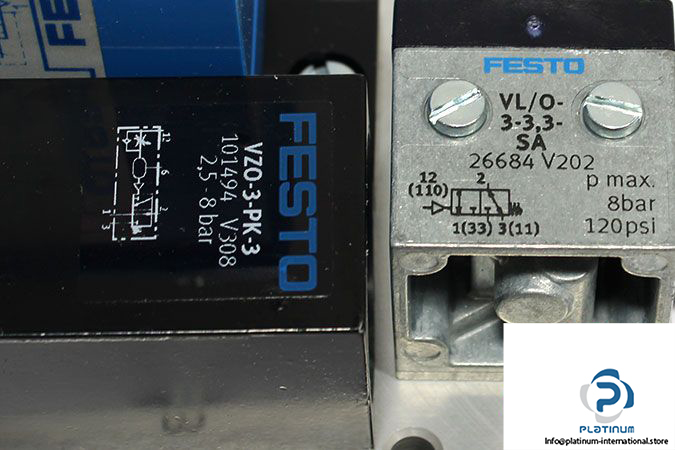

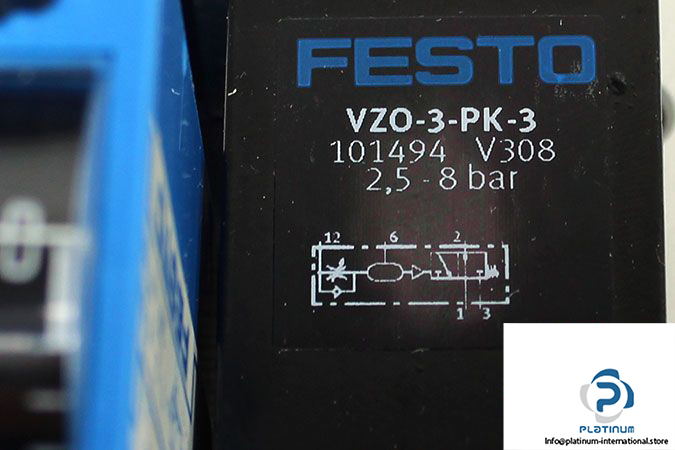

| Attachment | FESTO 101494 BASIC VALVE |
| Part No. | 101494 |
| Attachment | FESTO 26684 BASIC VALVE |
| Part No. | 26684 |

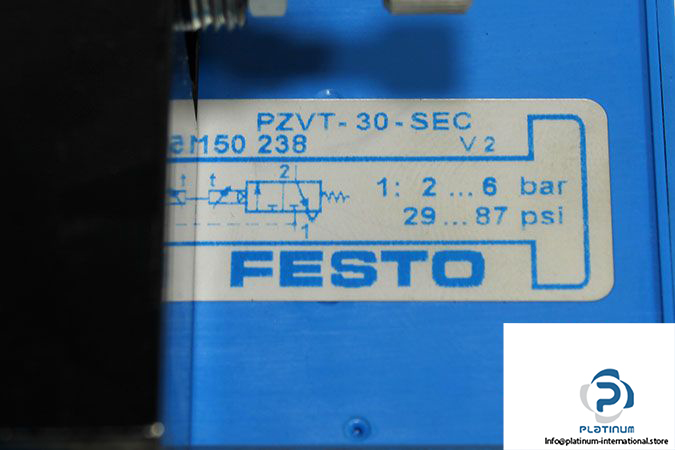

| Attachment | FESTO 150238 TIMER |
| Part No. | 150238 |
| Design Structure | Mechanical Sequence Counter with Pneumatic Drive |
| Operating Medium | Compressed Air, Lubricated Operation Not Possible |
| Adjustable Delay Times | 2 / 30 s |
| Operation Pressure Range | 2 / 6 bar / 29 / 87 PSI |
| Switch On Pressure | 1.6 bar |
| Switch Off Pressure | 0.1 bar |
| Nominal Flow Rate | 50 l/min |
| Connection | M5 Female, Threaded |
| Ambient Temperature | -10 / 60°C |
