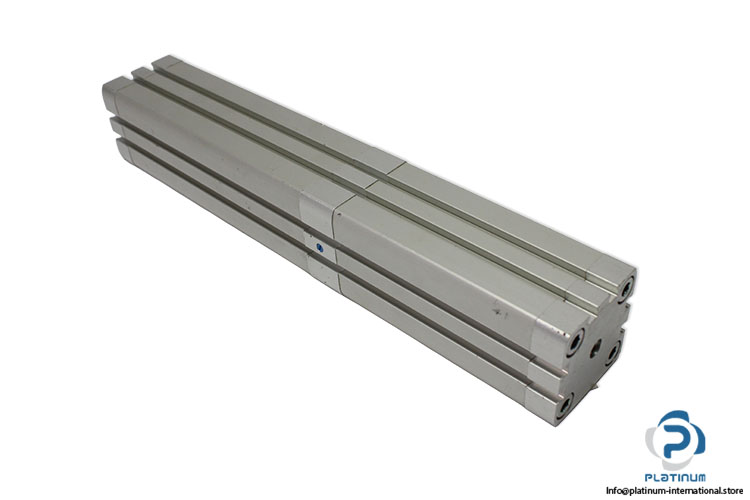

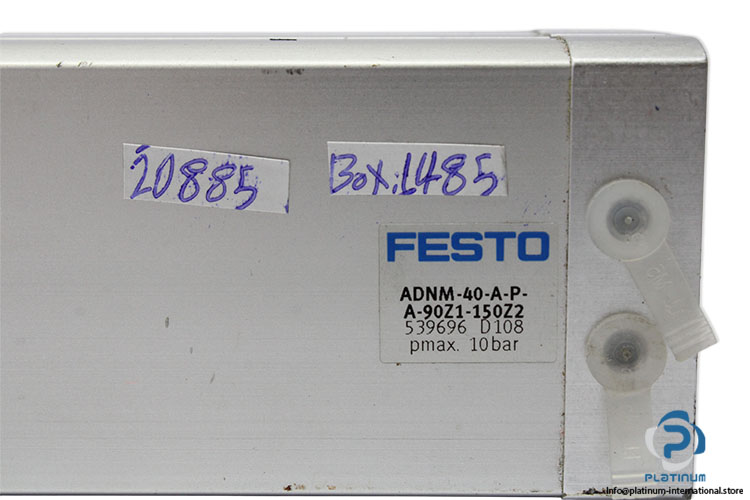

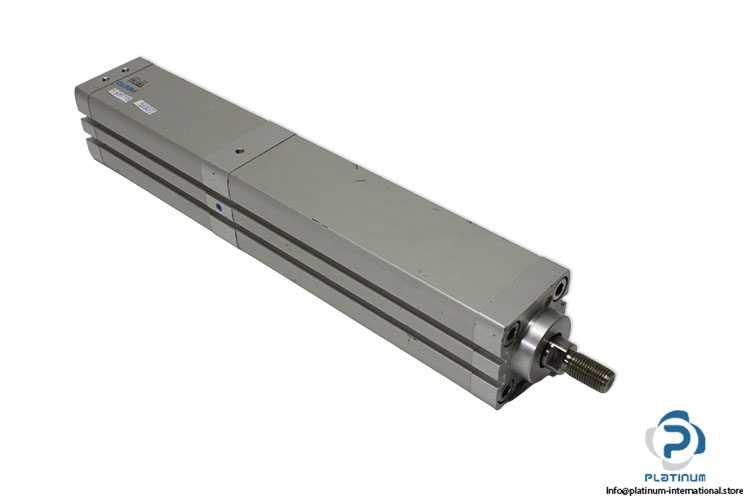

Festo ADNM-40-A-P-A-90Z1-150Z2 Multi Stage Pneumatic Cylinder
جديد
متوفر1 وحدةجاهز للشحن
Multi Stage Pneumatic Cylinder The FESTO ADNM-40-A-P-A-90Z1-150Z2 is a double-acting multi stage pneumatic cylinder with a 40 mm piston and 90/150 mm strokes for industrial automation.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| Part No. | 539696 |
| Media | Compressed Air |
| Stroke Length (1) | 90 mm |
| Stroke Length (2) | 150 mm |
| Piston Diameter | 40 mm |
| Pressure Max. | 10 bar |
| Operation Mode | Double-Acting |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
| Pneumatic Connection | 5 mm |
| Temperature | -20 … 120 °C |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1103373 |
| Weight | 1,94 |
