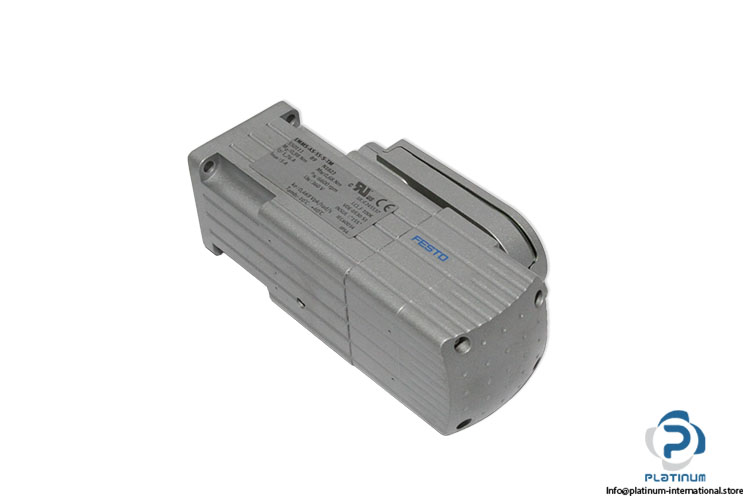

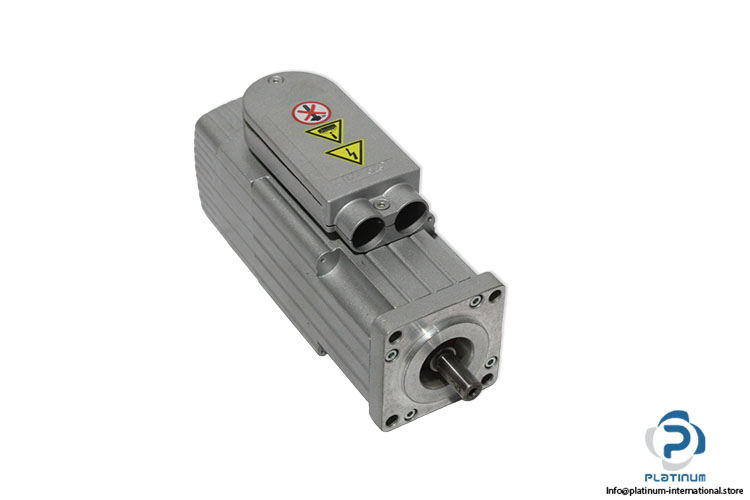

Festo EMMS-AS-55-S-TM Servo Motor
جديد
متوفر1 وحدةجاهز للشحن
Servo Motor The FESTO EMMS-AS-55-S-TM is a high-speed servo motor designed for precise and reliable motion control in industrial automation and positioning applications.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

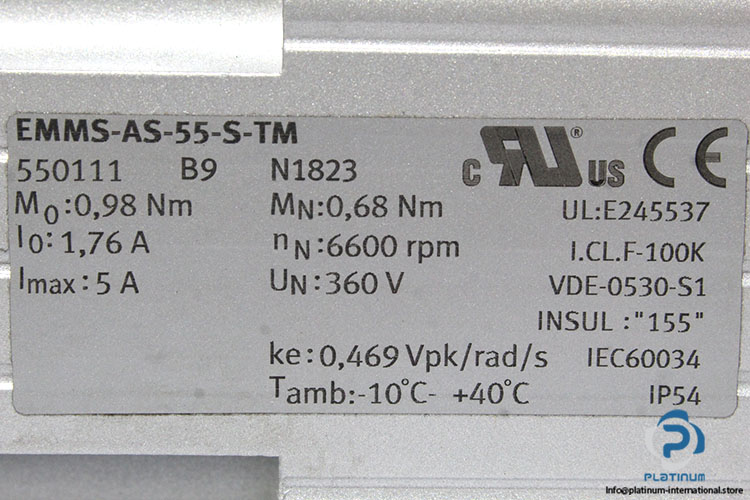

| Part No. | 550111 |
| Rated Torque[Nm] | 0.68 |
| Stall Torque[Nm] | 0.98 |
| Rated Voltage [V] | 360 |
| Max Current [A] | 5 |
| Stall Current [A] | 1.76 |
| Rated Speed [rpm] | 6600 |
| ambient Temperature | - 10?- +40? |
| Standard | IEC60034 |
| Insulation class | F-100K |
| Protection Class | IP54 |
| motor back-EMF constant,ke | 0,469 Vpk/rad/s |
| standard UL | E245537 |

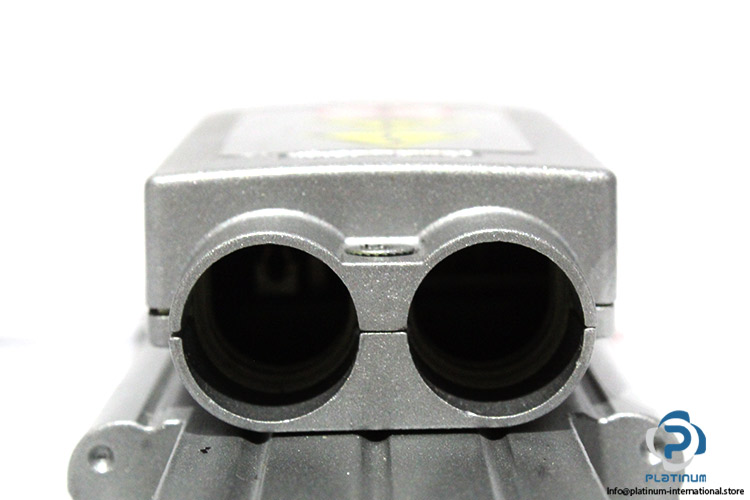

| Connection | Terminal box |
| Stock key | CON-003 |
| Condition | New |
| SKU | 1100435 |
| Weight | 1,8 |
