Hydraulic System Filter Elements

FG PI 3115 PS 10 Filter Element

Name: FG PI 3115 PS 10 FILTER ELEMENT
SKU: 1095364
Availability: LimitedAvailability

fg-pi3115ps100-filter-element-(new-WITHOUT-CARTON)

fg-pi3115ps100-filter-element-(new-WITHOUT-CARTON)-1

جديد

متوفر1 وحدةجاهز للشحن

عنصر فلتر FG Filtrationgroup PI3115PS10 بعناصر زجاجية الألياف، تصفية بدقة 10 ميكرون، وسعة تدفق عالية لأنظمة التصفية الصناعية.

الشركة المصنّعة

SKU

1095364

الفئة

Filter Elements

الحالة

جديد

10 Element FG Fibre filter Filtrationgroup flow Glass High Hydraulic Industrial Micron PI3115PS10

مخزون ضخم

شحن عالمي

دعم من خبراء

جودة مضمونة

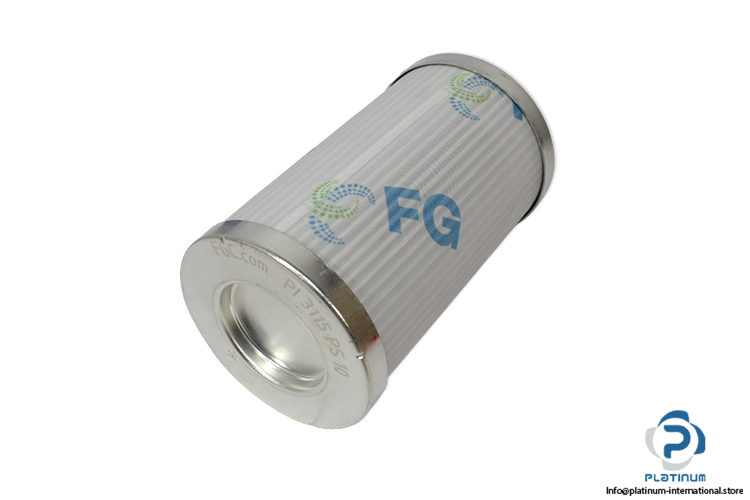

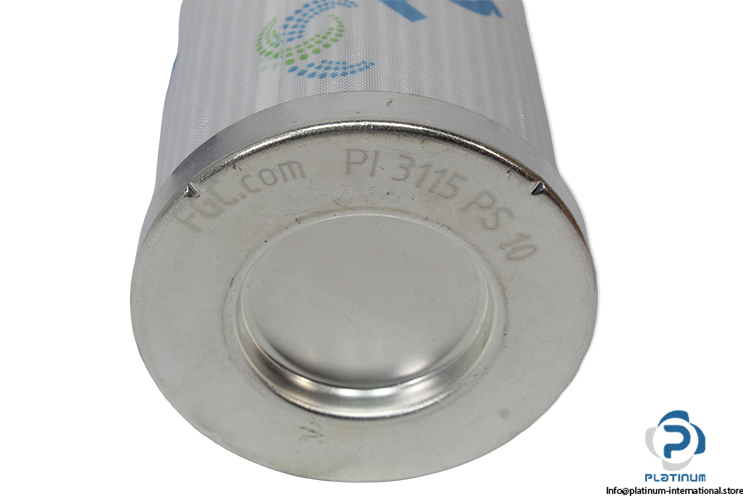

FG Filtrationgroup PI3115PS10 Filter Element

The FG Filtrationgroup PI3115PS10 is a high-performance filter element designed for efficient fluid filtration in industrial systems. Built with glass fibre filter media and a robust plastic end cap, it ensures reliable particle retention and long service life under demanding operating conditions.

Manufacturer: FG Filtrationgroup

Type: Filter Element

Model: PI3115PS10

Part No.: 77680358

Element Type	FG Standard
Nominal Size	150 l/min
Height	142.00 mm
Outer Diameter	84.00 mm
Inner Diameter	47.50 mm
Mounting Diameter	47.50 mm
Differential Pressure Resistance	20 bar
Filter Surface	2,425 cm²
Filter Material Code	PS 10
Filter Material	Glass Fibre
Filter Rating	10.00 µm
End Cap Material	Plastic End Cap PA
