+GF+ 231 800018794 Pneumatic Actuator
جديد
متوفر1 وحدةجاهز للشحن

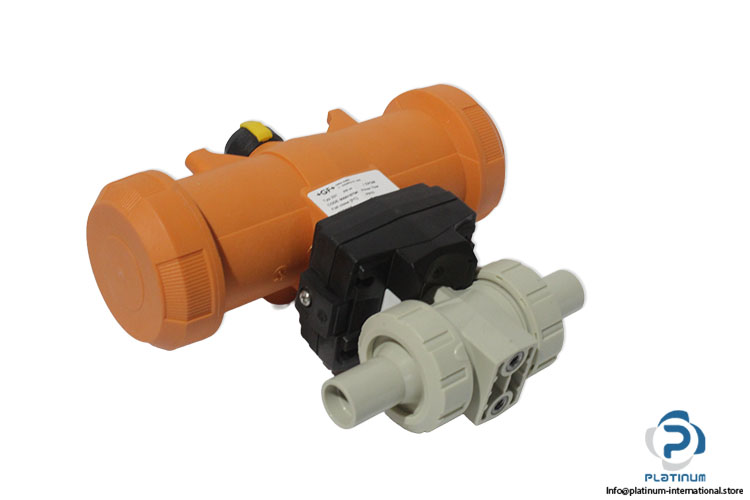

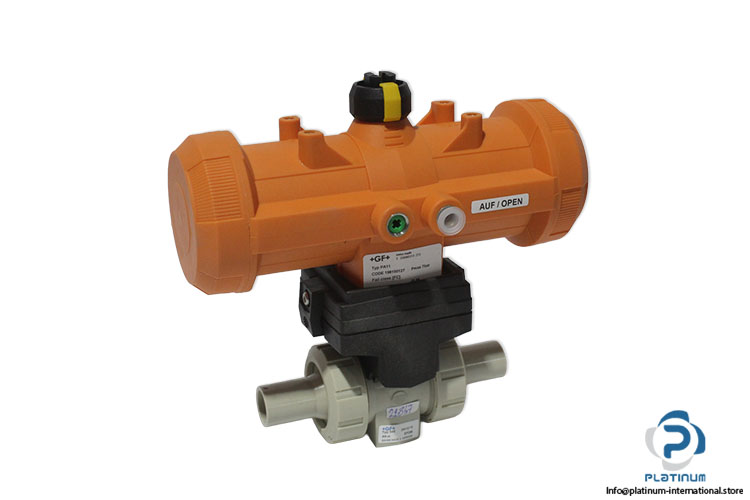

Pneumatic Actuator GF Georg Fischer 231 pneumatic fail-safe actuator with PP-H construction and EPDM seals, supplied with a GF 546 ball valve and PA11 pneumatic actuator.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

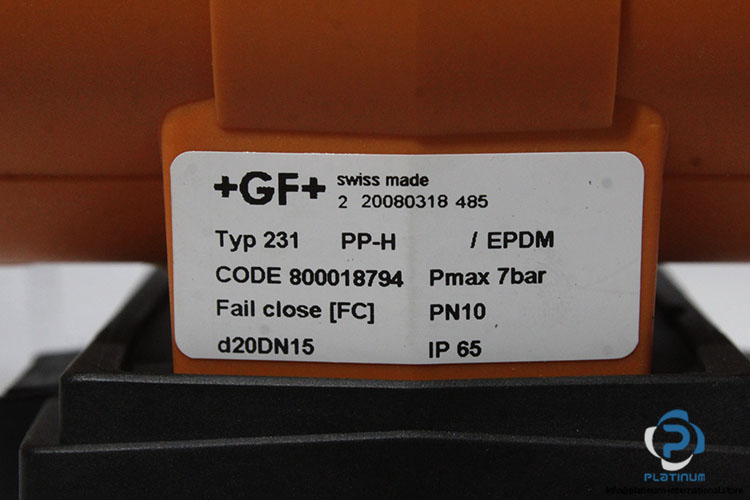

| Part No. | 800018794 |
| Serial No. | 2 20080318 485 |
| Actuation | Pneumatic Fail-Safe to Close (FC) |
| Nominal Pressure | 10 bar |
| Pressure | 5.6 … 7 bar |
| Diameter | 20 - 15 mm |
| Material | PP-H |
| Seals | EPDM |

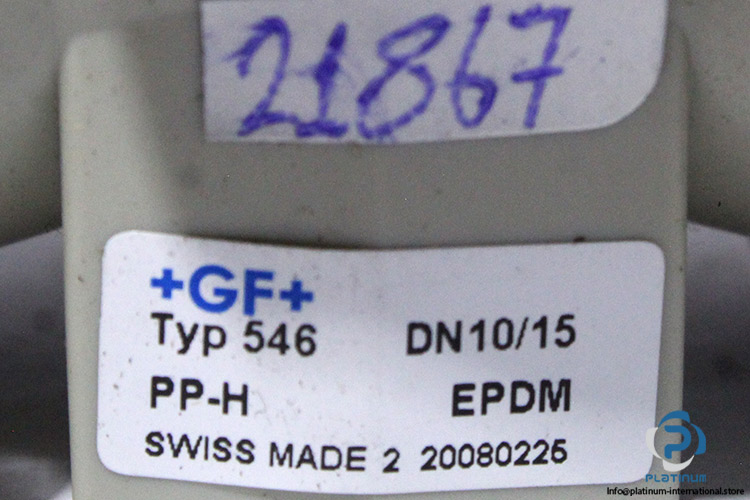

| Attachment | +GF+ 546 DN10/15 BALL VALVE |
| Ball Valve Manufacturer | GF GEORG FISCHER |
| Attachment Type | Ball Valve |
| Ball Valve Model | 546 DN10/15 |
| Ball Valve Ref. No. | 2 20080225 |
| Ball Valve Function | 2/2-Way |
| Ball Valve Material | PP-H |
| Ball Valve Seals | EPDM |
| Ball Valve Diameter | 40 mm |

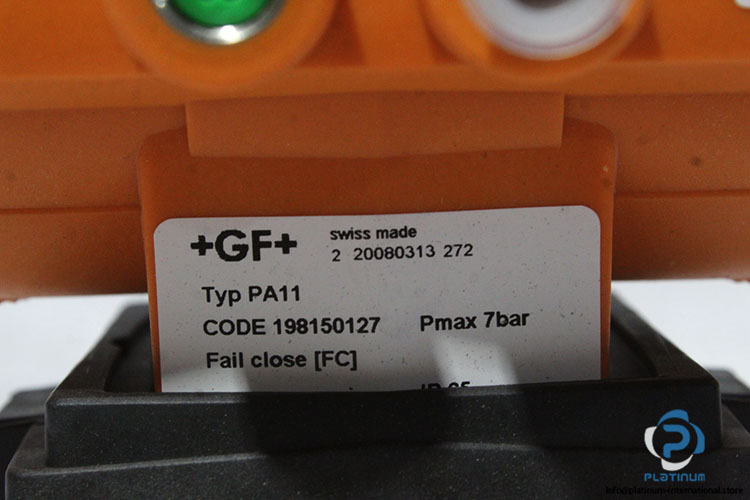

| Attachment 2 | +GF+ PA11 198150127 PNEUMATIC ACTUATOR |
| Pneumatic Actuator Manufacturer | GF GEORG FISCHER |
| Attachment 2 Type | Pneumatic Actuator |
| Pneumatic Actuator Model | PA11 |
| Pneumatic Actuator Part No. | 198150127 |
| Pneumatic Actuator Serial No. | 2 20080313 272 |
| Pneumatic Actuator Actuation | Pneumatic Fail-Safe to Close (FC) |
| Pneumatic Actuator Pressure Max. | 7 bar |
| Pneumatic Actuator Diameter | 63 - 50 mm |
| Pneumatic Actuator Material | PP-H |
| Pneumatic Actuator Seals | EPDM |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1103648 |
| Weight | 1,66 |
