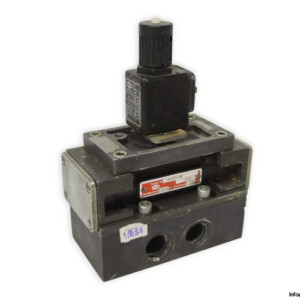

Herion S6VH10G0200016OV Directional Control Valve
جديد
متوفر1 وحدةجاهز للشحن
150,00$
Directional Control Valve IMI HERION NG6 4/2 way directional control valve with electrical actuation, 24 VDC coil, and high-pressure capacity up to 315 bar for hydraulic systems.
001020243154/26barCastControlDirectionalElectricGHerionHighHydraulicIMIIndustrialIronng6ØPlatePressureS6VH10subVValveVDCWay
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| CAT NO | 5203941 |
| Nominal Size | NG 6 |
| FUNCTION | 4/2 WAY VALVE |
| Type of Actuation | Electrically |
| Max. Working pressure (Port P, A, B) | 315 bar |
| Max. Pressure (Port T) | 160 bar |
| Hydraulic Connection | Sub-Plate |
| Fluid Temperature Range | 0 ….. +70 °C |
| HOUSING | CAST IRON |
| Nominal voltage per Coil | 24 VDC |
| Attached with | 072 9992 solenoid coil |
| Condition | New |
| SKU | 974568 |
| Weight | 1,85 |
