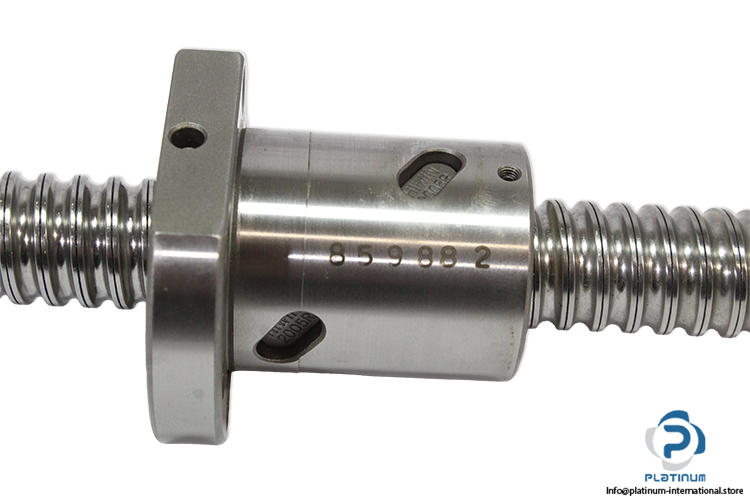

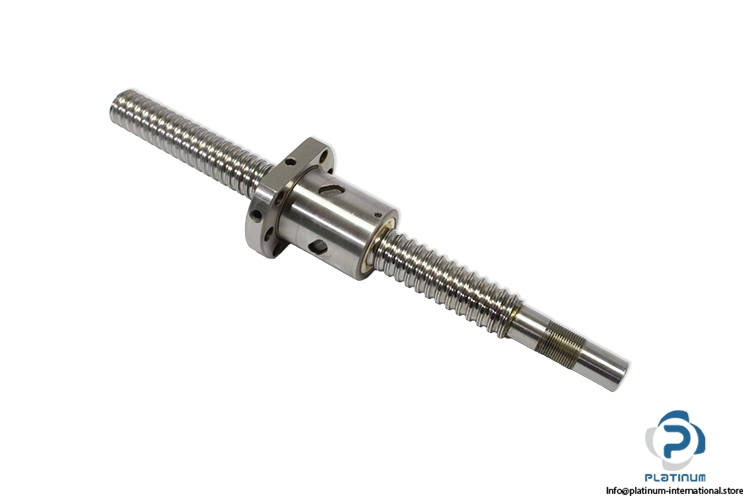

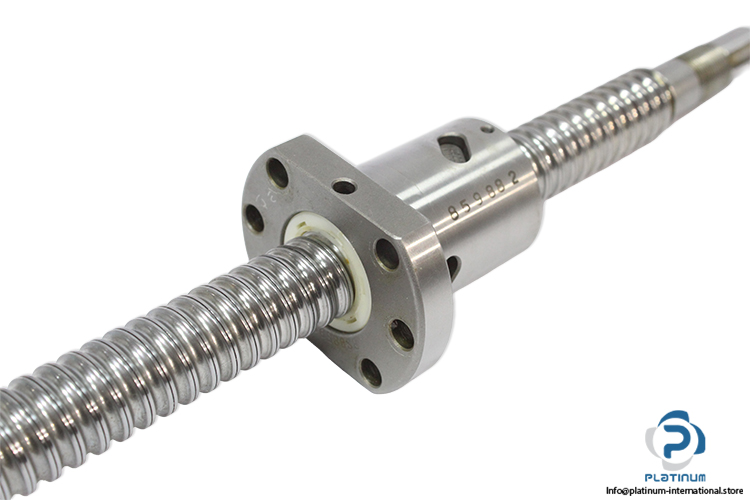

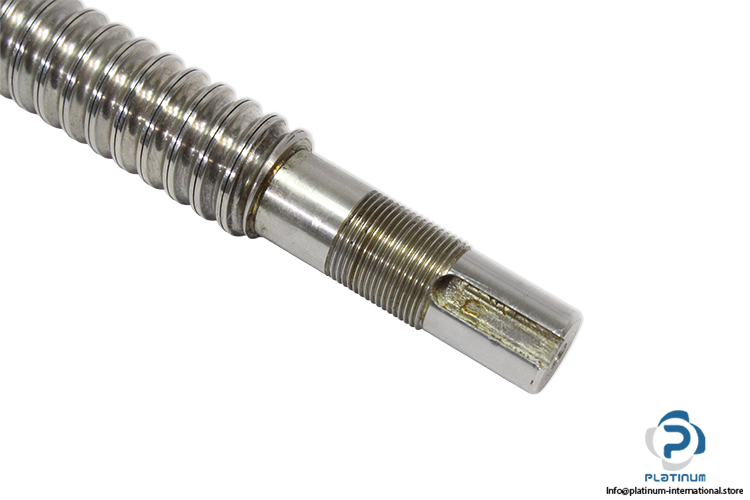

Hiwin R20-5T4-FSI Ball Screw
جديد
متوفر6 وحداتجاهز للشحن
Ball Screw HIWIN precision ball screw with C5 accuracy, right-hand thread, and 20 mm nominal diameter, designed for linear motion, CNC machinery, and industrial automation systems.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| MNR | R20-5T4-FSI |
| Code | R20-5T4-FSI-PL-0215-0265-C5-615A/8 5 9 98 2/32623003050 |
| Size | 20x5R |
| Nominal Diameter | 20 mm |
| Lead P | 5 |
| Ball Diameter | 3.175 mm |
| Direction of Lead | Right-Hand Thread |
| Nut outer diameter | 36 mm |
| Flange diameter | 58 mm |
| Flange thickness | 10 mm |
| Cutting Flange Width | 44 mm |
| Nut length | 52 mm |
| Threaded length | 215 mm |
| Total screw length | 265 mm |
| Dynamic Load Rating C | 938 kfg |
| Static Load Rating C0 | 1993 kfg |
| Accuracy | C5 |
| Stock key | JO-004 |
| Condition | New |
| SKU | 1100065 |
| Weight | 0,82 |
