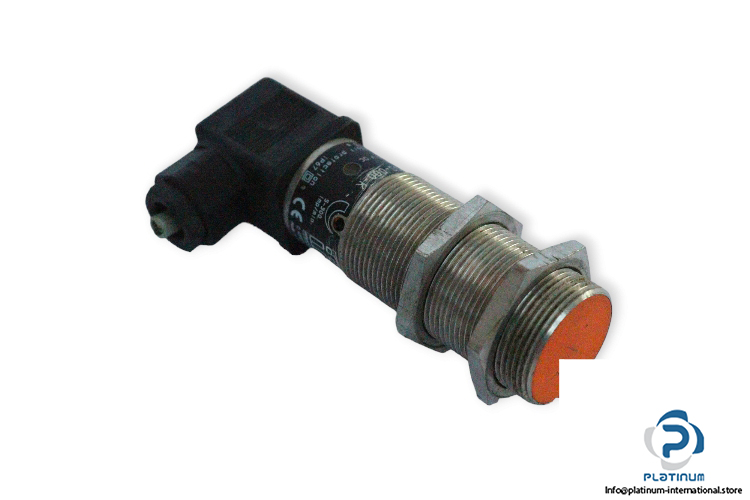

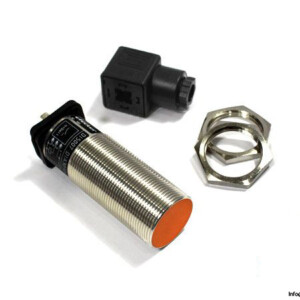

IFM DI5007 Speed Sensor

Manufacturer: IFM
Type: Speed Sensor,Compact Evaluation Unit For Speed Monitoring
Model: DI5007
MNR: DIA3010-ZPKG/SS-000-K


Application: Reliable non-contact monitoring of the rotational speed with regard to underspeed
Sensing Range: 10 mm
Supply Voltage: 10 … 36 V DC
Setting range: 5 … 300 Imp/min
Electrical Design: PNP
Switching Output: Normally  open
Operating Current: 250 mA
Connector Type: Valve plug
Dimensions: M30,81 mm
Sensing Face Material: PBT
Housing Material: Brass special coating
Operating Temperature: -25 … 80°C
Enclosure Rating: IP67
