Sensors & Measurement Sensors

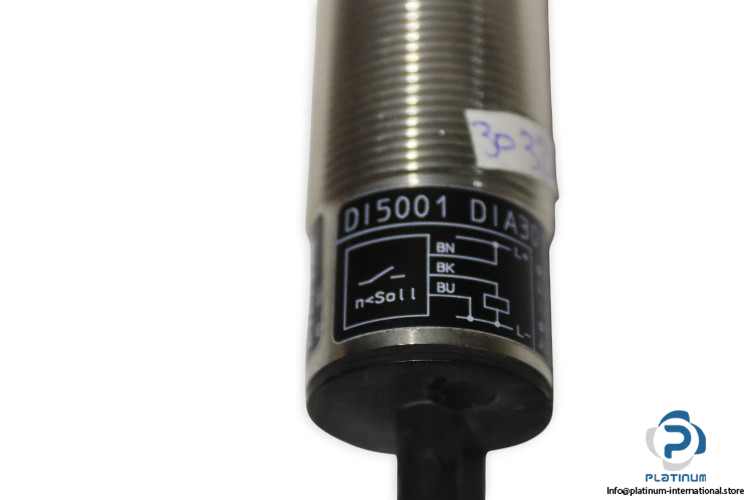

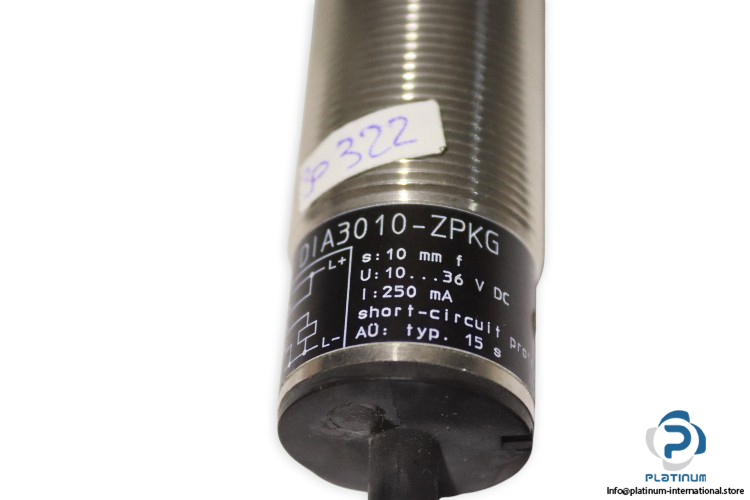

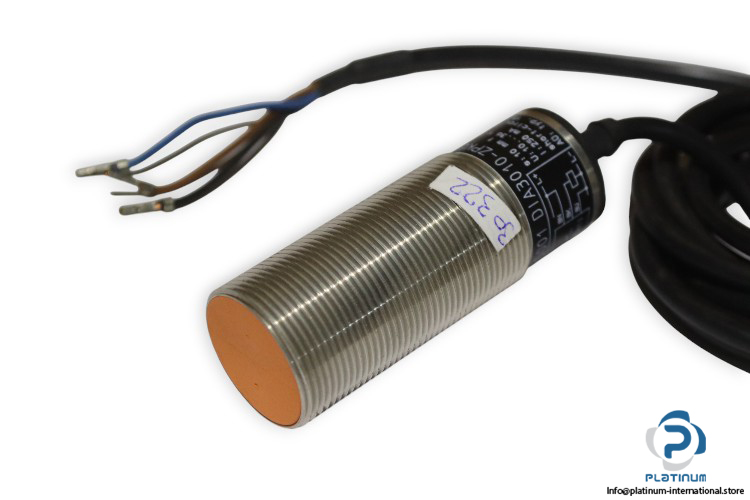

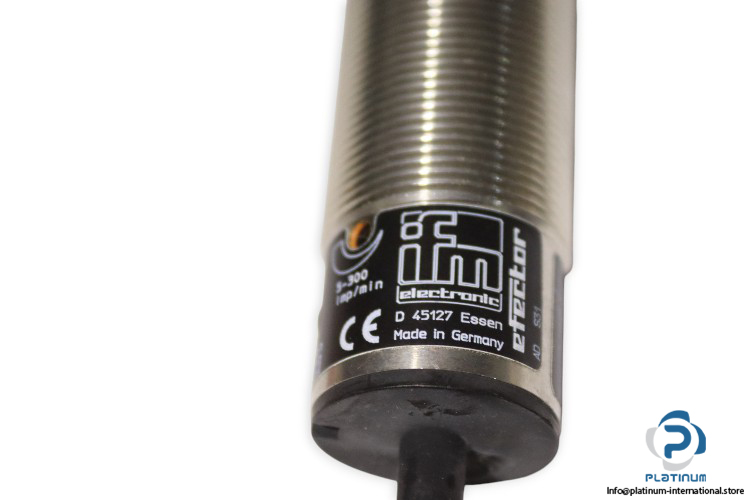

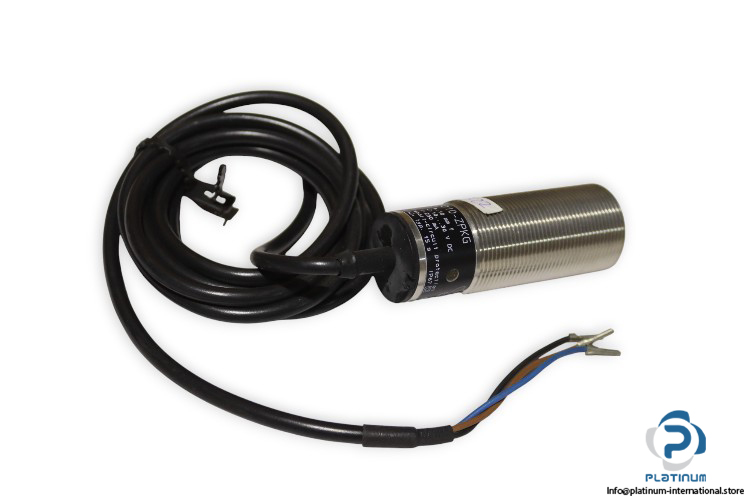

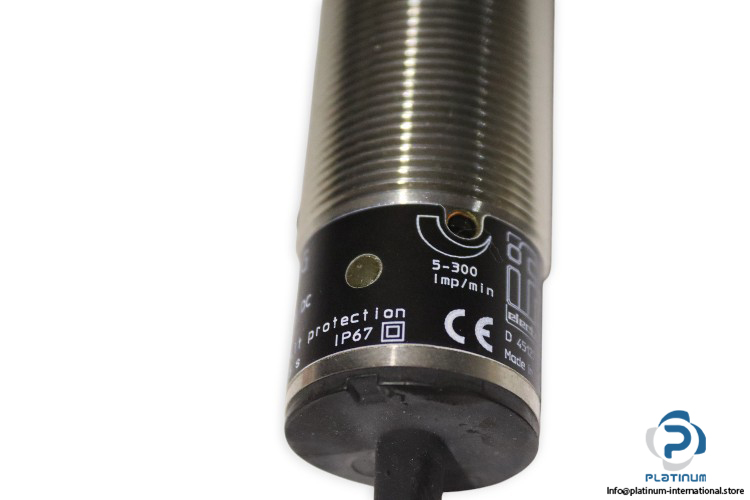

IFM DIA3010-ZPKG Compact Speed Sensor AND Evaluation Module

Name: IFM DIA3010-ZPKG COMPACT SPEED SENSOR AND EVALUATION MODULE
SKU: 1074840
Availability: LimitedAvailability

Ifm-dia3010-zpkg-compact-speed-sensor-and-evaluation-module(new)

Ifm-dia3010-zpkg-compact-speed-sensor-and-evaluation-module(new)-1

Ifm-dia3010-zpkg-compact-speed-sensor-and-evaluation-module(new)-2

Ifm-dia3010-zpkg-compact-speed-sensor-and-evaluation-module(new)-3

Ifm-dia3010-zpkg-compact-speed-sensor-and-evaluation-module(new)-4

Ifm-dia3010-zpkg-compact-speed-sensor-and-evaluation-module(new)-5

جديد

متوفر2 وحداتجاهز للشحن

SPEED SENSOR

The IFM DIA3010-ZPKG is a compact DC PNP speed sensor with 10 mm sensing range, 10 / 36 VDC operation, and IP67 protection. Built with brass coating and PBT housing for durability in harsh environments.

الشركة المصنّعة

IFM

SKU

1074840

الفئة

Sensors

الحالة

جديد

10mm brass Coated Compact dc DI5001 DIA3010-ZPKG Evaluation Housing ifm Industrial IP67 Module NO Output PBT PNP Pocan Range Sensor Speed

مخزون ضخم

شحن عالمي

دعم من خبراء

جودة مضمونة

IFM DIA3010-ZPKG COMPACT SPEED SENSOR AND EVALUATION MODULE

The IFM DIA3010-ZPKG is a compact speed sensor and evaluation module engineered for reliable detection and monitoring in industrial applications. With durable housing, wide operating voltage, and IP67 protection, it ensures long-lasting performance in demanding environments.

Manufacturer: IFM

Type: Compact Speed Sensor and Evaluation Module

Model: DIA3010-ZPKG

MRN: DI5001

Dimensions	M 30 x 1,5
Sensing Range	10 mm
Operating Voltage	10 / 36 VDC
Current Rating	250 mA
Electrical Design	DC PNP
Switching Output	NO
Connector Type	Cable
Housing Material	Brass special coating; PBT (Pocan)
Operating Temperature	-25 / +80 °C
Degree of Protection	IP67
Marking	15 S
