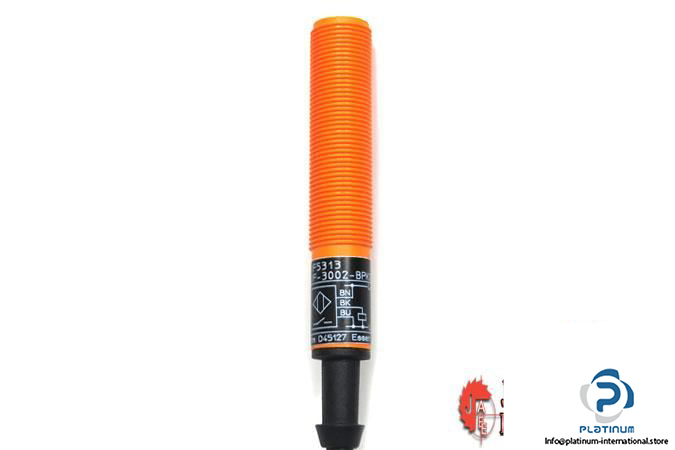

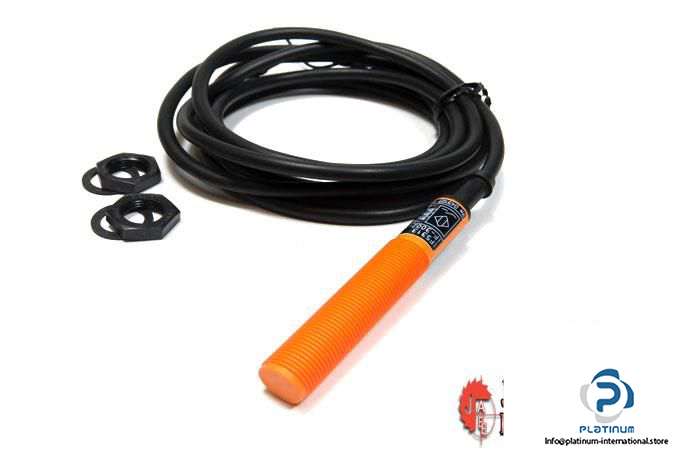

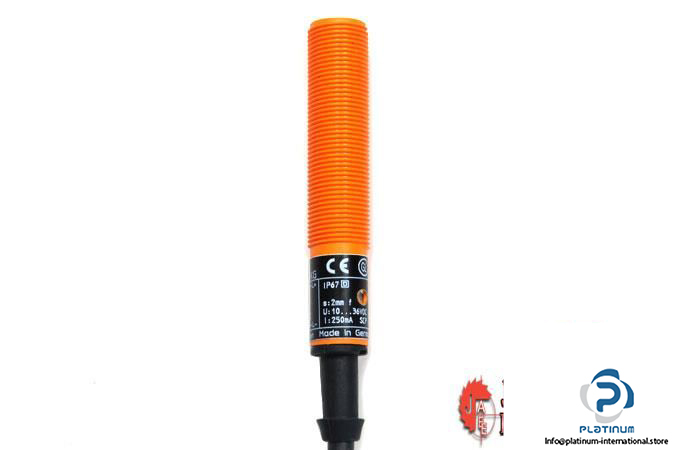

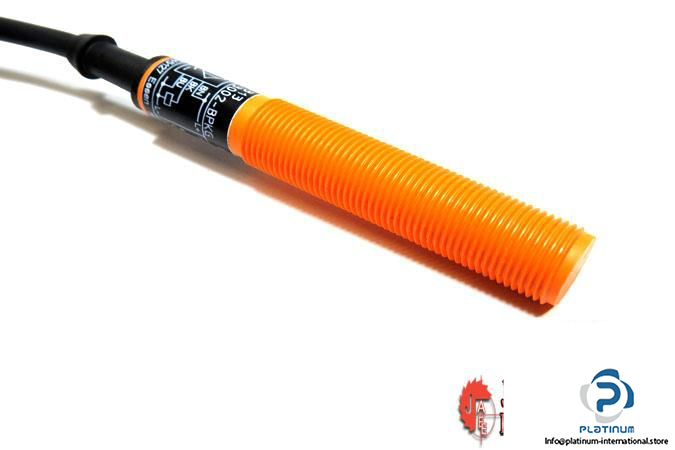

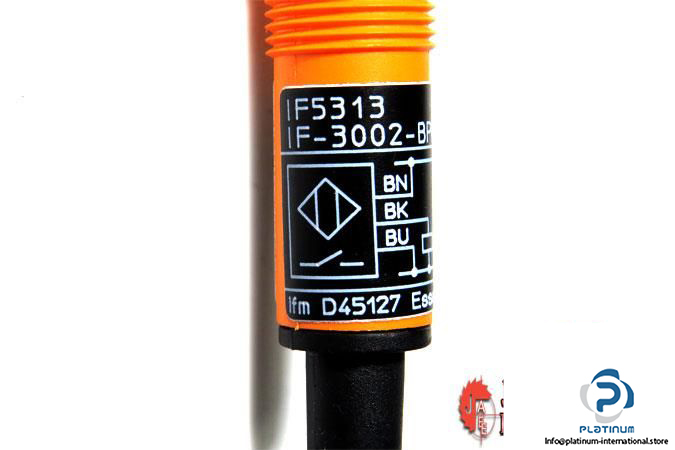

IFM IF5313 Inductive Sensor

Manufacturer: IFM

Type: INDUCTIVE SENSOR

Part No.: IF5313

MRN: IF-3002-BPKG

Sensing Range: 2 mm

Real Sensing Range: 2 ± 10 % mm

Operating Distance: 0 … 1.6 mm

Operating Voltage: 10 … 55 V DC

Voltage Drop: 2.5 V DC

Switching Output Current: 250 mA DC

Current Consumption: 15 mA

Switching Frequency: 800 Hz DC

Electrical Design: PNP

Output Function: Normally Open

Connector Type, Length: PVC Cable, 2 m

Protection Class: II

Enclosure Rating: IP67

Housing: Threaded Type

Ambient Operating Temperature: -25 … 80°C

Diameter, Housing Length: 12, 71 mm

Material: PBT

Mounting: Flush Mountable

Supplied Accessories: 2 lock nuts

Weight: 88.5 g
