IFM IG5842 Inductive Sensor
جديد
متوفر3 وحداتجاهز للشحن
33,33$
مستشعر تحريضي IFM IG5842 مستشعر تحريضي (IGA4008-CPKG/US-104) بمدى استشعار 8 مم، إخراج تكميلي PNP، تصنيف IP65، غلاف نحاسي ملولب، ووصلة M12 بأربعة دبابيس.
4-Pin8brassComplementaryifmIG5842IGA4008-CPKG/US-104InductiveIndustrialIP65M12mmNon-flushPNPProximitySensorThreaded
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

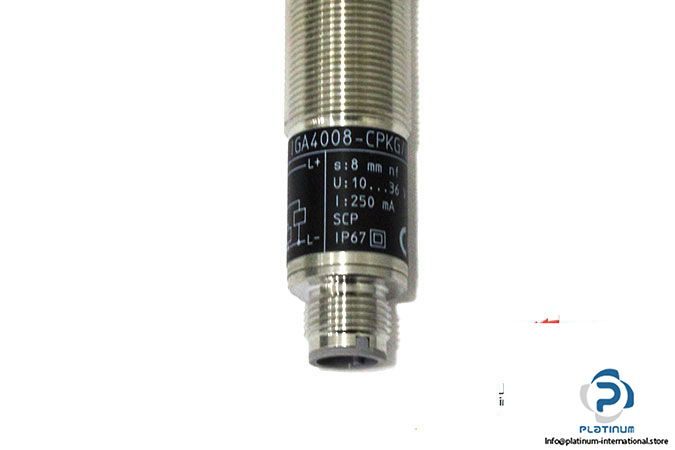

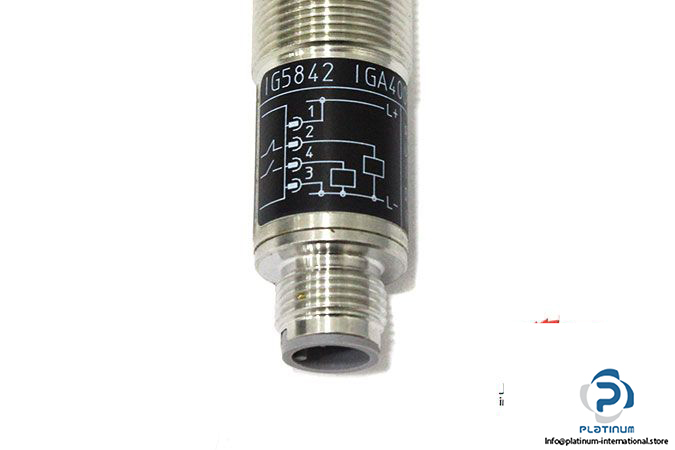

IFM IG5842 Inductive Sensor (IGA4008-CPKG/US-104)
The IFM IG5842 (IGA4008-CPKG/US-104) is a high-performance inductive sensor designed for reliable object detection in industrial environments. With an 8 mm sensing range, complementary PNP output, robust brass housing, and IP65 protection, it offers dependable performance and durability in automation systems.
Manufacturer: IFM
Type: Inductive Sensor
Part No.: IG5842
Model: IGA4008-CPKG/US-104
| Sensing Range | 8 mm |
| Operating Distance | 0 / 6.48 mm |
| Operating Voltage | 10 / 30 V DC |
| Current Consumption | < 10 mA |
| Switching Frequency DC | 300 Hz |
| Switching Output Current | 200 mA DC |
| Voltage Drop Max. | 2.5 V |
| Electrical Design | PNP |
| Output Function | Complementary |
| Protection Class | II |
| Enclosure Rating | IP65 |
| Housing | Threaded Type |
| Electrical Connection | M12 4-Pin |
| Ambient Operating Temperature | -25 / 80 °C |
| Diameter / Housing Length | 18 mm / 80 mm |
| Material | Brass white bronze coated; Sensing Face: PBT orange |
| Mounting | Non-flush mountable |

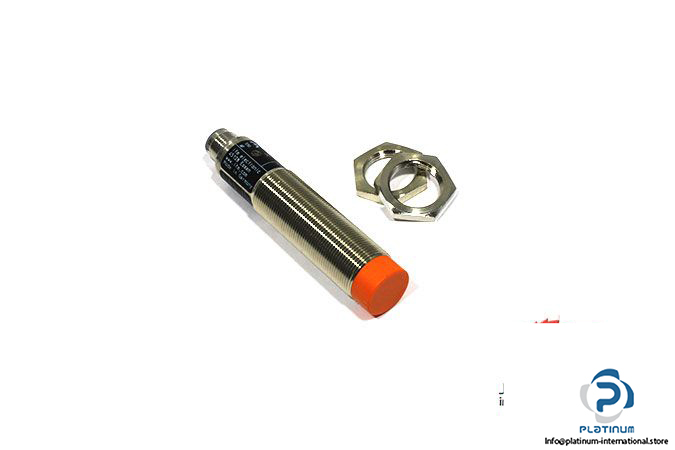

| Supplied Accessories | 2 lock nuts |
