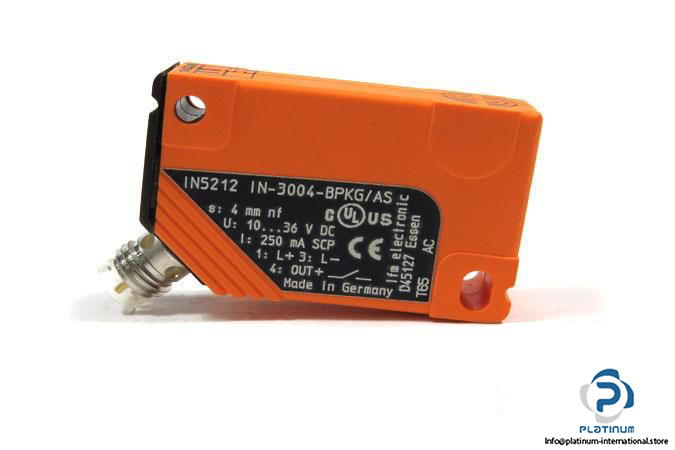

IFM IN5212 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IN5212

MRN: IN-3004-BPKG

Sensing Range: 4 mm

Real Sensing Range: 4 ± 10% mm

Operating Distance: 0 … 3.25 mm

Operating Voltage: 10 … 36 V DC

Switching Output Current: 250 mA DC

Switching Frequency: 1300 Hz

Electrical Design: PNP

Output Function: Normally Open

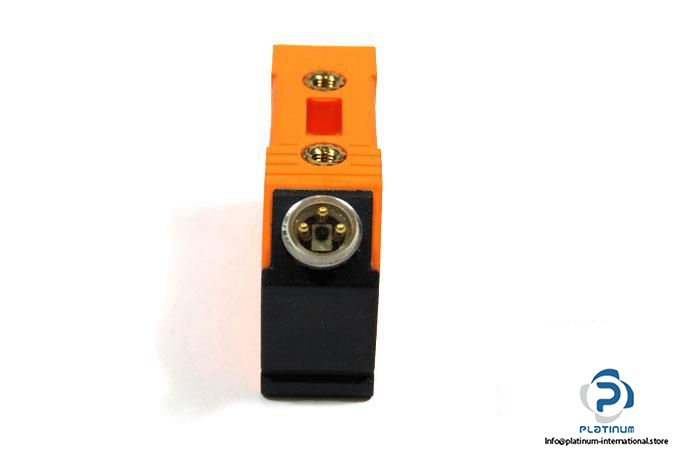

Connector Type: M18 Connector

Protection Class: III

Enclosure Rating: IP65

Housing: Rectangular

Ambient Operating Temperature: -25 …80°C

Dimensions: 40 x 12 x 26 mm

Material: PBT

Mounting: Non-Flush Mountable
