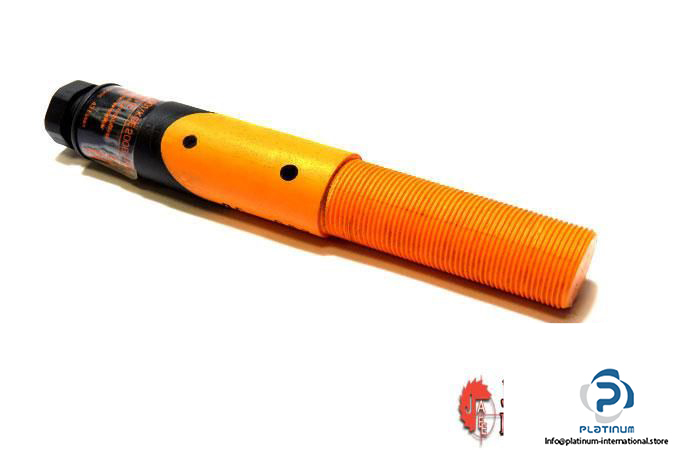

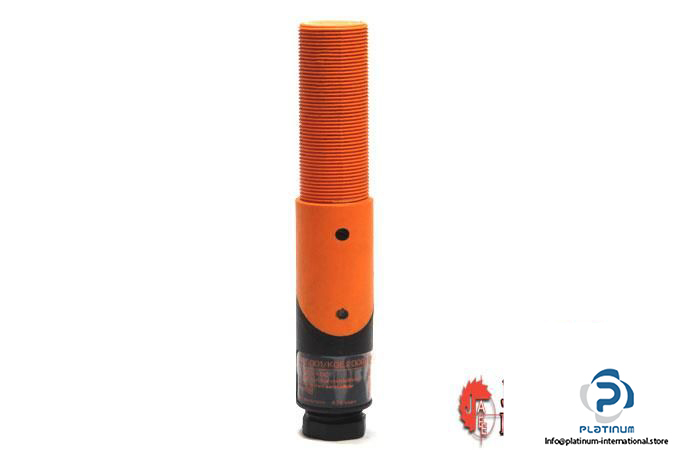

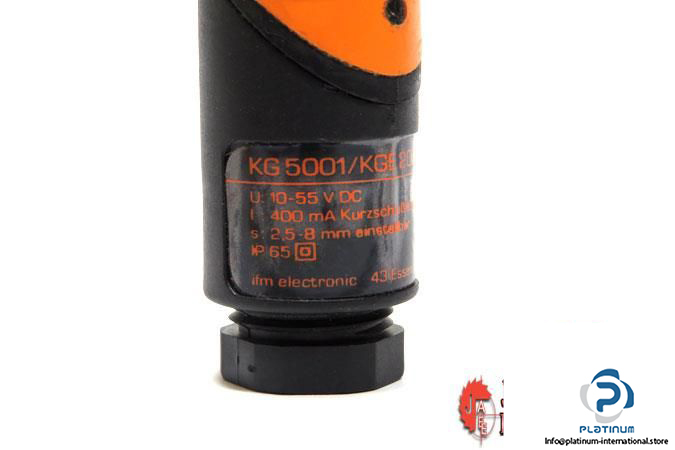

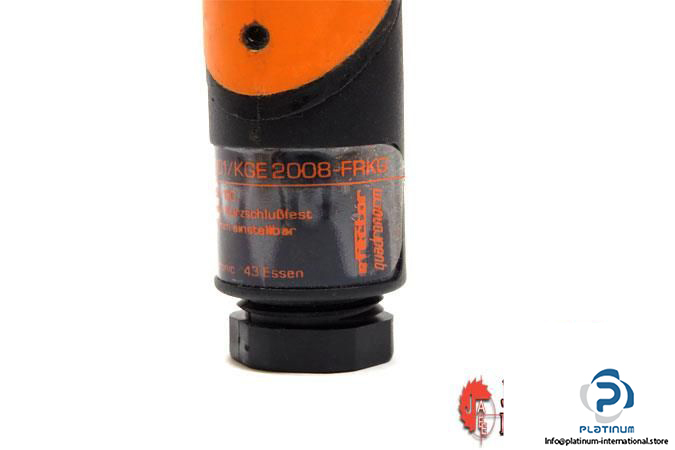

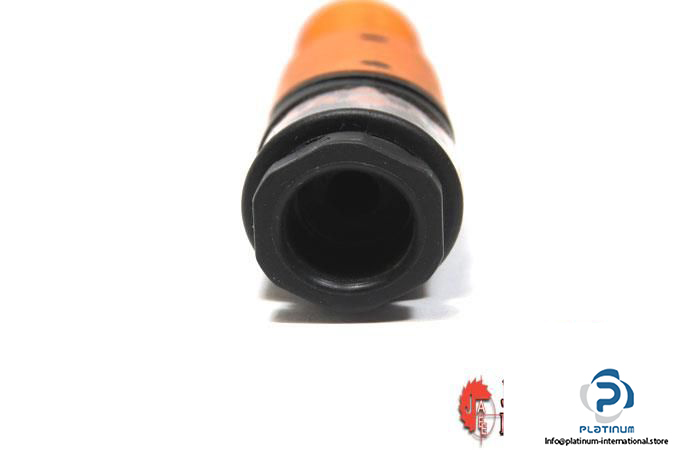

IFM KG5001 Capacitive Sensor

Manufacturer: IFM

Type: CAPACITIVE SENSOR

Part No.: KG5001

MRN: KGE2008-FRKG

Sensing range: 8 mm

Real sensing range: 8 ± 10 % mm

Operating distance: 0… 6.5 mm

Operating Voltage: 10 … 55 V DC

Minimum load current: 4 mA

Voltage drop max.: 4.6 V DC

Electrical design: PNP/NPN

Output function: normally open / closed; (selectable)

Switching frequency DC: 50 Hz

Connection: Cable gland,M16 X 1.5

Protection Class: II

Enclosure rating: IP65

Ambient operating temperature: -25 … 80°C

Housing: Threaded type

Diameter, Housing length: 18, 110 mm

Material: PBT; end cap: PC

Mounting: Non-flush mountable

Condition: Used
