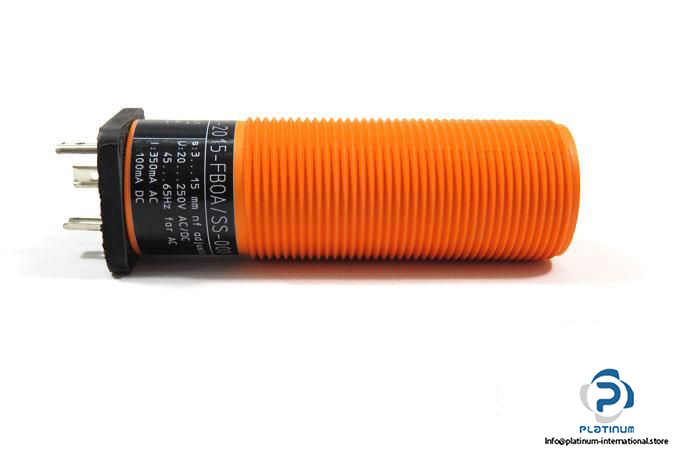

IFM KI0040 Capacitive Sensor

Manufacturer: ifm

Type: CAPACITIVE SENSOR

Part No.: KI0040

MRN: KI-2015-FBOA/SS-000-K

Sensing Range: 15 mm

Real Sensing Range: 15 ± 10% mm

Operating Distance: 12.1 mm

Operating Voltage (AC,DC): 20 … 250 V AC/DC ,45 … 65 Hz

Voltage Drop max. (AC,DC):: 2.5 V DC

Switching output Current (AC,DC): 250 mA AC, 250 mA DC

Switching frequency (AC,DC):  25,40 Hz

Output Function: Normally open, normally closed(selectable)

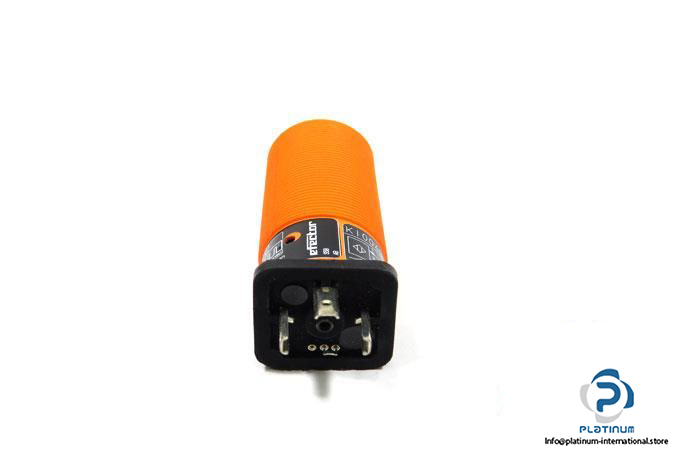

Connector type: 1 x valve plug type

Enclosure rating: IP65

Housing: Threaded type

Ambient Operating temperature: -20 … 70°C

Diameter, Housing length: 30 , 92 mm

Material: PBT

Mounting: Non-flush mountable

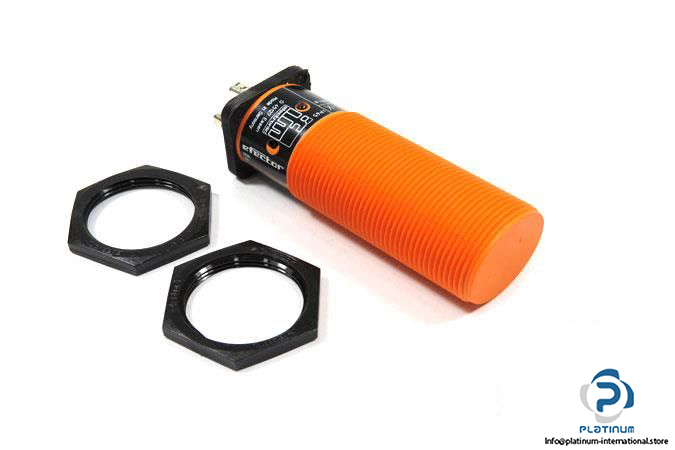

Supplied accessories:  2 lock nuts

Weight: 104 g

Condition: New
