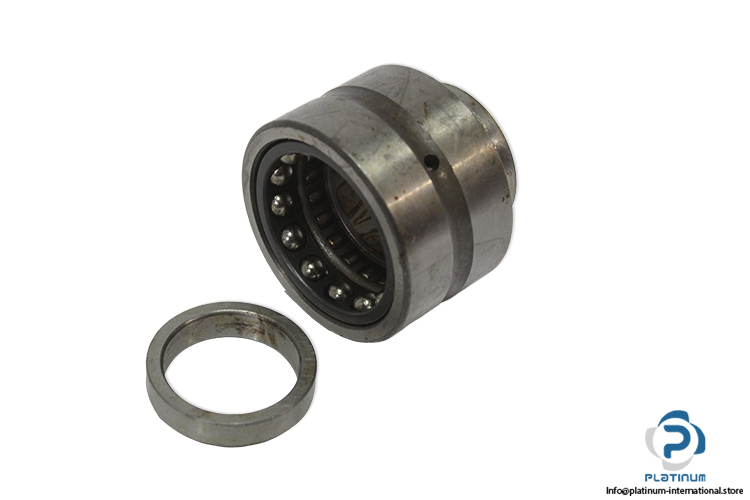

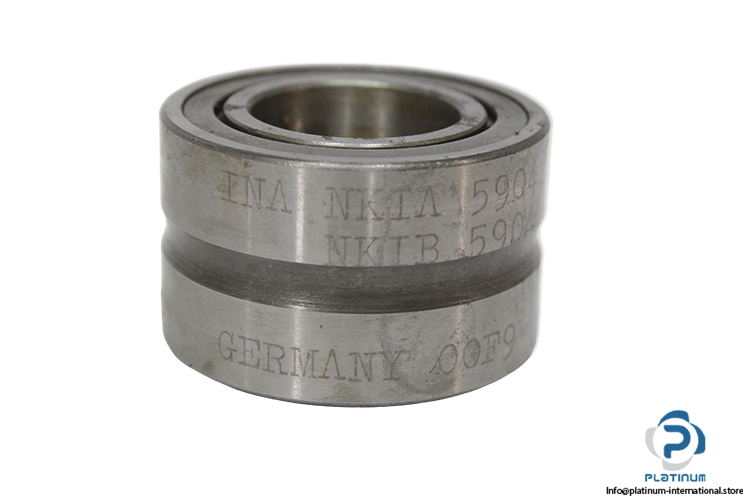

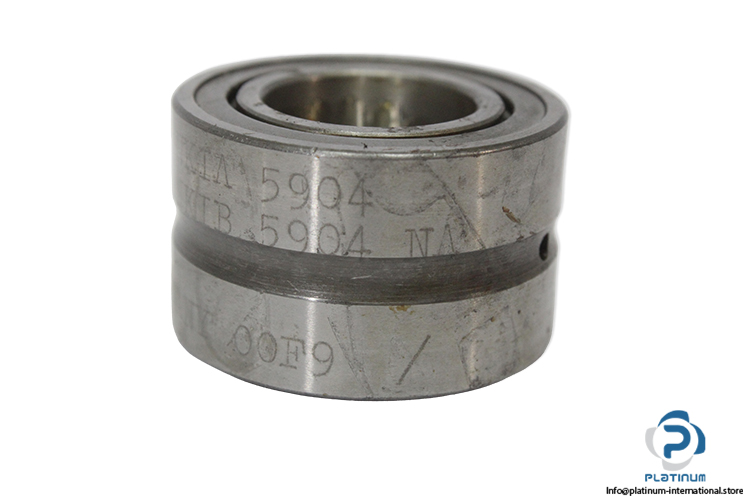

INA Nkia/Nkib 5904 NA Combined Needle Roller/Angular Contact Ball Bearing
جديد
متوفر1 وحدةجاهز للشحن
Combined Needle Roller / Angular Contact Ball Bearing INA NKIA/NKIB5904 NA Bearing is a precision combined bearing with 20 mm bore, high radial and axial load capacity, speeds up to 17200 rpm, and operating temperature from -30 to 120°C.
AngularAxialBallbearingCombinedContactHighInaIndustrialNANeedleNkiaNKIB5904PrecisionradialRollerSchaefflerSpeed
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| Bore Diameter d | 20 mm |
| Outer Diameter D | 37 mm |
| Width B | 25 mm |
| Dynamic Load Rating (radial) | 23,700 |
| Static Load Rating (radial) | 25,500 N |
| Dynamic Load Rating (axial) | 4,900 N |
| Static Load Rating (axial) | 7,400 N |
| Fatigue Load Limit (radial) | 4,700 N |
| Fatigue Load Limit (axial) | 335 N |
| Reference Speed | 14000 rpm |
| Limiting Speed | 17200 rpm |
| Operating temperature | -30 to 120°C |
| Condition | New |
| SKU | 1097265 |
| Weight | 0,10 |
