Interroll DC-EC200/EC300 (13:1) Roller Drive Controller
جديد
متوفر1 وحدةجاهز للشحن
وحدة تحكم محرك رولر للطاقة المعيبة Interroll / Fault Power Roller Drive Controller DC-EC200/EC300(13:1) بجهد اسمي 24 فولت DC، تيار مستمر مستمر 4 A، وحماية IP54/IP66. مثالية للتحكم الموثوق في المحرك في أنظمة الناقل الأسطواني.
244aAmbientApplicationContinuousControlControllerConveyorCurrentdcDriveFaultIndustrialInterrollIP54IP66MechanicalmotorNominalperformancePowerRangeRollerSystemTemperatureVvoltage
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

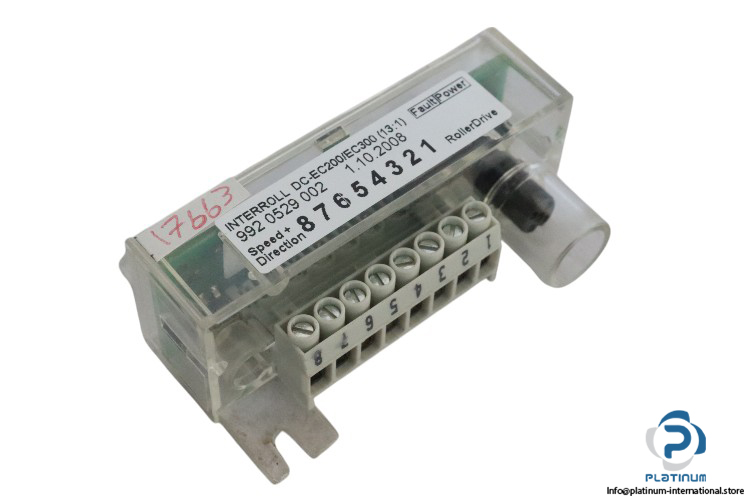

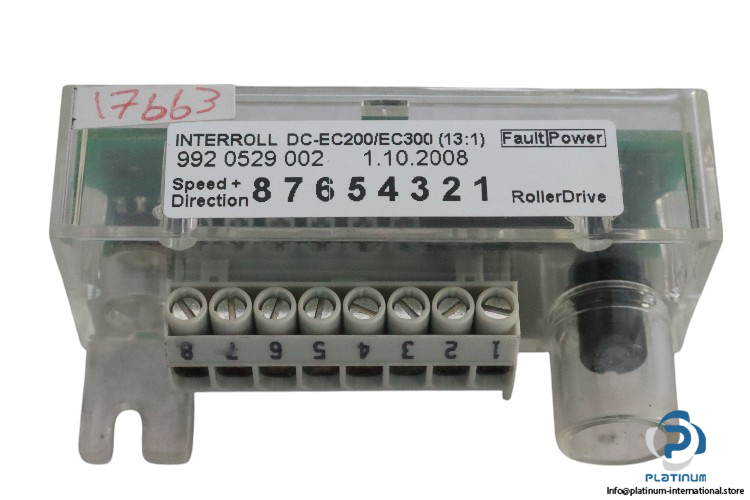

Interroll / Fault Power Roller Drive Controller DC-EC200/EC300(13:1)
Interroll / Fault Power Roller Drive Controller DC-EC200/EC300(13:1) is designed for efficient and reliable motor control in roller conveyor systems. It offers precise control of roller drives with high power output, ensuring smooth and consistent performance in various industrial applications. Below are the key technical specifications:
- Manufacturer: Interroll / Fault Power
- Type: Roller Drive Controller
- Model: DC-EC200/EC300(13:1)
- Part No. 1: 87654321
- Part No. 2: 992 0529 002
Technical Data:
- Nominal Voltage: 24 V DC
- Voltage Range: 18 to 28 V DC
- No Load Current: 0.4 A
- Peak Current Max.: 5.5 A
- Continuous Current Input: 4 A
- Mechanical Performance: 25 W
- Protection Classification: IP54 (IP66)
- Ambient Temperature for Operation: 0 to 40 °C
- Ambient Temperature Changes: Max. 1 °K/min; 3 h; two cycles
- Installation Altitude Above Sea Level: Max. 1000 m (Max. 3300 ft)
