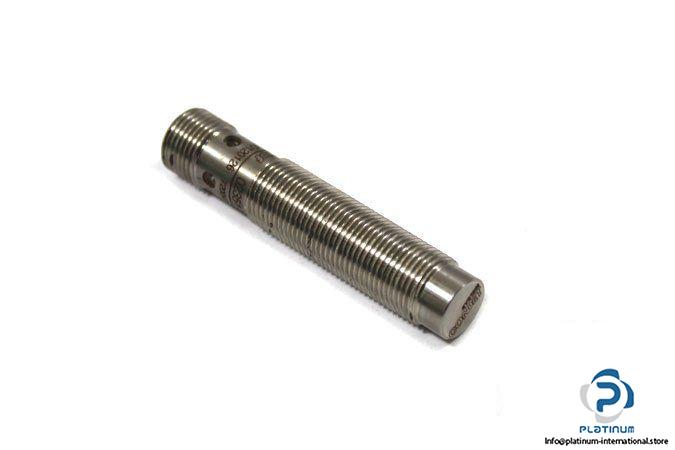

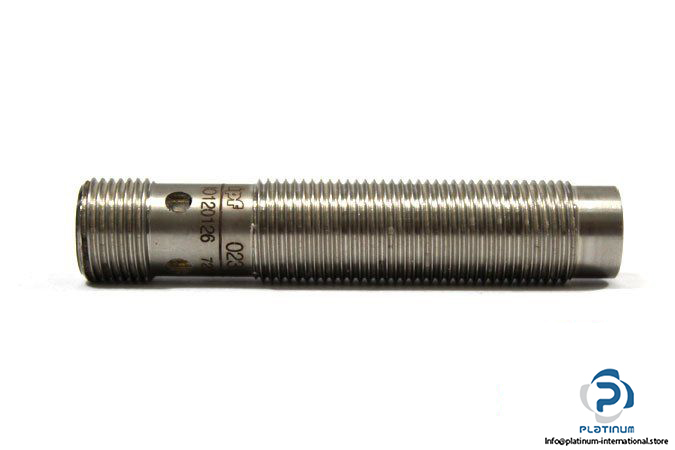

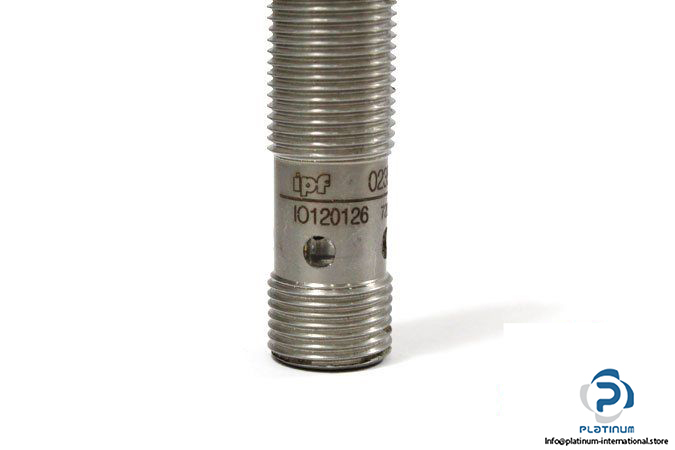

IPF IO120126 Inductive Sensor

Manufacturer: ipf

Type:  INDUCTIVE SENSOR

Model No.: IO120126

Sensing Range: 10 mm

Operating Voltage: 10 … 30 V DC

Operating Current: 200 mA

Switching frequency: 400 Hz

Electrical Design: PNP

Switching Output: Normally open

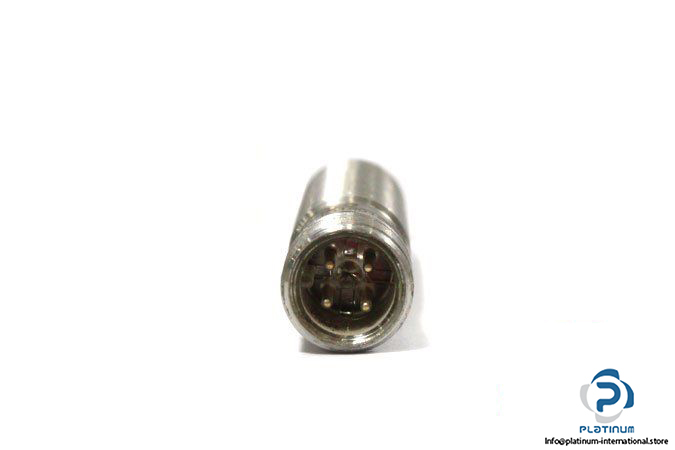

Connector Type: M12 Connector, 4-pin

Enclosure Rating: IP67

Ambient Operating Temperature: -25 … 85°C

Diameter, Housing Length: 12, 60 mm

Housing Material: Stainless steel

Mounting: Non-flush mountable
