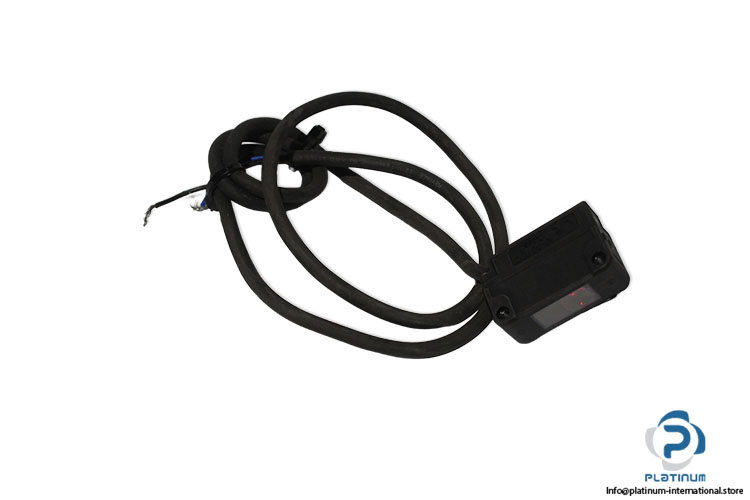

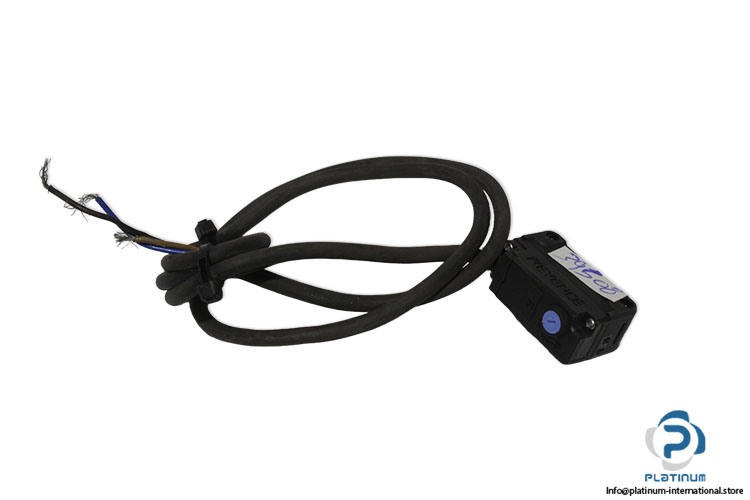

KEYENCE PZ-G52NR Self-Contained Threaded Sensor
مستعمل
متوفر1 وحدةجاهز للشحن
Self-Contained Threaded Sensor KEYENCE PZ-G52NR photoelectric sensor featuring NPN output, 20 m detecting distance, red LED light source, M8 connector, 500 µs response time, and IP67/IP69K protection for reliable industrial object detection and automation applications.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| series | PZ-G |
| Class | 2 |
| Shape | Rectangular |
| Output | NPN |
| Cable connection | M8 connector |
| Detecting distance | 20 m |
| Light source | Red LED |
| Sensitivity adjustment | 1-turn trimmer (230°) |
| Response time | 500 µs |
| Operation mode | LIGHT-ON/DARK-ON (switch-selectable) |
| Indicators (LED) | Power (T): Orange LED,Output (R): Orange LED |
| ,Stable operation | Green LED,Light receiving: Red LED |
| Control output | Open collector output, 30 V max., 100 mA max., Residual voltage: 1 V max. |
| Protection circuit | Reversed polarity, overcurrent protection, surge absorber |
| Tightening torque | Rectangular models (Mounting hole part): 0.5 N m max. |
| Power voltage | 10 to 30 VDC, including Ripple (P-P) 10 % |
| Current consumption | Transmitter: 20 mA or less, Receiver: 28 mA or less |
| Transmitter | 25 mA or less, Receiver: 28 mA or less 34 mA or less |
| Enclosure rating | IEC: IP67/NEMA: 4A, 6, 12/DIN: IP69K |
| Ambient light | Incandescent lamp: 5,000 lux max., Sunlight: 20,000 lux max. |
| Ambient temperature | -20 to +55 °C |
| Relative humidity | 35 to 85 % RH (No condensation) |
| Vibration resistance | 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions |
| Shock resistance | 1,000 m/s2, 6 times in each of the X, Y, and Z directions |
| Material | Housing, M18 nut, Glass-fiber reinforced PBT |
| Lens cover | Polyarylate (PAR) |
| Trimmer | Glass-fiber reinforced polyamide (PA) |
| Case connection | Screw, Nickel-plated iron and zinc, packing: nitrile butadiene rubber (NBR) |
| Cable (cable models only) | Polyvinyl chloride (PVC) |
| Stock key | CON003 |
| Condition | Used |
| SKU | 1100929 |
| Weight | 0,02 |
