KK Systems KD485-PROG Interface Converter
مستعمل
متوفر2 وحداتجاهز للشحن
66,66$
Interface Converter
The KK Systems KD485PROG is a programmable interface converter with RS232 and RS422/485 ports. It features a 16-bit microcontroller, multiple timers, and wide 7“35 V DC supply range for reliable industrial data communication.AutomationCommunicationConverterDataIndustrialInterfaceKD485PROGKKModuleprogrammableRS232RS422RS485SerialSystems
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

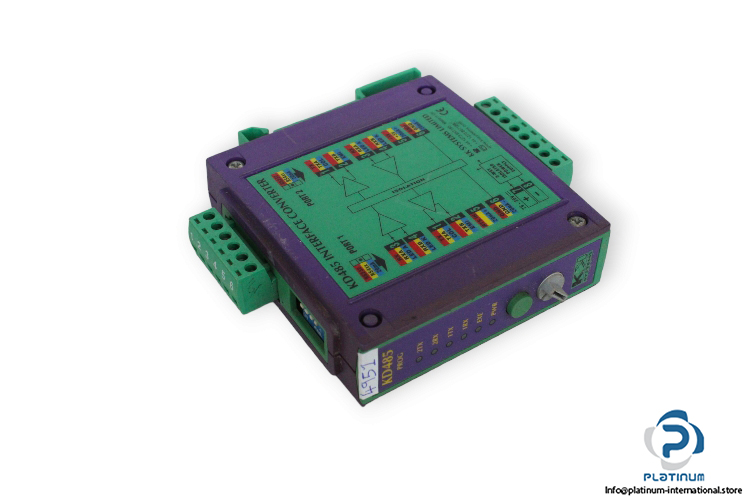

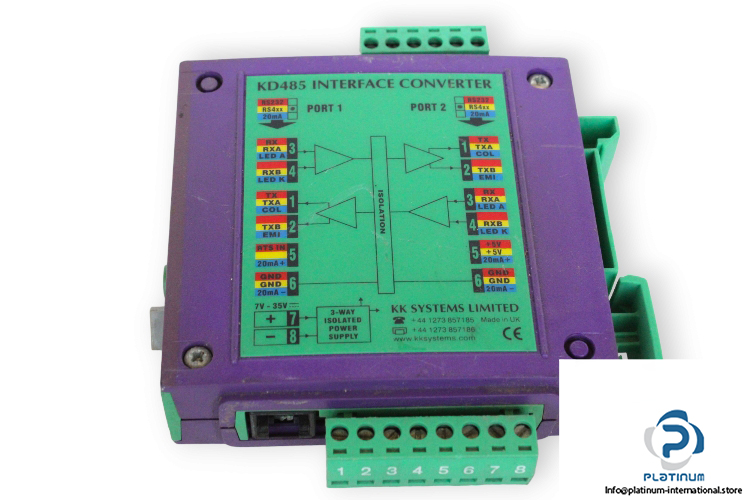

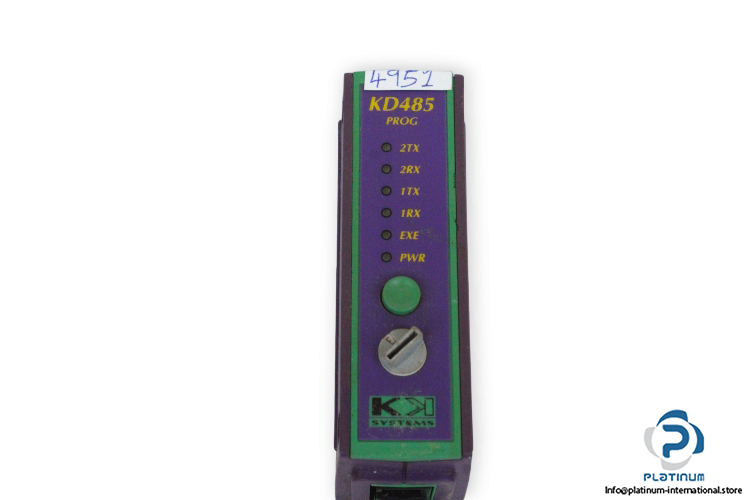

KK Systems KD485PROG Interface Converter
The KK Systems KD485PROG Interface Converter is a powerful and flexible communication device designed for industrial data conversion applications. Featuring a fast 16-bit microcontroller, it provides reliable performance for serial communication between RS232, RS422, and RS485 systems. Compact, programmable, and durable, this converter is ideal for automation, control, and embedded communication systems.
Manufacturer: KK Systems
Type: Interface Converter
Model: KD485PROG
| Microcontroller | Fast 16-bit H8/300 running at 14.75 MHz |
| Runtime Library | Partly in ROM for compact and fast execution |
| Timers | Eight 1 ms-resolution timers, up to 65,535 ms |
| Watchdog Timer | Integrated for system ruggedness |
| EEPROM | 32k user-writeable memory area |
| Compiler | High-quality optimizing cross-compiler available |
| Documentation | Full usage examples and function references |
| Optional Feature | Real Time Clock (RTC) |
| Power Supply | 7 / 35 V DC |
| Ports | Two asynchronous communication ports |
| Interface Options | Port 1 “ RS232; Port 2 “ RS422/485 |
| Operating Temperature | 0 / +50 °C |
| Dimensions | 29 × 113 × 100 mm |
