Leine Linde RSA 698 Absolute Encoder
جديد
متاح عند الطلب
520,00$
مشفر مطلق Leine Linde RSA698 يقدم دقة 25-بت مع قدرة تعدد اللفات، عمود من الفولاذ المقاوم للصدأ، حماية IP67، وسرعة قصوى 12000 دورة في الدقيقة - مثالي للتحديد الدقيق للصناعات.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

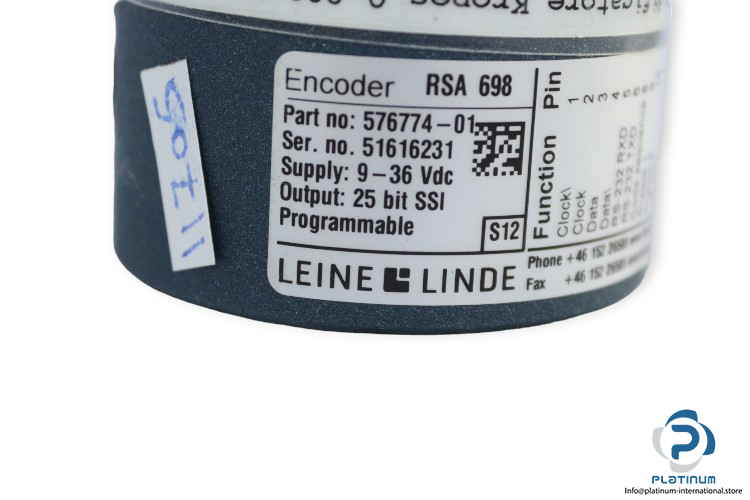

LEINE LINDE RSA698 ABSOLUTE ENCODER
The Leine Linde RSA698 is a high-performance absolute encoder engineered for precision control and rugged industrial environments. With a stainless steel shaft, wide operating voltage, and exceptional resolution capabilities, it delivers reliable and accurate positioning feedback in high-speed applications.
Manufacturer: Leine Linde
Type: Absolute Encoder
Model: RSA698
Part No.: 576774-01
SN: 51616231
| Supply Voltage | 9 / 36 V DC |
| Current Consumption | 60 mA |

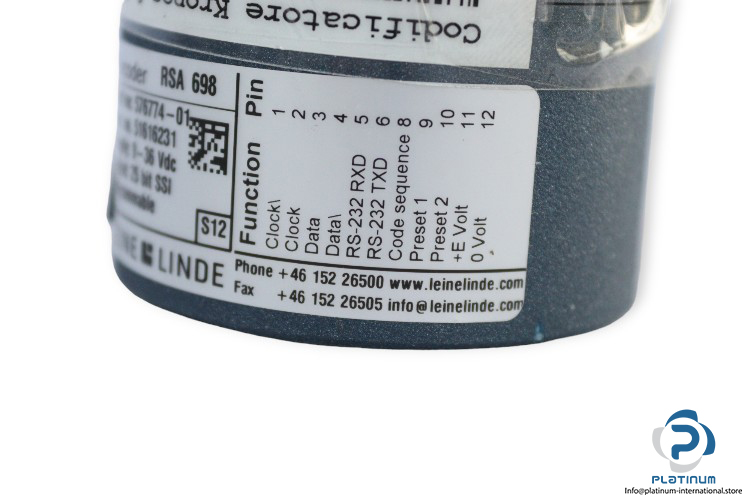

| No. of Pins | 12 |
| Total Resolution | 25 Bit (13 Bit Single Turn “ 8192 positions, 12 Bit Multiturn “ 4096 revolutions) |
| Max Speed | 12000 rpm |
| Outer Diameter | 58 mm |
| Protection Class | IP67, IP66 |
| Shaft Type | Stainless Steel Solid Shaft |
| Mounting Holes | 3 x M4 |
| Cover Material | Aluminum |
| Shaft Material | Stainless Steel |
| Operating Temperature | -40 / 85°C |
