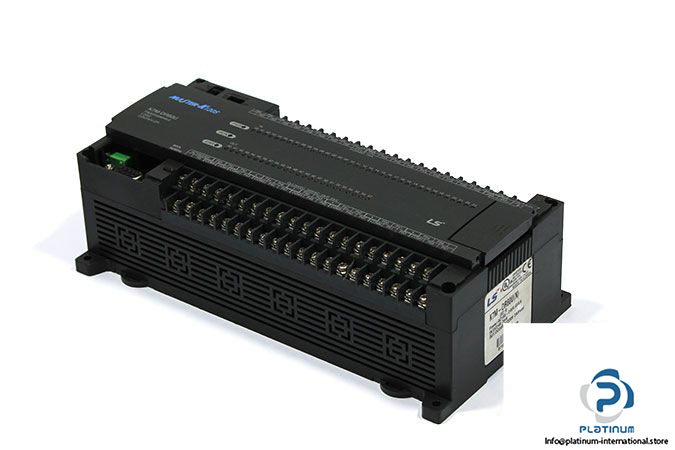

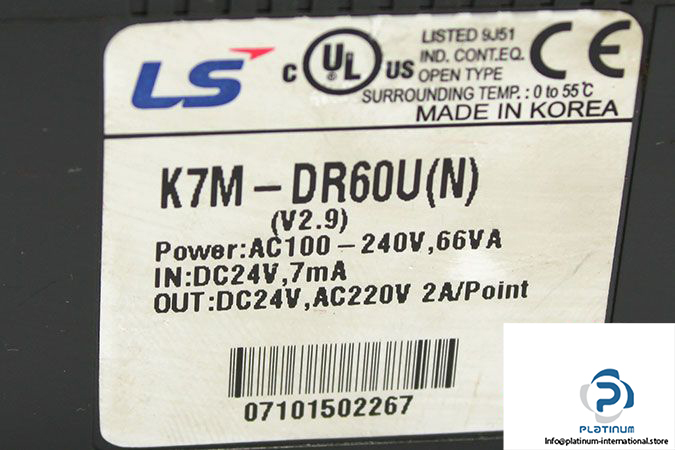

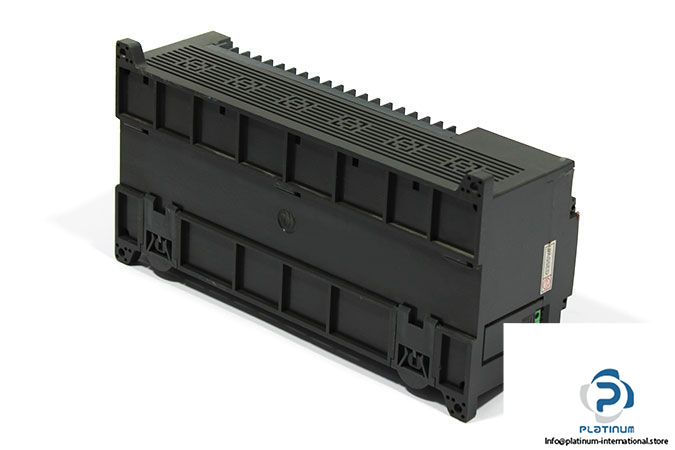

LS K7M-DR60U Programmable Logic Controller

Manufacturer: LS

Type: Programmable Logic Controller

Series: Master-K120S

Model: K7M-DR60U

Output Point: 24 Points (20 Points)

Insulation Method: Relay Insulation

Power Supply: 100…240 V AC / 60 VA

Input Voltage: 24 VDC

Input Current: 7 mA

Output Voltage: 24 VDC / 220 V AC

Output Current: 2 A

Outputs: 24 Relay

Inputs: 36 DC

Min. Load Voltage/Current: DC5V / 1mA

Max. Load Voltage/Current: AC250V, DC110V

Operation Indication: Led Is on at on Status of Output

Weight: 0.83 kg
