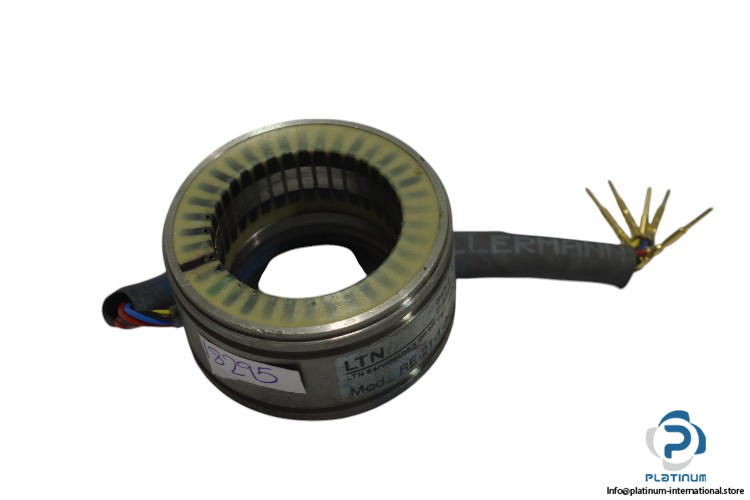

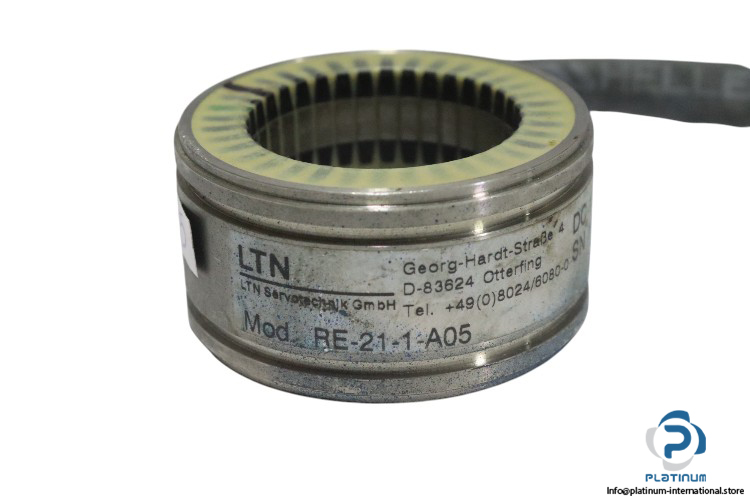

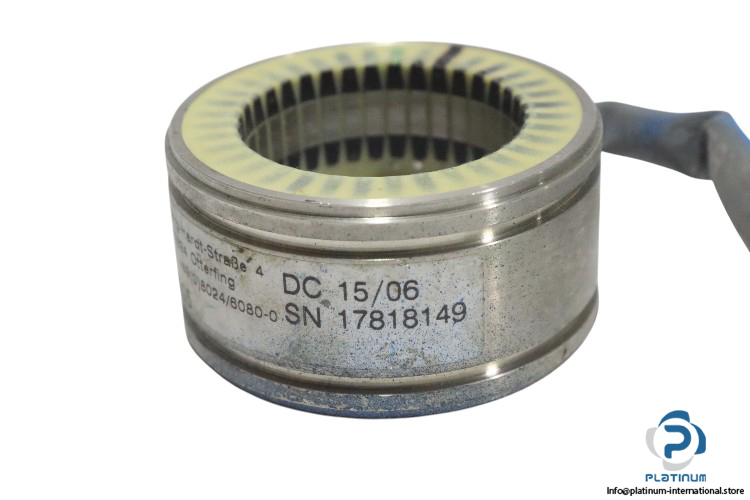

LTN RE-21-1-A05 Resolver Encoder
مستعمل
متوفر7 وحداتجاهز للشحن
199,99$
Resolver Encoder
LTN RE-21-1-A05 “ Compact resolver encoder with 17 mm hollow shaft, 7 Vrms, 20,000 rpm max, and -55°C to +155°C temperature range.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
LTN RE-21-1-A05 Resolver Encoder
The LTN RE-21-1-A05 is a compact and high-precision resolver encoder designed for accurate position and speed feedback in demanding industrial environments. With a hollow shaft accommodating up to 17 mm and an external diameter of just 52.4 mm, this resolver offers a space-saving solution without compromising on performance. It supports input voltages of 7 Vrms at frequencies of 5 to 7 kHz, with a maximum permissible speed of 20,000 min-1. Its fully impregnated rotor and stator construction enhances durability and operational stability in harsh temperature ranges from -55°C to +155°C.
- Manufacturer: LTN
- Type: Resolver Encoder
- Model: RE-21-1-A05
Technical Specifications:
- Hollow Shaft Diameter: Max. 17 mm
- Outer Diameter: 52.4 mm
- Length: 26 mm
- Number of Pole Pairs: 1
- Input Voltage: 7 Vrms
- Input Current (typ.): 70/56 mA
- Input Frequency: 5/7 kHz
- Null Voltage (max.): 30 mV
- Rotor/Stator: Fully impregnated
- Max. Permissible Speed: 20,000 min»¹
- Operating Temperature: -55°C to +155°C
Applications:
- High-speed motor feedback systems
- Precision motion control in robotics and CNC
- Aerospace and defense systems
- Industrial automation with extreme temperature requirements
