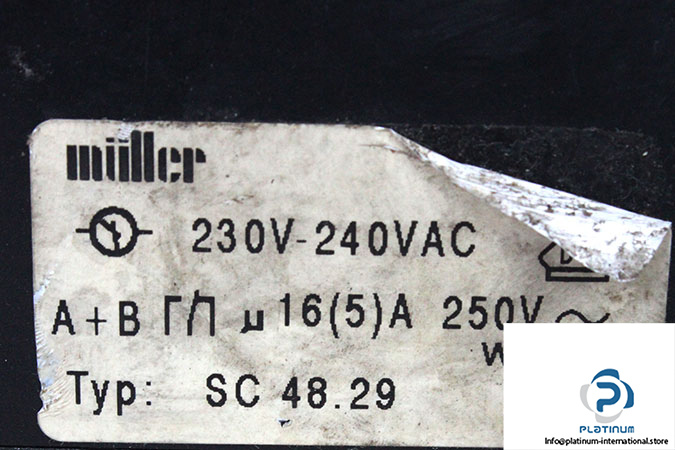

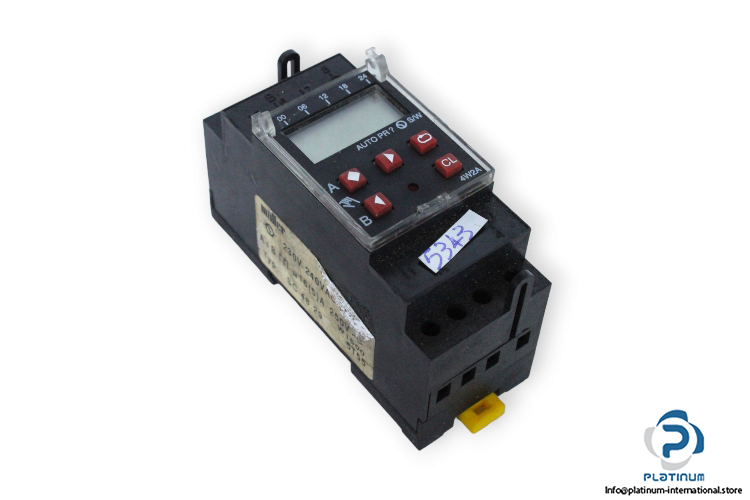

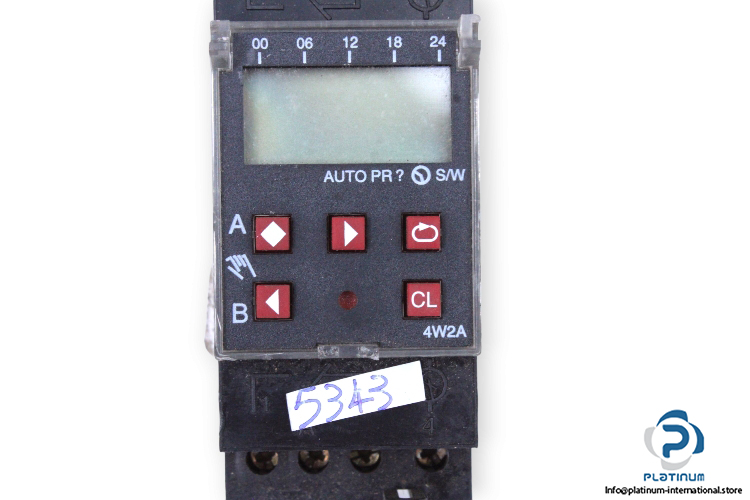

Muller SC 48.29 Timer Switch Controller

Manufacture: Muller
Type: Timer Switch Controller
Model: 4W2A
Part No.: SC 48.29

Supply voltage: 230 … 240 V AC
Power Consumption: 1.5 VA
Switching function: ON, OFF, Pulse
Output: 2 change over contact
Switching capacity: 16 (5) A/250 V AC
Pulse length: 1 sec
Display: LCD
Memory location: 30
Minimum interval: 1 Min
Time base: Quartz, crystal
Type of connection: Screw terminal
Protection degree: IP20
Ambient Temperature: -5 … +50 °C
Dimensions: 45 x 55 x 35 mm
