Murr 52003 Input Relay
مستعمل
متوفر1 وحدةجاهز للشحن
Input Relay
A compact and durable input relay designed for industrial automation, offering stable AC/DC signal switching, high performance, and easy DIN-rail installation.52003AutomationComponentsControlDINElectricalElektronikIndustrialInputInterfaceModuleMurrPanelrailRelay
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

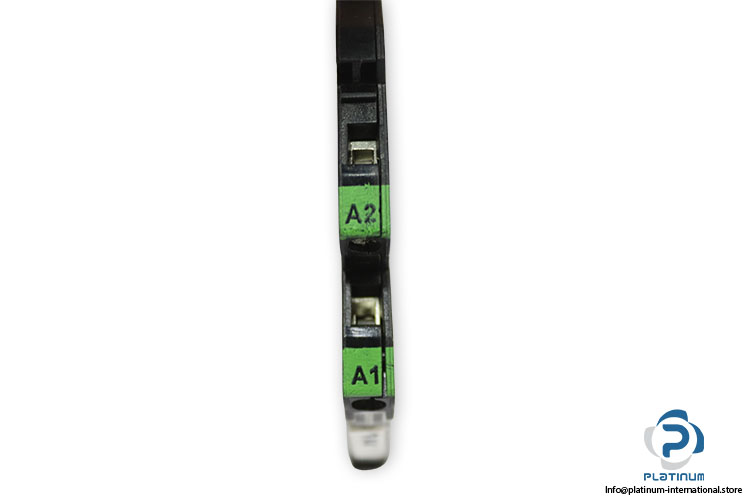

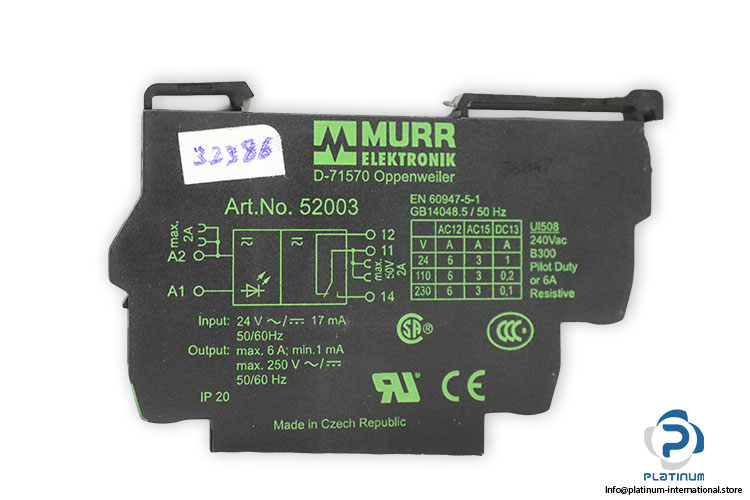

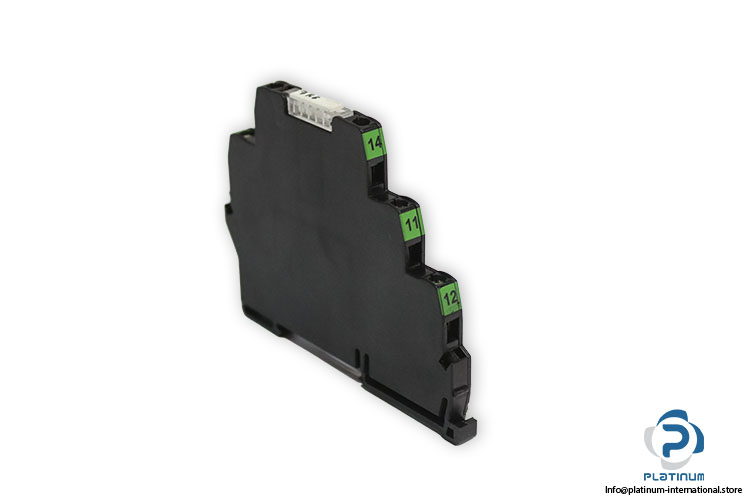

MURR ELEKTRONIK Input Relay “ Art.No. 52003
A high-performance input relay designed for reliable signal switching in automation systems. Ideal for industrial control panels, machinery applications, and electrical interfaces requiring stable AC/DC input compatibility. Manufacturer: MURR ELEKTRONIK
Type: Input Relay
Art.No.: 52003
Relay bases and sockets for various relay types are available. For compatible options, please contact us directly or visit our website to view all available models.
| Voltage Input AC | 24 V |
| Input Voltage AC Min. | 19.2 V |
| Input Voltage AC Max. | 30 V |
| Voltage Input DC | 24 V |
| Input Voltage DC Min. | 19.2 V |
| Input Voltage DC Max. | 30 V |
| Input Current | 17 mA |
| Utilization Category DC-13 (EN IEC 60947-5-1) | 1 A @ 24 V, 0.2 A @ 110 V, 0.1 A @ 230 V |
| Switching Frequency Max. | 10 Hz |
| Power Rating AC Max. | 1500 VA |
| Power Rating DC Max. | 120 W |
| Switching Voltage AC Max. | 250 V |
| Switching Voltage DC Max. | 250 V |
| Current Switching DC | 1 mA |
| Switching Current Max. | 6 A |
| Material Contact | Ag Sn O2 HV |
| Mounting Method | Snapped (DIN Rail) |
| Suitable for Mounting Type | EN 60715 “ Mounting Rail |
| Height | 91 mm |
| Width | 6.2 mm |
| Depth | 71 mm |
| Operating Temperature Min. | -20 °C |
| Operating Temperature Max. | 55 °C |
| Protection Class | IP20 |
