Murr 7000-42831 Valve Plug
محول M12 على الجزء الخلفي من قابس صمام A-Cod / MSUD

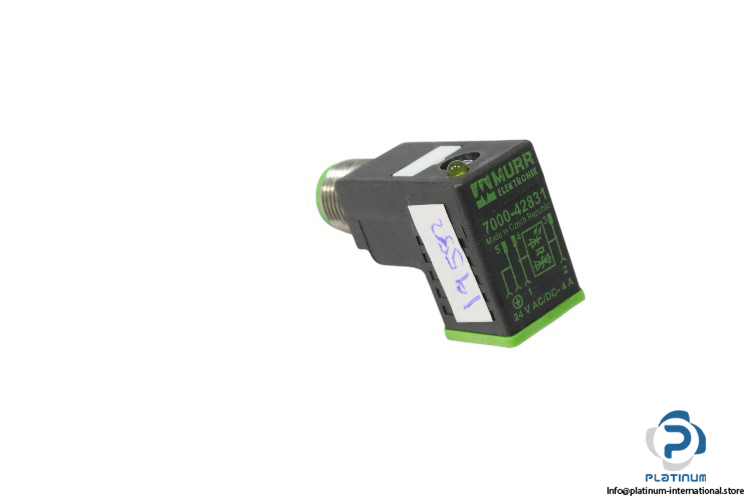

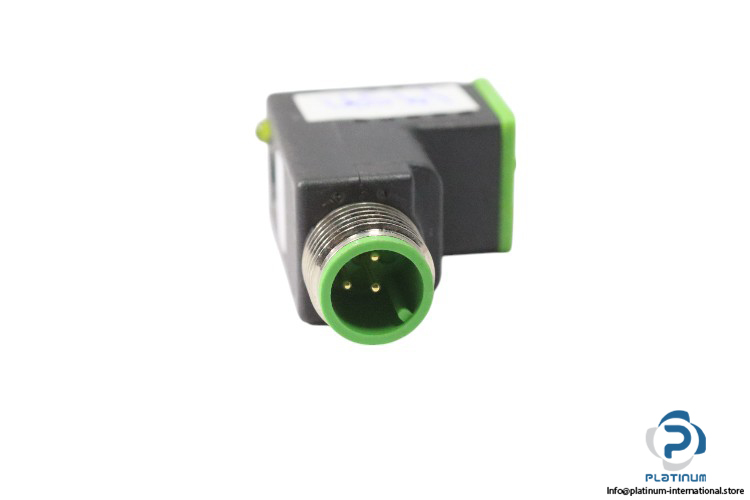

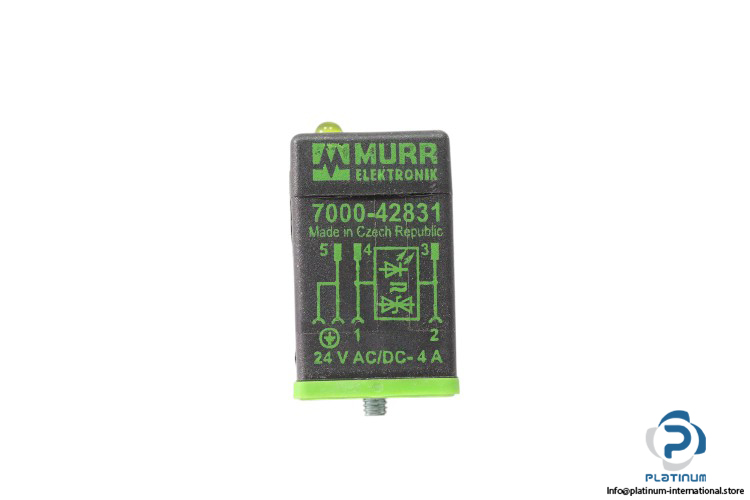

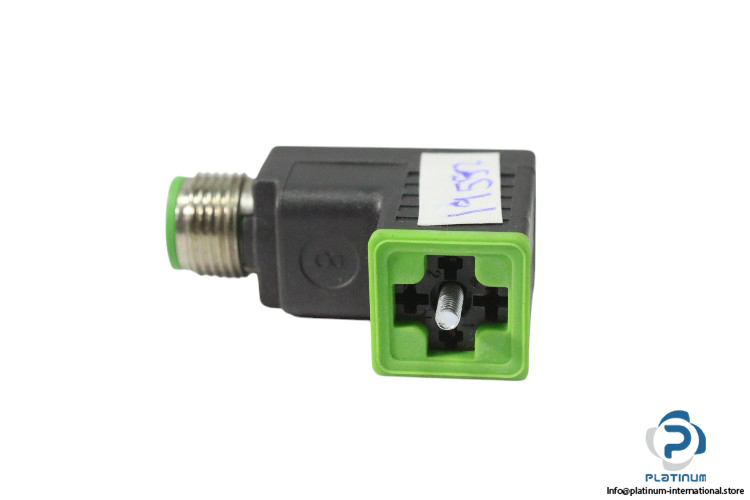

Murr Elektronik Adaptor M12 on Rear A-Cod / MSUD Valve Plug C-8 mm
The Murr Elektronik Adaptor M12 on Rear A-Cod / MSUD Valve Plug C-8 mm is a high-quality component designed for reliable electrical connections in industrial applications. This adaptor ensures smooth connectivity, with a yellow LED status indication for easy monitoring. Built to withstand harsh environments, it features an IP67 degree of protection and an operating temperature range from -25 to 85°C.
Manufacturer: Murr Elektronik
Type: Adaptor M12 on Rear A-Cod / MSUD Valve Plug C-8 mm
Art. No.: 7000-42831
This adaptor is designed to offer superior performance and reliability in electrical systems, ensuring safe and efficient operations in various environments.
| Operating Voltage | 24 V AC/DC |
| Current | 4 A |
| Current Consumption Max. | 15 mA |
| Status Indication | LED yellow |
| Tightening Torque | 0.6 Nm |
| Rated Surge Voltage | 0.8 kV |
| No. of Poles | 2 + PE |
| Mounting Set | M3 |
| Degree of Protection | IP67 |
| Operating Temperature | -25 to 85°C |
| Dimensions | 39 x 25 x 15 mm |
