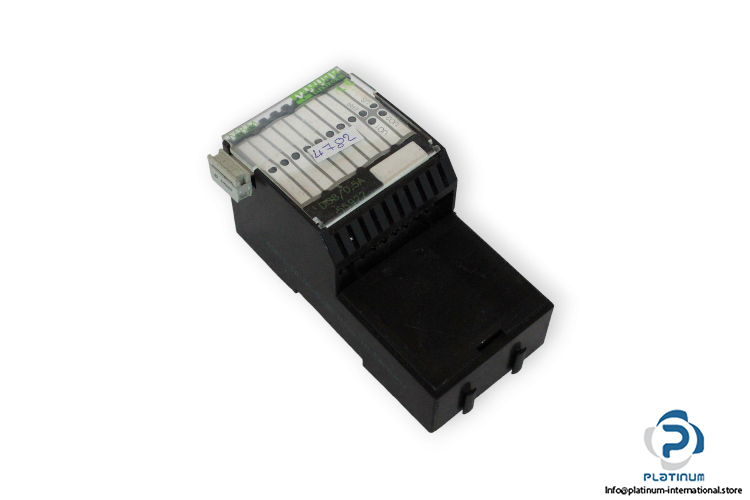

Murr DO8/0,5A Digital Output Module

Manufacturer: MURR
Type: Digital Output Module

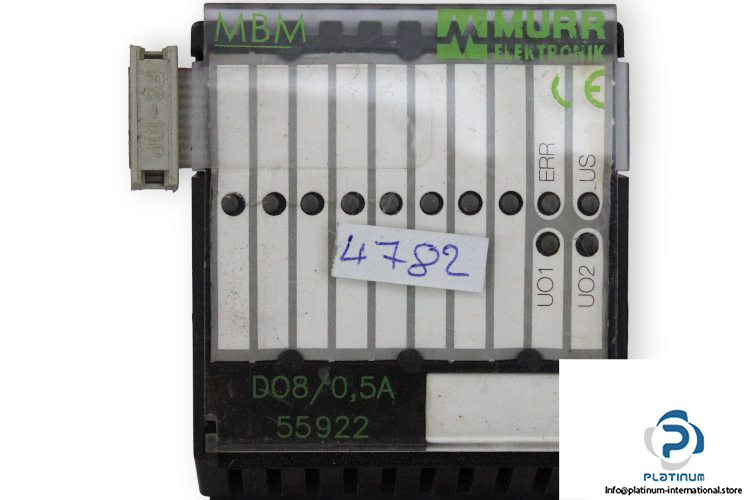

Model: DO8/0,5A

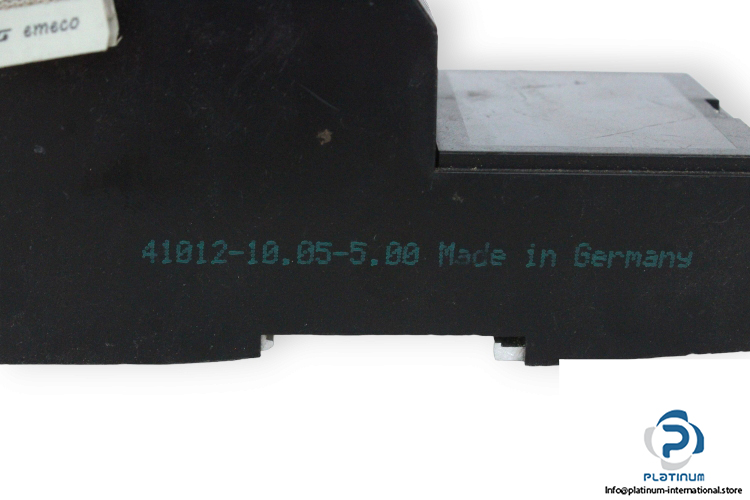

Part No.: 41012-10.05-5.00 / 55922

Lamp load: 5 W
Galvanic isolation: 500 V DC between outputs and internal communication
Actuator supply UA: 24 V DC (EN 61131-2), max. 4 A
Output delay time: 175 ns
Switching current per output : max. 0.5 A
Temperature range: 0…+60 °C
Protection: IP20
Current consumption: max. 70 mA
