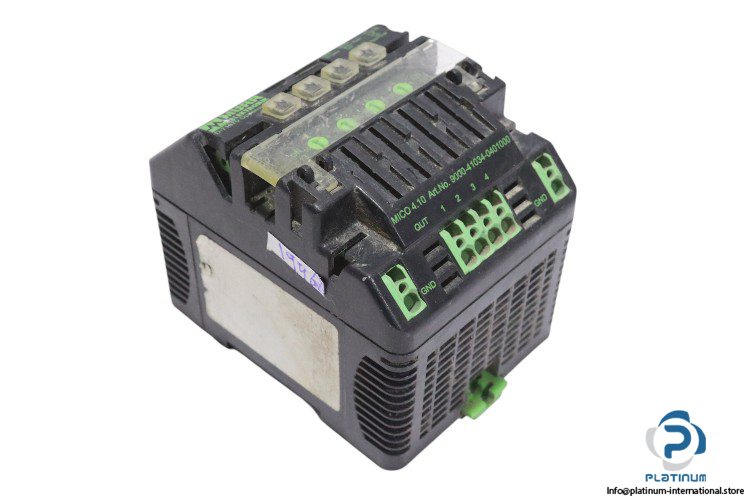

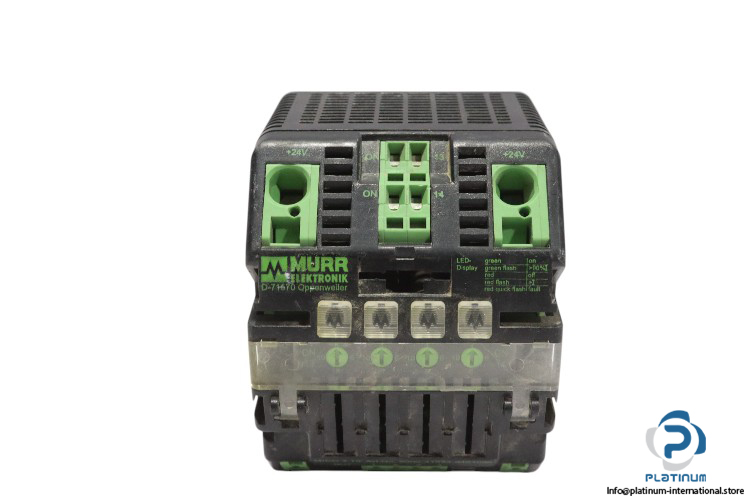

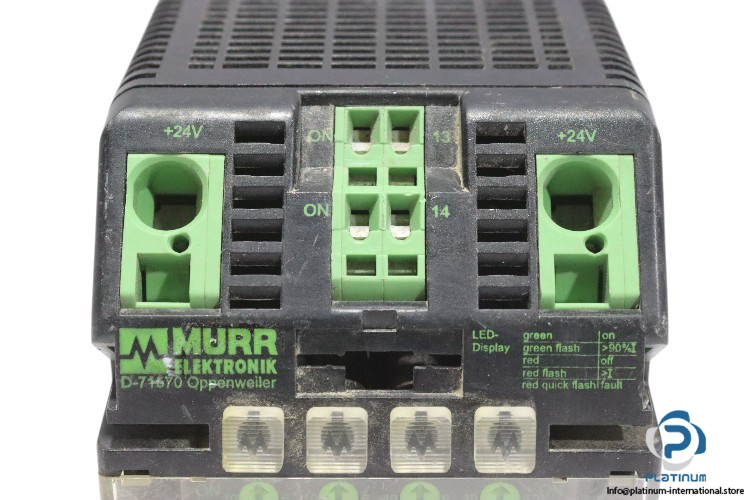

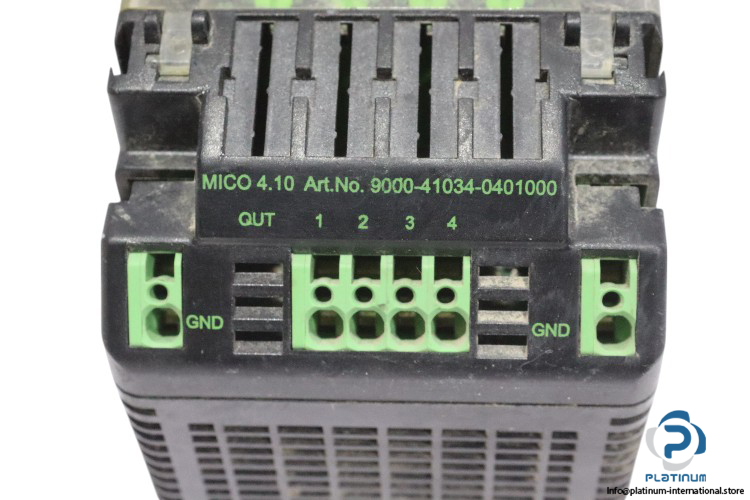

Murr Elektronik Mico 4.10 Speed-Start Electronic Circuit Protection

Murr Elektronik MICO 4.10 Speed-Start Electronic Circuit Protection

The MICO 4.10 from Murr Elektronik is an advanced speed-start electronic circuit protection module designed for reliable and efficient power distribution in 24 V DC control systems. With four independent channels and robust inrush capacity handling, it ensures effective protection against overloads and short circuits while optimizing startup performance.

Manufacturer: Murr Elektronik

Type: Speed-Start Electronic Circuit Protection

Model: MICO 4.10

Part No.: 9000-41034-0401000

Technical Data:

• Operating Voltage: 24 V DC
• Input Voltage (ON): 10 “ 30 V DC
• Impulse Length (ON): Minimum 20 ms
• Group Alarm Output: Potential-free, 30 V AC/DC, 100 mA
• Mounting Method: DIN-rail mountable TH35 (EN 60715)
• Number of Channels: 4 Channels
• Inrush Capacity: Max. 30 mF per channel
• Connection: Spring clamp terminals
• Operating Temperature: 0 / +55 °C
• Dimensions: 90 × 70 × 80 mm
