Nord SK80SP/4 TF Gear Motor
جديد
متوفر2 وحداتجاهز للشحن

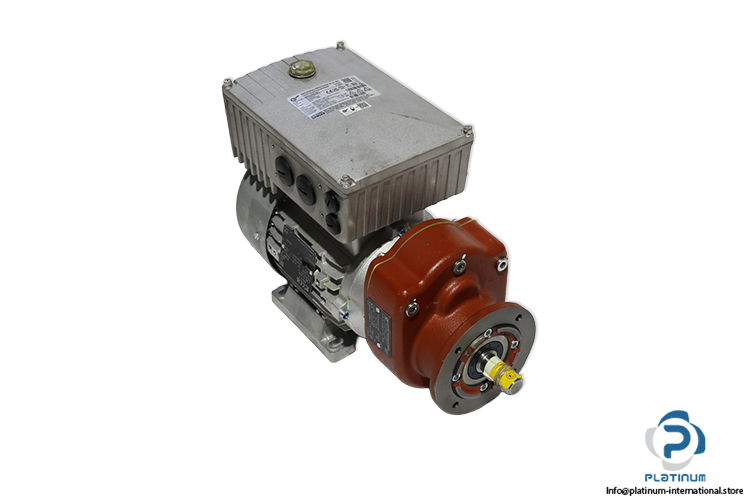

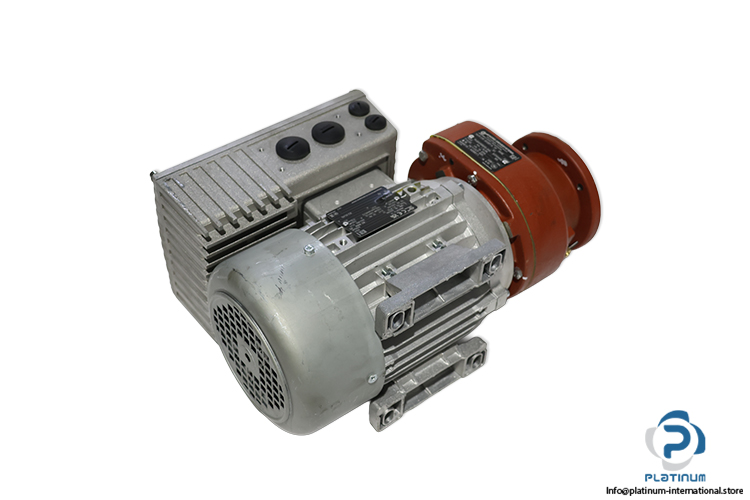

Gear Motor NORD SK80SP/4 TF 0.55 kW industrial gear motor with IP55 protection, S1 duty and NORD SK 180E-550-340-B frequency inverter for variable-speed applications.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

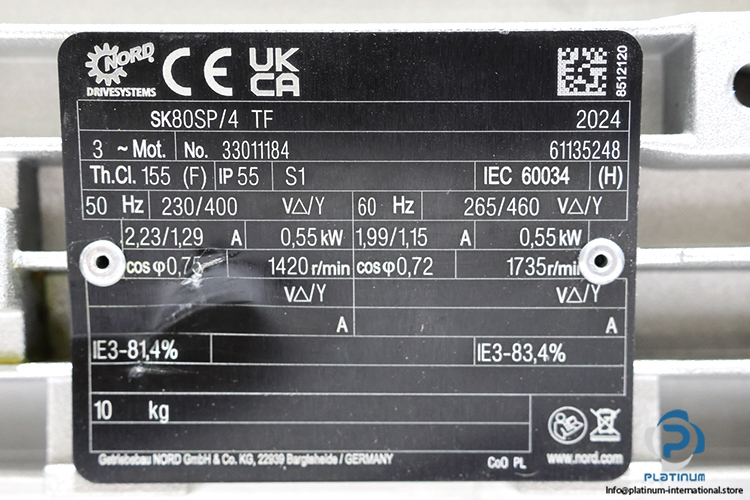

| Part No. | 33011184 |
| Rated Current [A] | 2,23/1,29 / 1,99/1,15 |
| Rated Voltage [V] | 230-400/265-460 |
| Rated Power [Kw] | 0.55 |
| Rated Speed [min-1] | 1420/1735 |
| Frequency [Hz] | 50/60 |
| Duty | S1 |
| Power Factor [cos] | 0.75/0.72 |
| Protection Class [IP] | 55 |
| Thermal Class | F |
| Standard | IEC 60034(H) |
| Attached with | NORD SK 180E-550-340-B Frequency Inverter |
| Part No. | 275234355 |
| ID | 22Y309230388 |
| Verslon | ACA 1.3R0 |
| Input Voltage | 3 AC 380..480 V |
| Input Current | 2.6 A |
| Input Frequency | 47 / 63 Hz |
| Output | 3 AC 0 - 380..480 V |
| Output Current | 1.7 A |
| Output Frequency Range | 0 / 400 Hz |
| Output Power | 0,55kW |
| Protection | IP55 / Enclosure Type 1 |
| Temp.Range | -25 ... 40C |
| Dissipation | IE2 4,3%(90/100) 5,5W/1,00%(Standby) |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101297 |
| Weight | 18,6 |
