Hydraulics & Pneumatics Pneumatic Actuators

Omal SR60 Pneumatic Actuator

Name: OMAL SR60 PNEUMATIC ACTUATOR
SKU: 1083908
Availability: LimitedAvailability

مستعمل

متوفر1 وحدةجاهز للشحن

Pneumatic Actuator

The OMAL SR 60 Pneumatic Actuator with spring return design operates up to 8 bar pressure, providing torque from 15 Nm to 1920 Nm and 90° rotation for industrial valve automation.

الشركة المصنّعة

OMAL

SKU

1083908

الفئة

Pneumatic Actuators

الحالة

مستعمل

60 8 90 Actuator Aluminum bar Components Control Degree Housing Industrial Omal Pneumatic Return rotation Series spring SR Unit Valve

مخزون ضخم

شحن عالمي

دعم من خبراء

جودة مضمونة

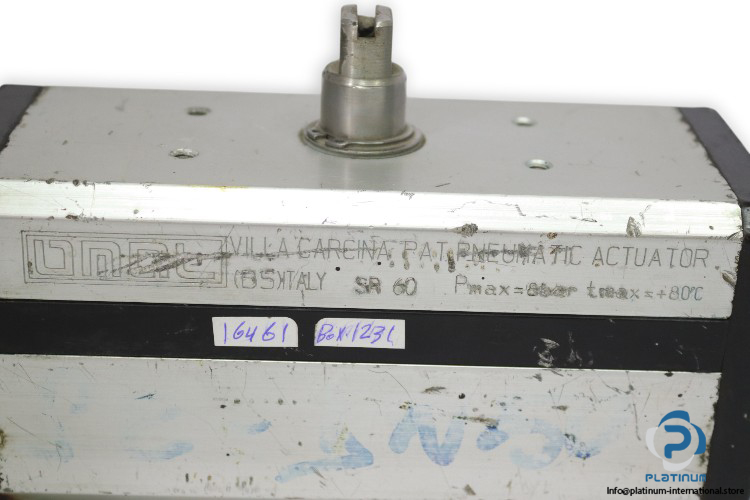

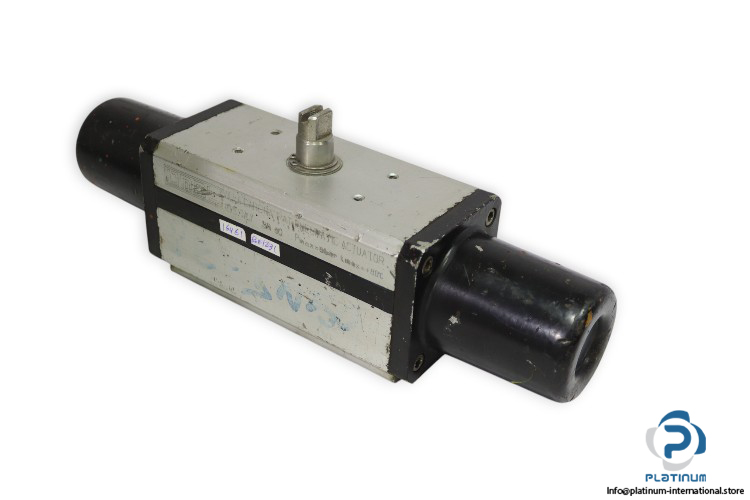

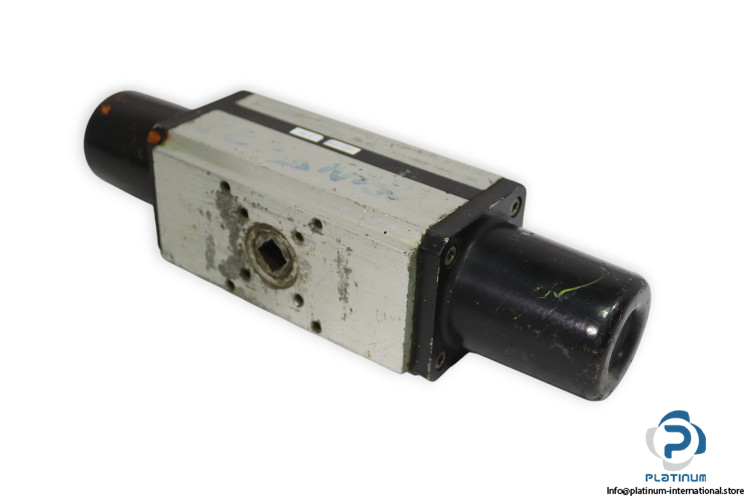

OMAL SR 60 Pneumatic Actuator

The OMAL SR 60 Pneumatic Actuator is designed for reliable and efficient control of valves in automation systems. With a spring return actuation and strong aluminum housing, it ensures long-lasting performance under industrial operating conditions.

Manufacturer: OMAL

Type: Pneumatic Actuator

Model: SR 60

Series: SR

Size: SR 60

Operating Media	Compressed filtered air, not necessarily lubricated
Actuation Type	Spring Return
Pressure Rating	Maximum 8 bar
Nominal Pressure	5.6 bar
Temperature Range	-20 to 80°C
Torque	From 15 Nm to 1920 Nm
Rotation Angle	90°
Body Material	Aluminum housing
