Omron D3V-165-1C25 Basic Switch
مستعمل
متوفر45 وحداتجاهز للشحن
Omron Reliable Basic Switch with External Lever D3V1651C25 with 125/250 V AC/DC voltage, 16A current rating, and SPDT contact form. Features quick connect termination and IP40 protection for reliable industrial applications.
125/25016AAc/DcBasicConnectExternalHingeHoleIndustrialLeverMountingNo/NcOmronQuickRollerShortSpdtSwitchThroughV
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

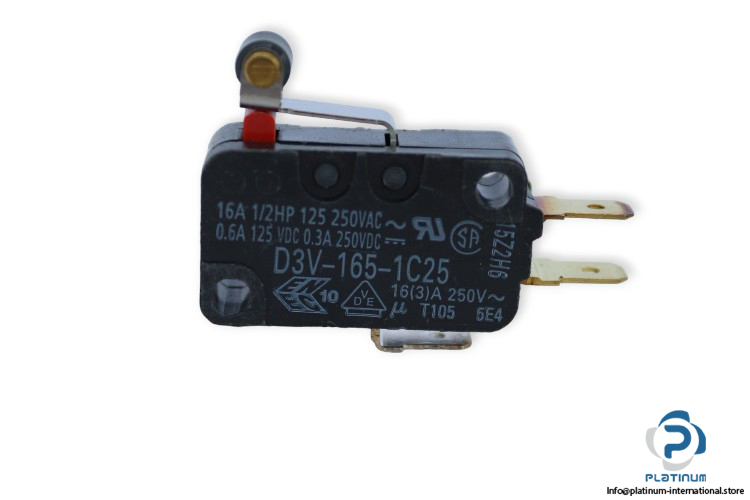

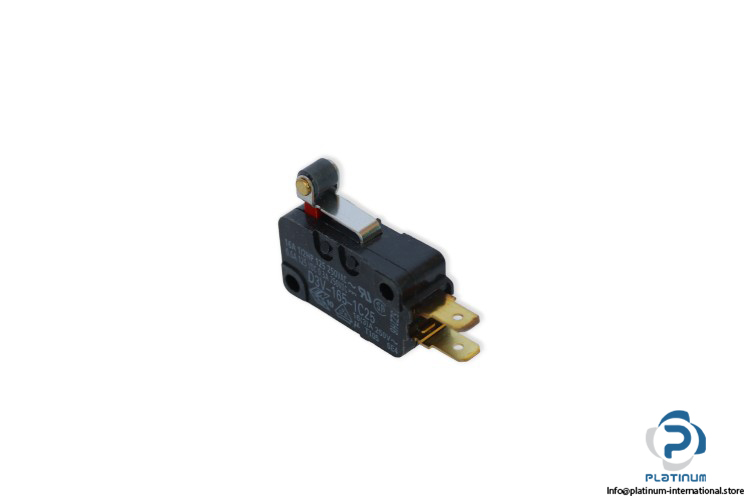

Omron Reliable Basic Switch with External Lever D3V1651C25
Omron Reliable Basic Switch with External Lever D3V1651C25 is a highly durable and precise switch designed for a variety of industrial and commercial applications. With its external lever and versatile contact configurations, it ensures reliable operation for controlling electrical circuits in various environments.
- Manufacturer: Omron
- Type: Reliable Basic Switch with External Lever
- Model: D3V1651C25
Technical Data:
- Voltage: 125/250 V AC/DC
- Current:
- 16A (AC)
- 0.6A (125 V DC)
- 0.3A (250 V DC)
- Contact Form: SPDT
- Switch Configuration: NO/NC
- Actuator Material/Style: Polyacetal Resin/Stainless Steel/Short Hinge Roller Lever
- Contact Rating: 250 V AC, 16(3) A
- Maximum Movement Differential: 0.6 mm
- Maximum Operating Force: 0.25 N
- Mounting: Through Hole
- Termination Style: Quick Connect
- Protection Degree: IP40
- Dimensions: 37.8 x 10.3 x 28 mm
