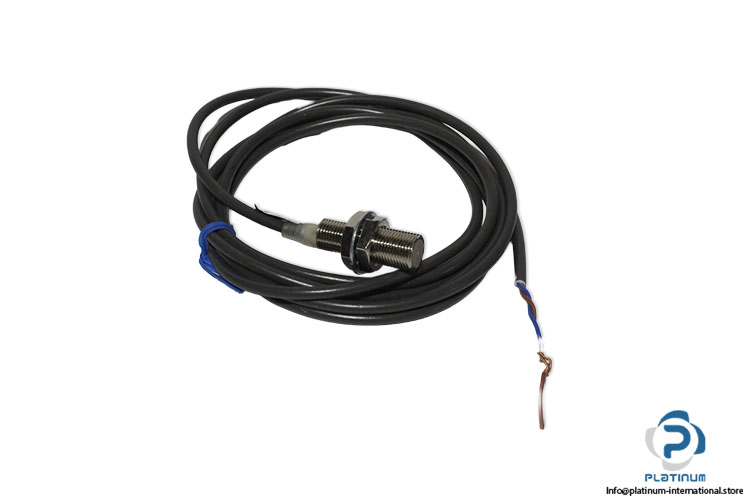

Omron E2E-X3D1-N Proximity Sensor
جديد
متوفر15 وحداتجاهز للشحن
Proximity Sensor Omron E2E-X3D1-N inductive proximity sensor with 3 mm sensing range, NPN normally open output, and IP67 protection for reliable industrial object detection.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| Series | E2E |
| Sensing Range | 3 mm |
| Operating Voltage | 12 to 24VDC |
| max. Sensing object | Magnetic metals |
| Setting distance | 0 to 2.4mm (0to0.09 in) |
| Standard object (mildsteel) | 12x12x 1mm (0.47x0.47 x0.04in) Differential travel: 10% max. of sensing distance |
| Response frequency | 1.0kHz |
| Control output (switching capacity) | 3to100mA (5to100mAfor-M1J-Tmodels) Diagnostic output:50mAfor-D1S models |
| Diagnostic output delay | 0.3to1s |
| Ambient temperature Operating | -25C to 70C |
| Electrical Design | NPN |
| Switching Output | Normally open |
| Dimensions | M 12 |
| Degree of protection | ip67 |
| Body material | Brass |

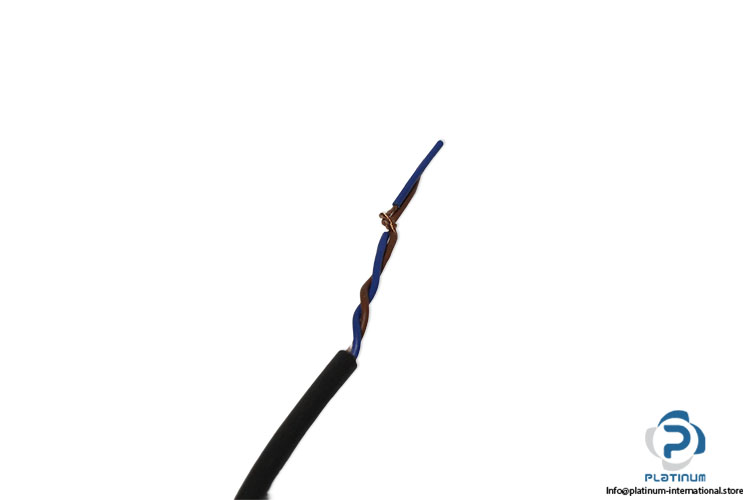

| Connection | Cable,2 m |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100904 |
| Weight | 0,07 |
