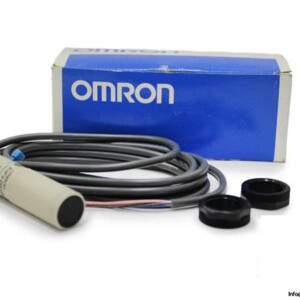

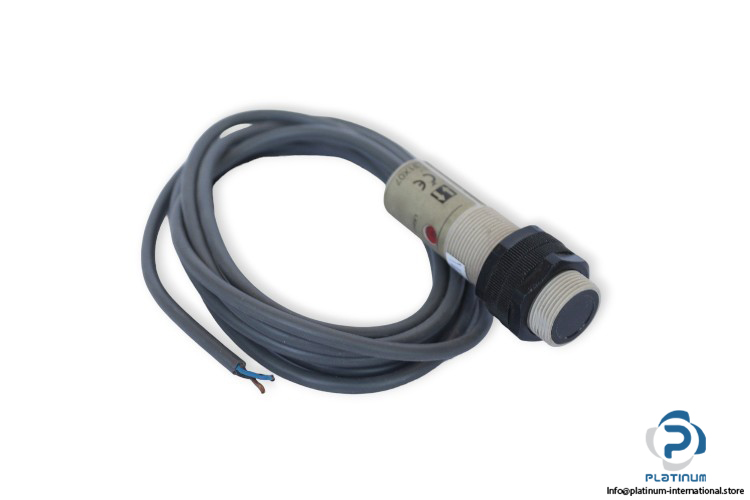

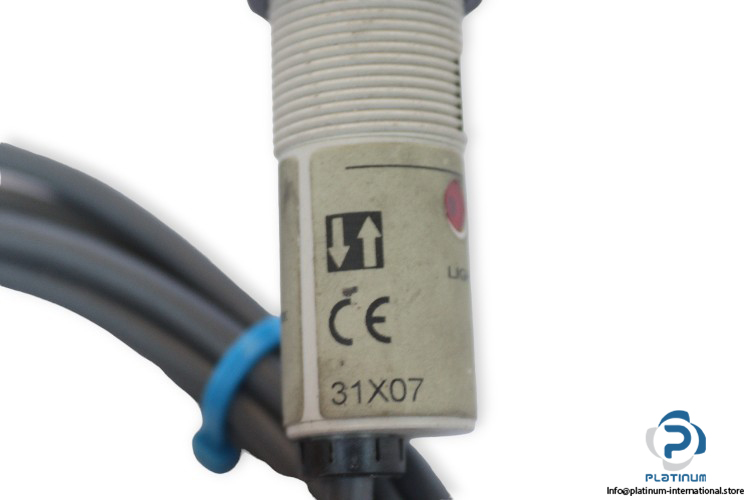

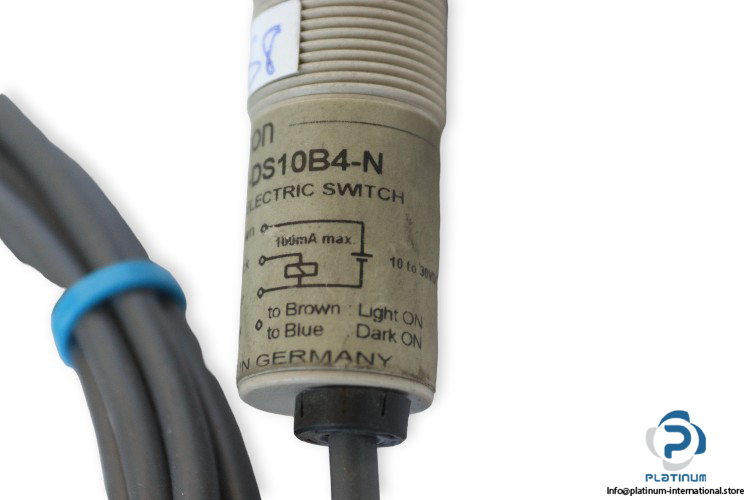

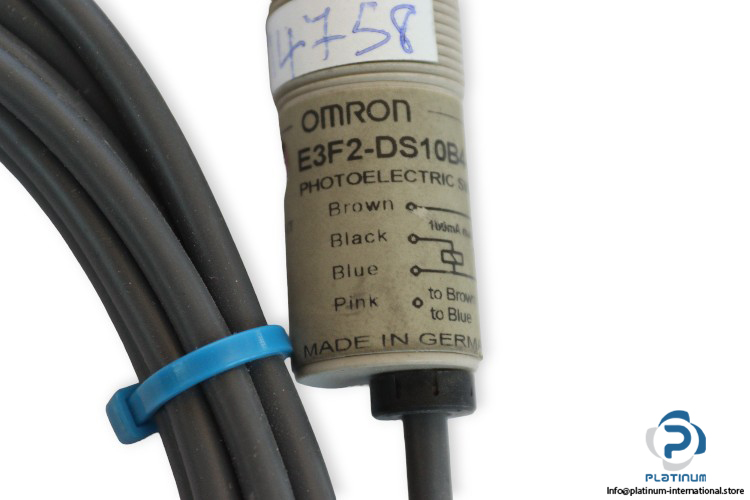

Omron E3F2-DS10B4-N Diffuse Reflective Sensor

Manufacturer: OMRON
Type: Diffuse Reflective Sensor
Model: E3F2DS10B4N

Sensing Range: 100 mm
Light Source: Infrared LED
Wave Length: 880 nm
Operating Voltage: 12 … 24 V DC
Rated Current Consumption: 25 mA
Switching Output: PNP
Connection Type: Cable 3-Wires, 2 m
Operation Mode: Light-ON or Dark-ON
Housing Material: Plastic
Sensor Length, Diameter: 64.9, 24 mm
Protection Class: IP67/IP96K
Operating Temperature: -25 … 55 °C
