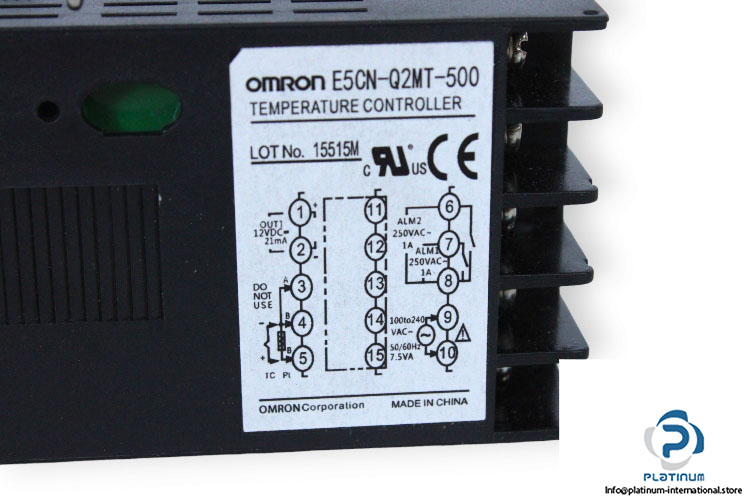

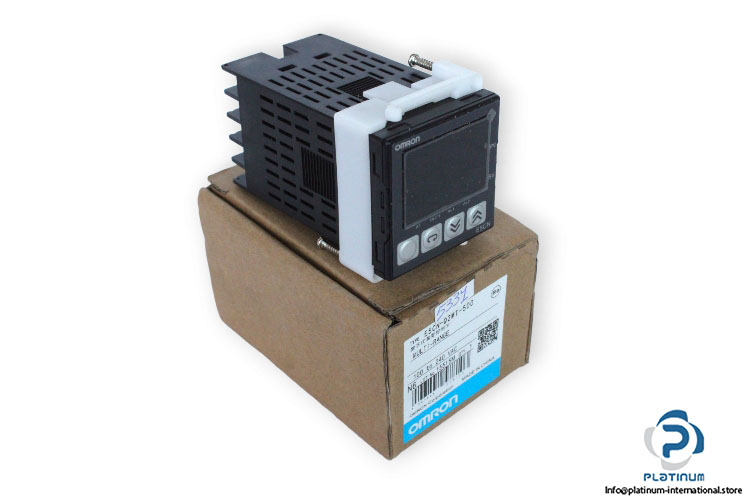

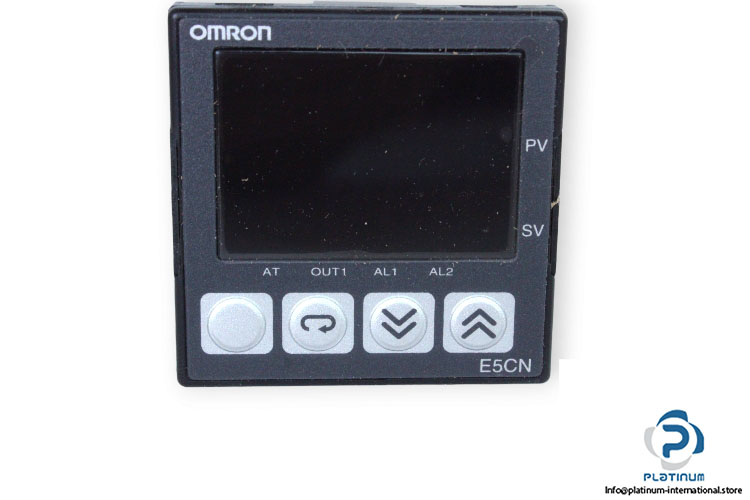

Omron E5CN-Q2MT-500 Digital Temperature Controller

Manufacture: Omron
Type: Digital Temperature Controller
Model: E5CN-Q2MT-500

Supply voltage: 100 … 240 V AC
Frequency: 50/60 Hz
Power Consumption: 7.5 VA
Input impedance: Current input: 150 ohm, Voltage input: 1 Mohm
Setting method: Digital setting using front panel keys
Control output:
Relay output: (SPST-NO) 250 VAC, 3 A
Voltage output: 12 V DC (PNP),21 mA
Current output: 4 … 20 mA /0 … 20 mA
Alarm output: (SPST-NO) 250 VAC, 1 A
Number of alarm points: 2
Ambient operating temperature: -10 … 55°C
Dimensions: 48 × 48 × 78 mm
