Omron E6B2-CWZ6C Incremental Encoder
جديد
متوفر1 وحدةجاهز للشحن
Incremental Encoder OMRON E6B2-CWZ6C incremental encoder with a 6 mm solid shaft, 1024 PPR resolution, 6,000 r/min maximum permissible speed, 100 kHz response frequency, and NPN open-collector output. Suitable for reliable position and speed feedback in industrial automation systems.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| Shaft Type | Solid Shaft |
| Shaft Diameter | 6 mm |
| Resolution | 1024 Pulse Per Revolution |
| Maximum Permissible Speed | 6,000 r/min |
| Maximum Response Frequency | 100 kHz |
| Power Supply | 5 / 24 VDC |
| Output Configuration | Open-Collector (NPN) |

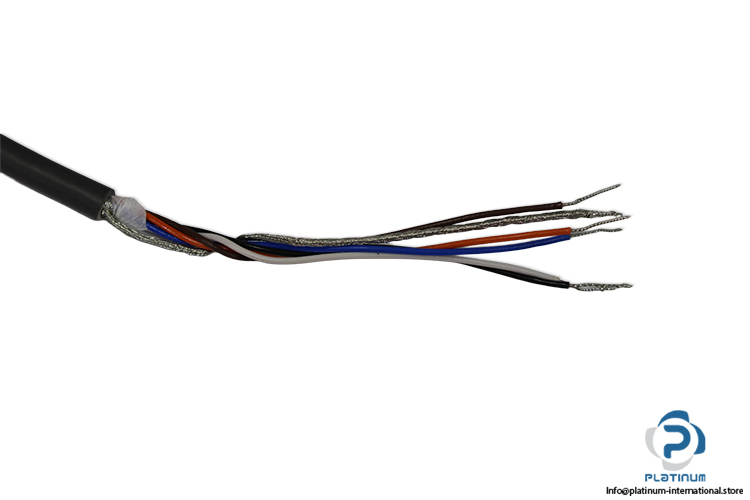

| Connection | Cable |
| Materials Case | ABS, Main Unit: Aluminum, Shaft: SUS420J2 |
| Stock key | CH001 |
| Condition | New |
| SKU | 1101401 |
| Weight | 0,19 |
