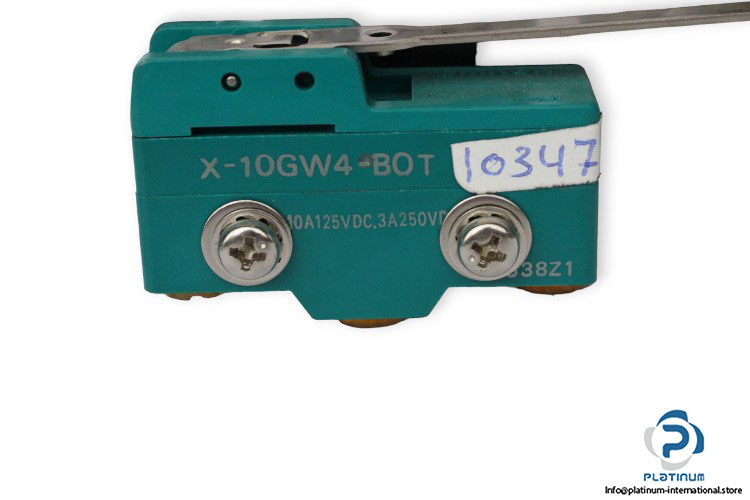

Omron X-10GW4-BOT Direct Current Switch
Manufacturer: Omron
Type: Direct Current Switch
Model: X10GW4BOT
Rated Voltage: 125 … 250 V DC
Current: 3 … 10 A
Operating Speed: 0.1 mm … 1 m/s
Contact Gap: 0.9 mm
Terminal: Screw terminal (with toothed washer)
Contact Configuration: Changeover (CO)
Actuator: Low-force hinge lever
Lever Material: Stainless Steel
No. of Vent Holes: 3
Degree of protection: IP00
Operating Temperature: -25 … 80 °C
Dimension: 49.2 X 17.45 mm
