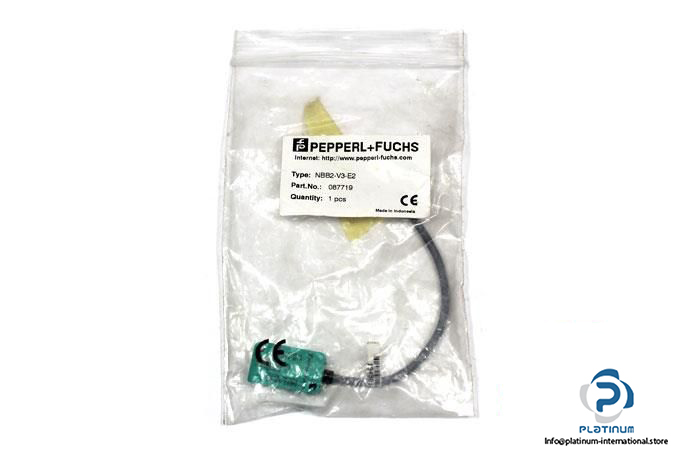

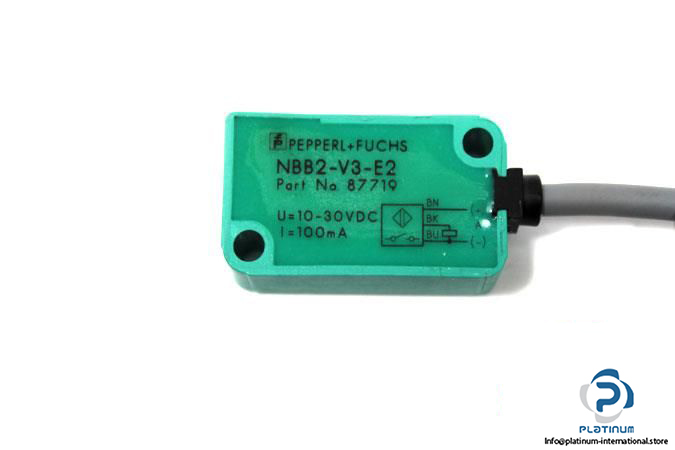

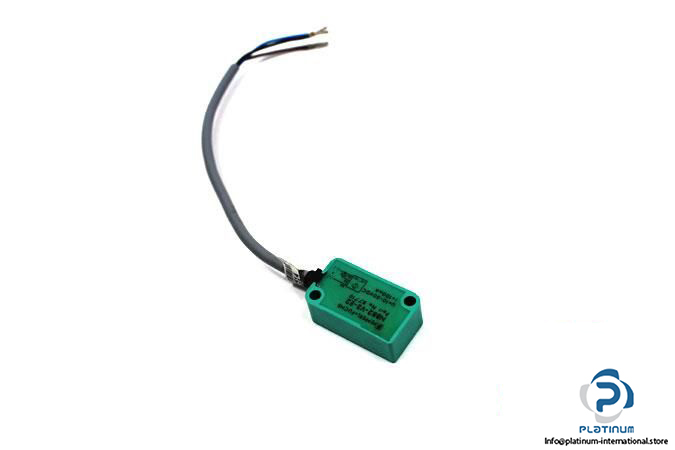

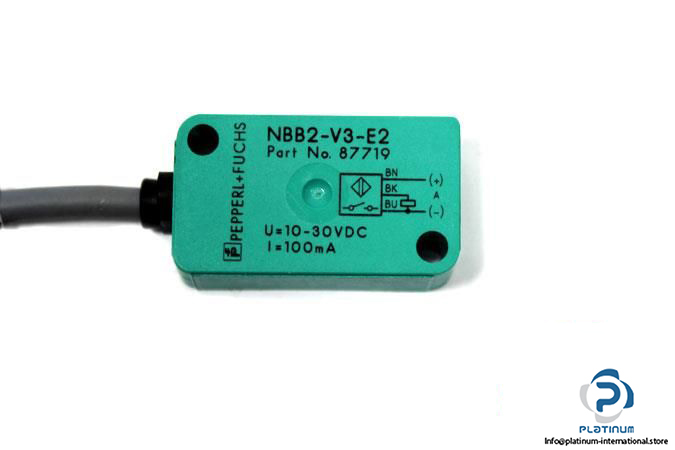

Pepperl+Fuchs NBB2-V3-E2 Inductive Sensor

Manufacturer: PEPPERL FUCHS

Type: INDUCTIVE SENSOR

Model No.: NBB2V3E2

Part No.: 087719

Rated operating distance: 2 mm

Assured operating distance: 0 … 1.62 mm

Operating Voltage: 10 … 30 V DC

Switching frequency: 0 … 1000 Hz

Electrical design: PNP

Switching output: Normally open

Connector type: PVC Cable, 130 mm

Protection class: II

Enclosure rating: IP67

Ambient Operating temperature: -25 …70°C

Dimensions: 10 x 16 x 27.8 mm

Housing material: PBT

Sensing face material: PBT

Mounting: Flush-mountable

Condition: New
