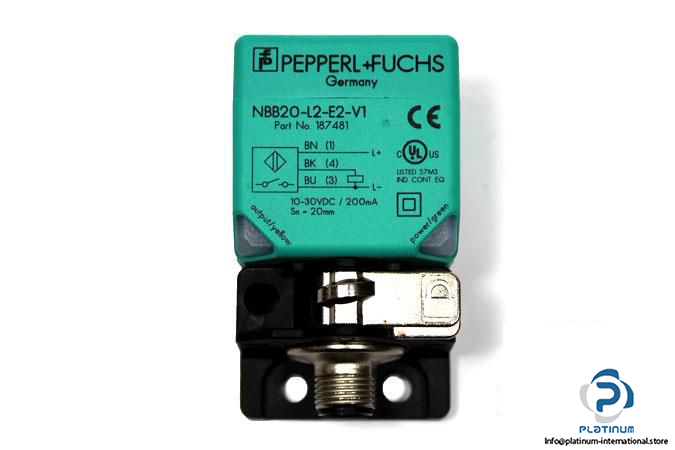

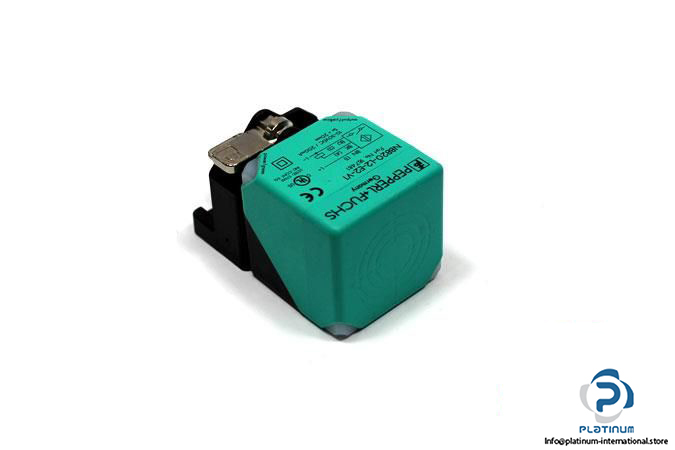

Pepperl+Fuchs NBB20-L2-E2-V1 Inductive Sensor

Name: PEPPERL+FUCHS NBB20-L2-E2-V1 INDUCTIVE SENSOR
SKU: 965793
Price: 45.00 USD
Availability: InStock


pepperlfuchs-nbb20-l2-e2-v1-inductive-sensor4_675x450

pepperlfuchs-nbb20-l2-e2-v1-inductive-sensor3_675x450

pepperlfuchs-nbb20-l2-e2-v1-inductive-sensor5_675x450

pepperlfuchs-nbb20-l2-e2-v1-inductive-sensor6_675x450

pepperlfuchs-nbb20-l2-e2-v1-inductive-sensor7_675x450






جديد

متوفر54 وحداتجاهز للشحن

45,00$

SKU

965793

الفئة

Sensors

الحالة

جديد

20 Fuchs Inductive mm NO Pepperl PNP Sensor Sn:

مستعمل متوفر 75,00$

هذا المنتج متوفر أيضًا بحالة مستعملة

عرض النسخة المستعملة ←

مخزون ضخم

شحن عالمي

دعم من خبراء

جودة مضمونة

Manufacturer: PEPPERL+FUCHS

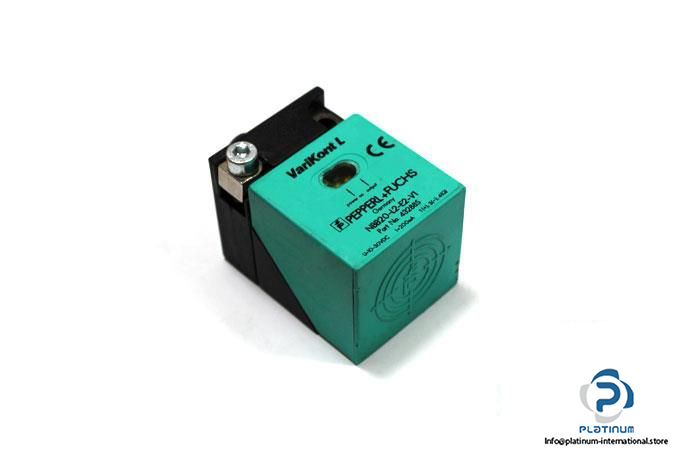

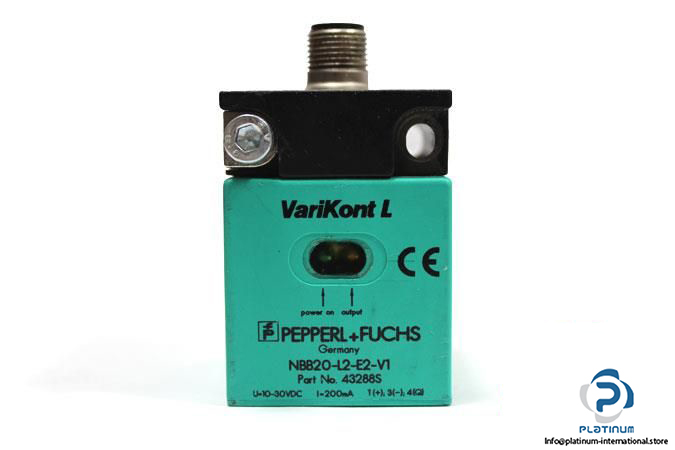

Series: VariKont L

Type: INDUCTIVE SENSOR

Model: NBB20L2E2V1

Part No.: 187481

Alternative Part No.: 43288S

Rated Operating Distance: 20 mm

Assured Operating Distance: 0 … 16.2 mm

Actual Operating Distance: 18 … 22 mm

Operating Voltage: 10 … 30 V DC

Operating Current: 0 … 200 mA

Switching Frequency: 0 … 440 Hz

Electrical Design: PNP

Switching Output: Normally Open

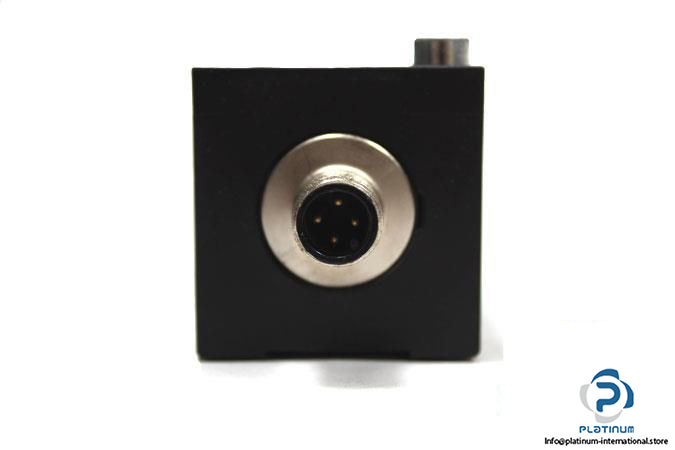

Connector Type: M12 Connector, 4-Pin

Protection Class: II

Degree of Protection: IP69K

Ambient Operating Temperature: -25 … 85°C

Dimensions: 40 x 40 x 55 mm

Housing Material: PA

Sensing Face Material: PA

Mounting: Flush-Mountable

Weight: 0.13 kg
