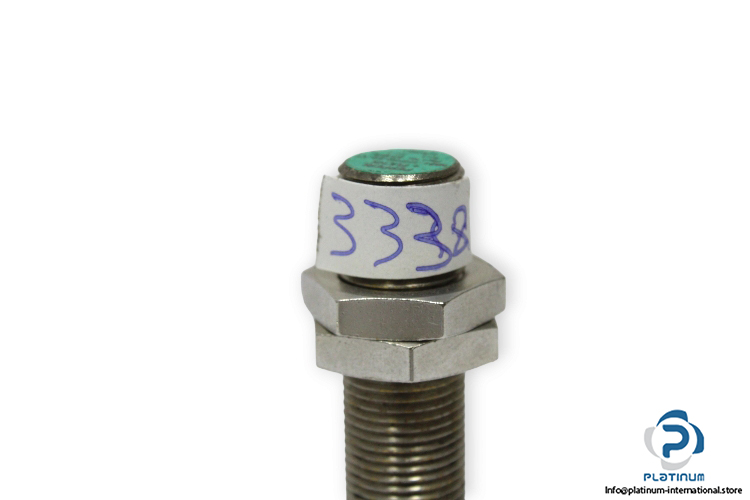

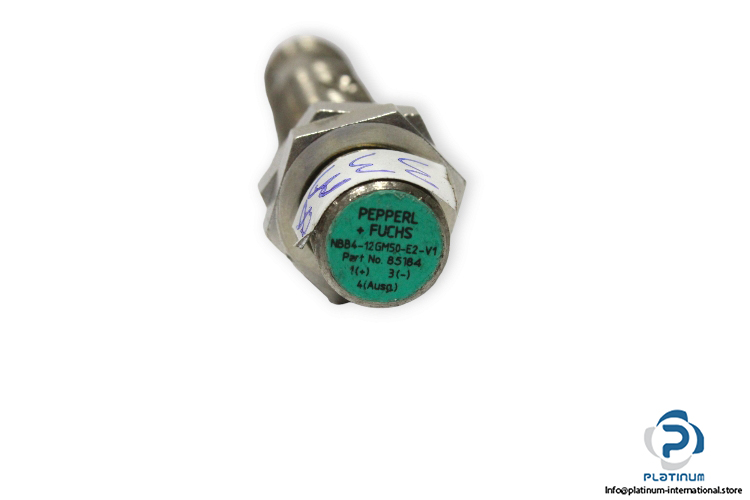

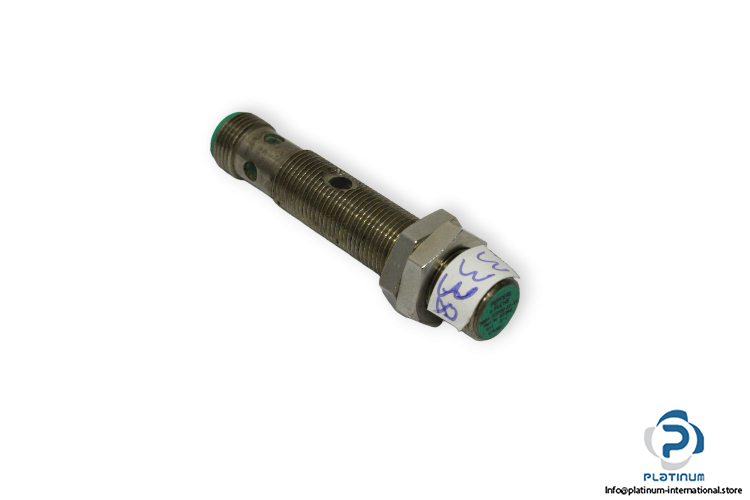

Pepperl+Fuchs NBB4-12GM50-E2-V1 Inductive Sensor

Manufacturer: Pepperl+Fuchs
Type: Inductive Sensor
Model: NBB4-12GM50-E2-V1
Part No: 85184

Switching Type: Normally Open
Signal Type: PNP
Rated Operating Distance: 4 mm
Installation: Flush
Operating Voltage: 10 … 30 V DC
Switching Frequency: 0 … 800 Hz
Operating Current: 0 … 200 Ma
Ambient Temperature: -40 … 70 °C
Connection Type: Connector M12 X 1, 4-Pin

Housing Material: Brass, Nickel-Plated

Sensing Face: PBT

Degree Of Protection: IP67

Diameter, length: 12 mm, 65 mm
