Pepperl+Fuchs NCB4-12GM40-N0-V1 Inductive Sensor
جديد
متوفر2 وحداتجاهز للشحن
Inductive Sensor
A compact and durable NAMUR inductive sensor designed for precise metal detection, offering high switching reliability, stainless-steel construction, and IP66/IP67 protection for harsh industrial environments.AutomationConnectorDetectionInductiveIndustrialIP67M12MetalNamurNCB4-12GM40-N0-V1Pepperl+FuchsProximitySensor
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
PEPPERL+FUCHS NCB4-12GM40-N0-V1 Inductive Sensor
A high-performance NAMUR inductive sensor engineered for precise metal detection in industrial automation, providing stable operation, long sensing life, and reliable performance even in demanding environments. Manufacturer: PEPPERL+FUCHS
Type: Inductive Sensor
Model: NCB4-12GM40-N0-V1
Part No.: 70133044

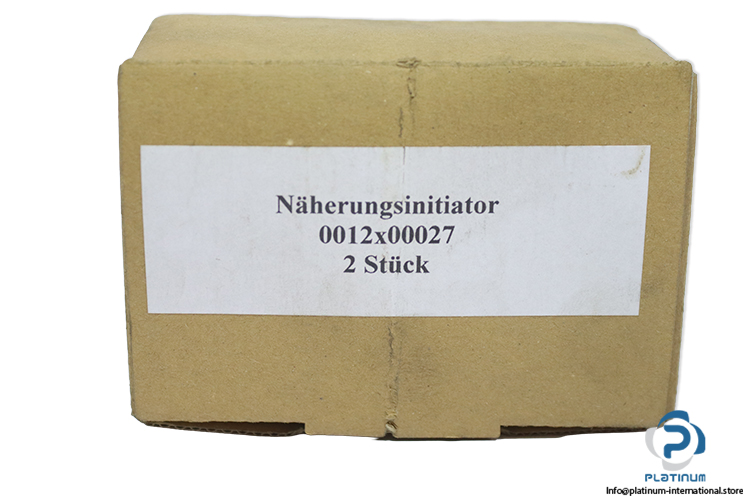

Code: 0012 x 00027
| Switching Function | Normally Closed (NC) |
| Output Type | NAMUR, 2-wire |
| Rated Operating Distance (sn) | 4 mm |
| Installation | Flush |
| Assured Operating Distance (sa) | 0 ... 3.24 mm |
| Actual Operating Distance (sr) | 3.6 ... 4.4 mm typ. |
| Reduction Factor (Al) | 0.41 |
| Reduction Factor (Cu) | 0.39 |
| Reduction Factor (304) | 0.78 |
| Nominal Voltage (Uo) | 8.2 V |
| Switching Frequency | 0 ... 1500 Hz |
| Ambient Temperature | -25 ... 100 °C |
| Connection Type | Connector plug |
| Housing Material | Stainless Steel 1.4305 / AISI 303 |
| Sensing Face Material | PBT |
| Protection Degree | IP66 / IP67 |
| Connector Thread | M12 x 1 |
| Number of Pins | 4 |
| Dimensions | Length 40 mm x Diameter 12 mm |
