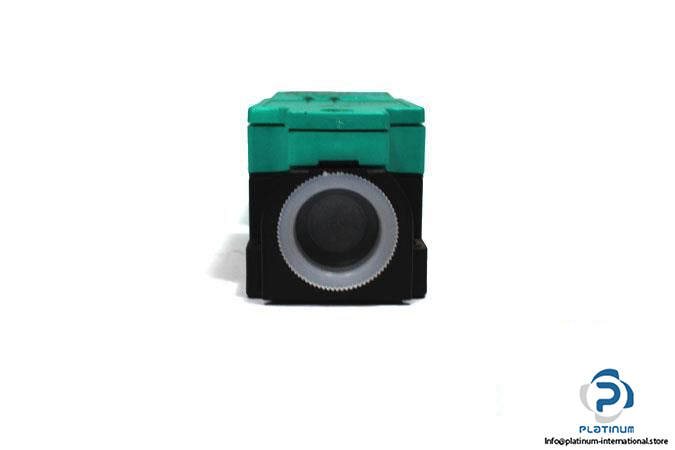

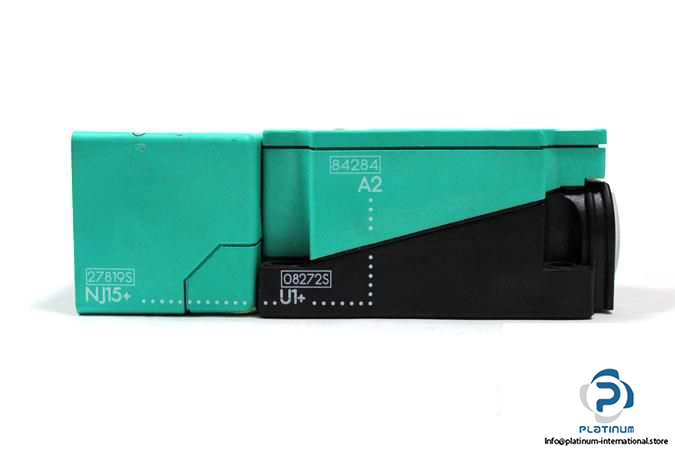

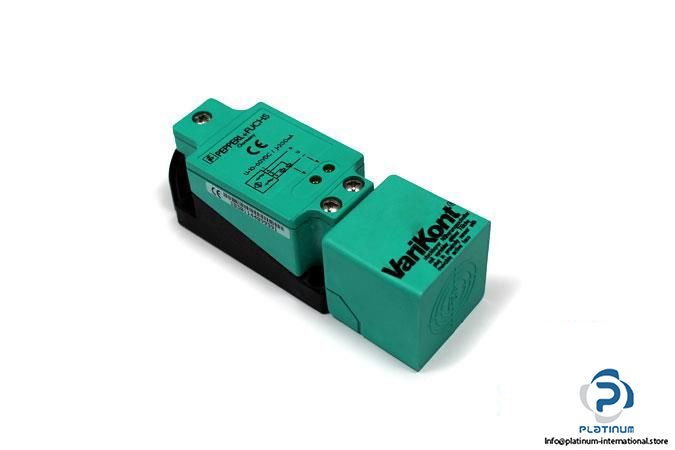

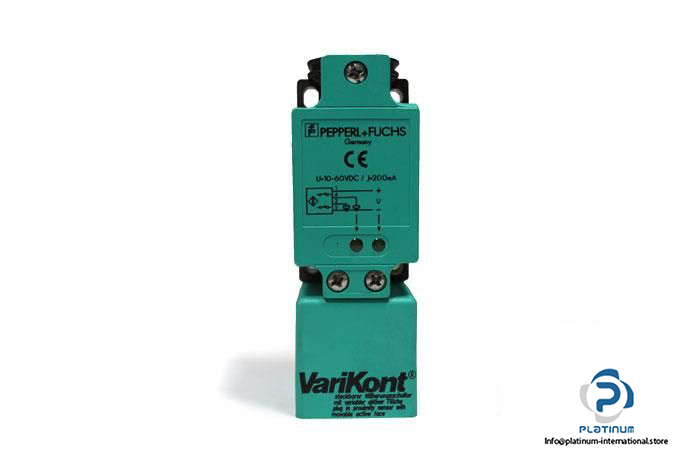

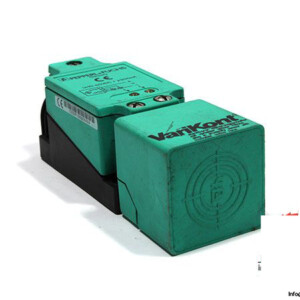

Pepperl+Fuchs NJ15+U1+A2 Inductive Sensor

Manufacturer: Pepperl Fuchs

Series: VariKont

Type: Inductive Sensor

Model: NJ15U1A2

Replaced by: NBB15-U1-A2

Rated Operating Distance: 15 mm

Assured Operating Distance: 0 … 12.15 mm

Operating Voltage: 10 … 60 V DC

Operating Current: 200 mA

Switching Frequency: 0 … 150 Hz

Electrical Design: PNP

Switching Output: Complementary

Connector Type: Terminal Compartment

Protection Class: II

Enclosure Rating: IP68

Ambient Operating Temperature: -25 … 70°C

Dimensions: 40 x 40 x 118 mm

Housing Material: PBT

Sensing Face Material: PBT

Mounting: Flush-Mountable

Weight: 0.27 kg
