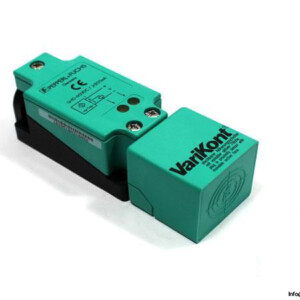

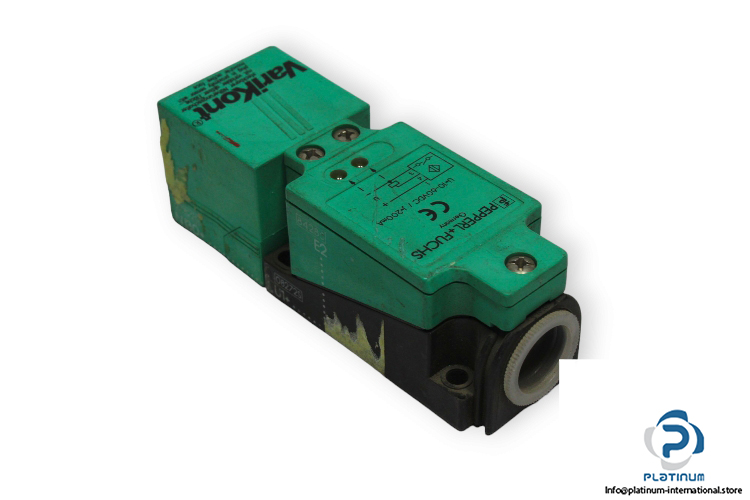

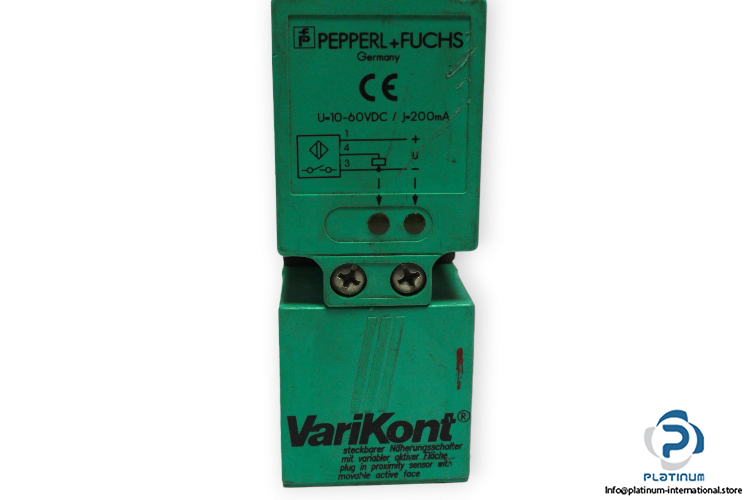

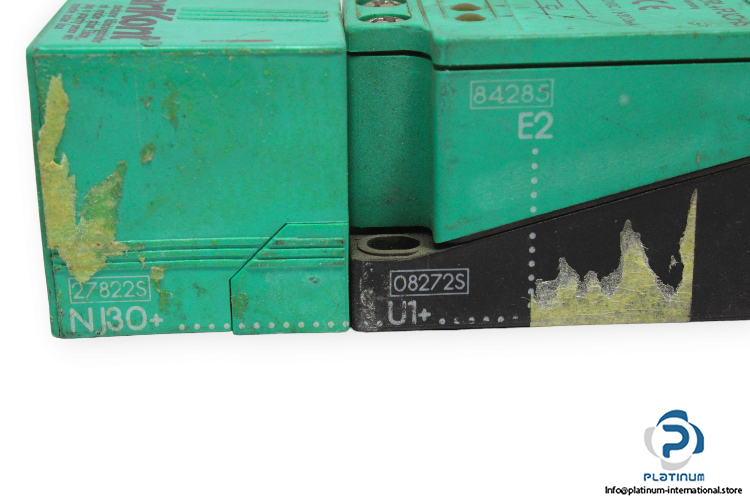

Pepperl+Fuchs NJ30+U1+E2 Inductive Sensor

Manufacturer: PEPPERL+FUCHS
Type: Inductive Sensor
Series: VariKont
Model: NJ30+U1+E2
Replaced by: NBN30-U1-E2

Rated operating distance: 30 mm
Assured operating distance: 0 … 24.3 mm
Operating Voltage: 10 … 60 V DC
Operating Current: 200 mA
Switching frequency: 0 … 100 Hz
Electrical design: PNP
Switching output: Normally open
Connector type: Terminal compartment
Enclosure rating: IP68
Dimensions: 40 x 40 x 118 mm
Housing: Rectangular
housing material: PBT
Sensing face material: PBT
Mounting: Non-flush mountable
Operating Temperature: -25 … 70°C
