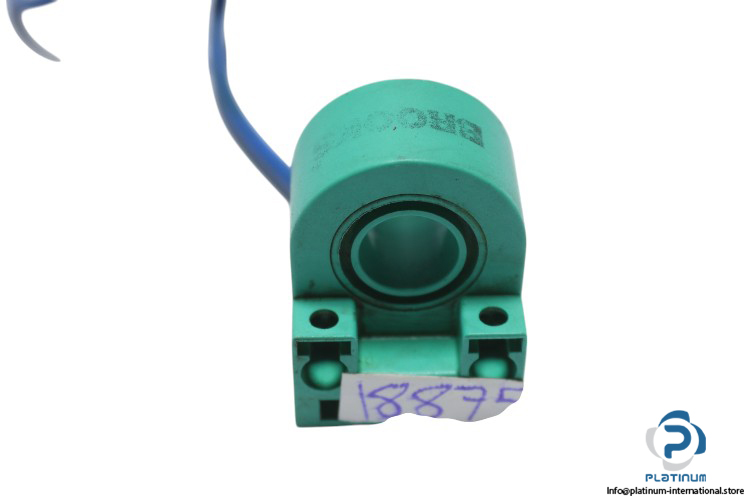

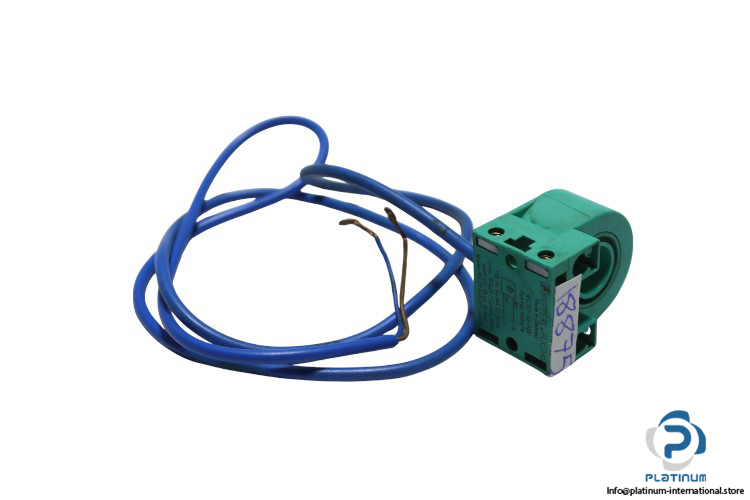

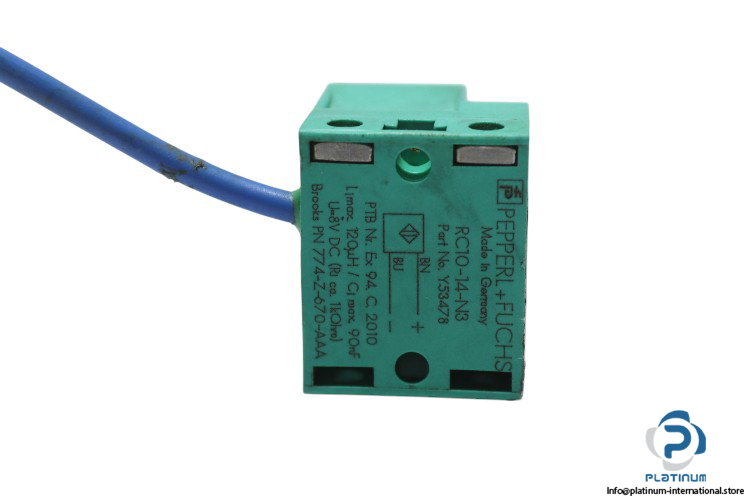

Pepperl+Fuchs RC10-14-N3 Inductive Ring Sensor
مستشعر حلقي حثي يحتوي مستشعر الحلقة الحثية Pepperl+Fuchs RC1014N3 على مخرج NAMUR ثنائي الحالة، وظيفة تبديل NC، حماية IP67، وقطر داخلي 10 مم للأتمتة الصناعية.
Pepperl+Fuchs RC1014N3 Inductive Ring Sensor
The Pepperl+Fuchs RC1014N3 Inductive Ring Sensor is a highly reliable detection device designed for industrial automation. Featuring a normally closed (NC) switching function, NAMUR bistable output, and IP67 protection, this sensor ensures precise and durable performance in demanding environments.
Manufacturer: Pepperl+Fuchs
Type: Inductive Ring Sensor
Model: RC1014N3
Part No.: Y53478
Measuring Cylinder:
Current Consumption:
| Switching Function | Normally Closed (NC) |
| Output Type | NAMUR, Bistable |
| Inside Diameter | 10 mm |
| Inductance | 120 mH |
| Capacitance | 90 nF |
| Diameter | 2.5 mm |
| Length | 3 mm |
| Measuring Cone Material | 9S20K |
| Output Type | 2-Wire |
| Nominal Voltage | 8 V DC |
| Traverse B | 3 mA |
| Traverse A | 1 mA |
| Time Delay Before Availability (tv) | 5 ms |
| Ambient Temperature Range | -20 to 100 °C |
| Connection Type | Cable |
| Housing Material | PBT |
| Degree of Protection | IP67 |
| Dimensions (W x H x D) | 32.5 x 25 x 20 mm |
