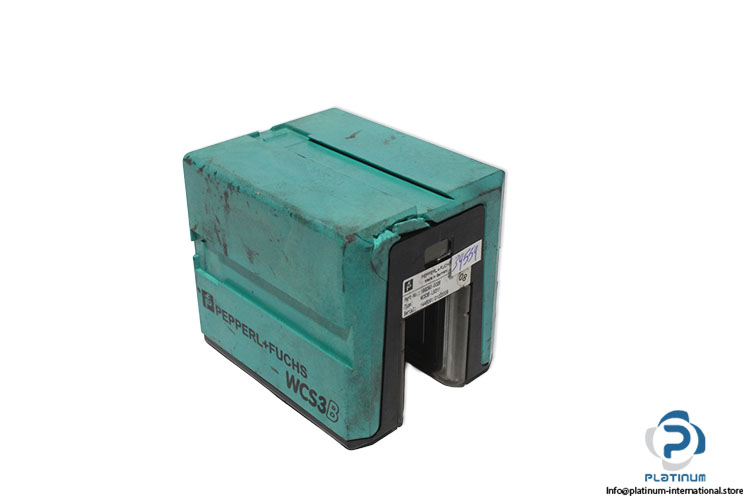

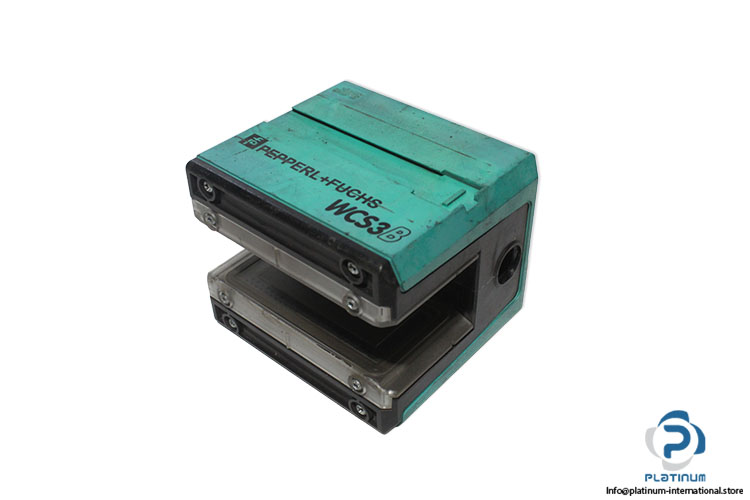

Pepperl+Fuchs WCS3B-LS311 Read Head
مستعمل
متوفر1 وحدةجاهز للشحن
299,99$
Read Head The PEPPERL+FUCHS WCS3B-LS311 is a precision read head with SSI interface, 25-bit Gray code output, and ±0.4 mm resolution, designed for reliable industrial positioning applications.
جديد
متوفر 399,99$
هذا المنتج متوفر أيضًا بحالة جديدة
عرض النسخة الجديدة ←
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

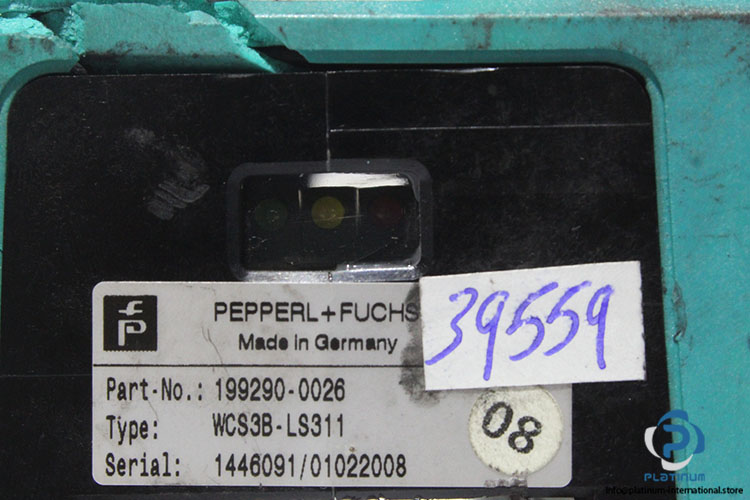

| Part No. | 199290-0026 |
| Ref no | 07479467599004 |
| Series | WCS3B |
| Passage speed | 12.5 m/s |
| Measuring length | max. 314.5 m |
| Free tolerances to code rail | horizontal: 31 mm ( ± 15.5 mm ) |
| vertical | 28 mm ( ± 14 mm ) |
| Resolution | ± 0.4 mm (1,250 positions/m) |
| Operation indicator | LED green: power on |
| Data flow indicator | LED yellow: data communication active |
| Error indicator | LED red |
| Operating voltage UB | 10 ... 30 V DC |
| Power consumption | P0 2 VA |
| Interface type | SSI interface |
| Data output code | Gray code , 25 bit |
| Clock frequency | 100 ... 1000 kHz |
| Pause time | tp 20 µs |
| Photobiological safety | exempt group according to EN 62471:2008 |
| Emitted interference | DIN EN 61000-6-4 |
| Noise immunity | DIN EN 61000-6-2 |
| Shock resistance | DIN EN 60068-2-27, half sine 30 g, 18 ms |
| Vibration resistance | DIN EN 60068-2-6, sine, 5 g, 10 - 2000 Hz, 10 cycles |
| CSA approval | cCSAus Certified, General Purpose |
| Class | 2 power source |
| flashing | read head outside of code rail |
| solid on | internal diagnostic test failed |
| Operating temperature | 0 ... 60 °C |
| Connection type | 8-pin, M12 x 1 connector |
| Degree of protection | IP54 |
| Housing Material | ABS , PC (Polycarbonate) |
| Height | 99 mm |
| Width | 90 mm |
| Length | 115 mm |
| Stock key | CON003 |
| Condition | Used |
| SKU | 1100976 |
| Weight | 0,47 |
