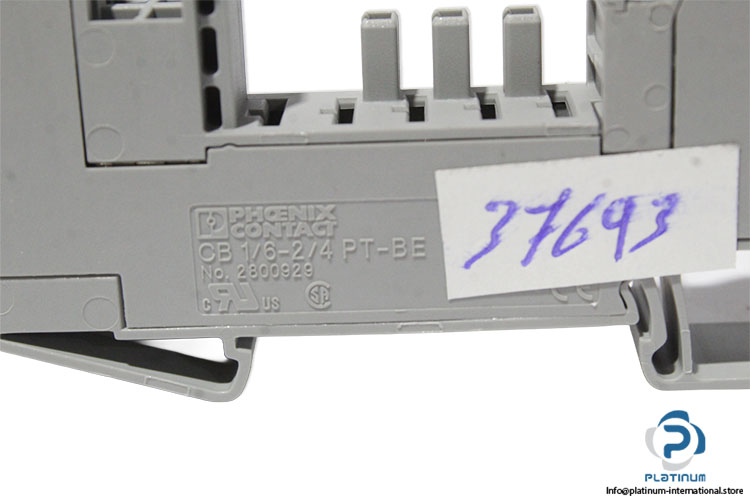

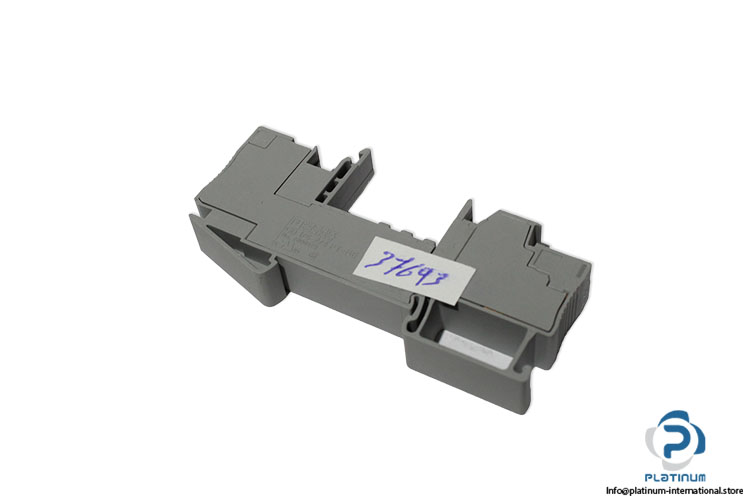

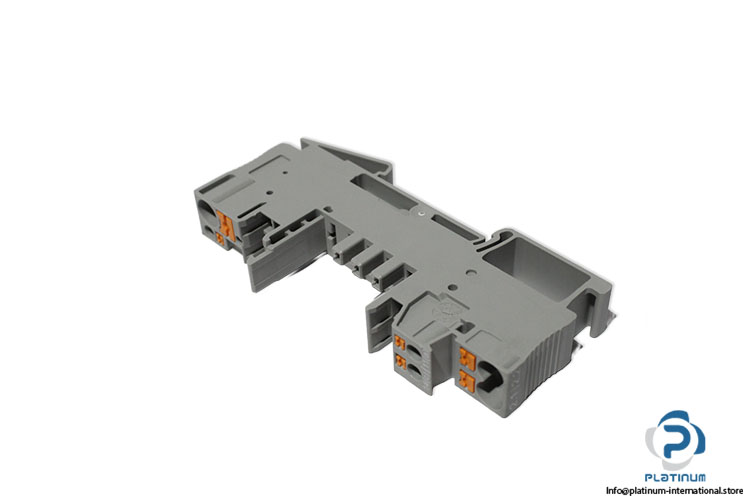

Phoenix Contact CB 1/6-2/4 PT-BE Base Element
جديد
متوفر2 وحداتجاهز للشحن
The PHOENIX CONTACT CB 1/6-2/4 PT-BE is a DIN rail-mounted base element featuring a push-in connection, changeover contact, 16 A load current, and 300 V nominal voltage. Designed for reliable installation in industrial control panels and electrical distribution systems.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| Part No. | 2800929 |
| Product family | CB BE |
| load current | max. 16 A |
| Nominal voltage | 300 V |
| Rated insulation voltage | 250 V |
| Rated surge voltage | 4 kV |
| Connection name | Remote indication circuit |
| Switching function | Changeover contact |
| Mounting type | DIN rail, 35 mm |
| Connection method | Push-in connection |
| Stripping length | 8 mm |
| Dimensions | 12.3 x 90 x 46.7 mm |
| Protection Degree | IP30 |
| Ambient temperature | -30 ... 60 °C |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093422 |
| Weight | 0,03 |
