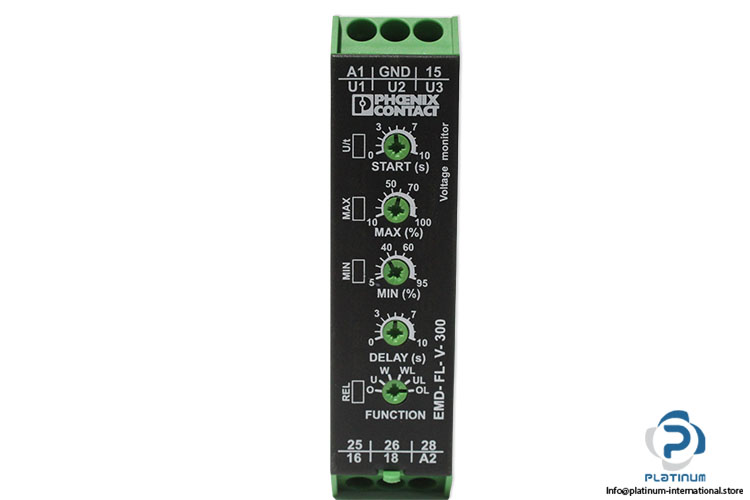

Phoenix Contact EMD-FL-V-300 Monitoring Relay
جديد
متوفر1 وحدةجاهز للشحن
The Phoenix Contact EMD-FL-V-300 is a compact voltage monitoring relay designed for industrial control systems. It features a 24 V AC/DC supply, 5 A floating changeover contacts, DIN rail mounting, and reliable voltage supervision to protect electrical equipment.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| Supply voltage range | 24 V AC/DC |
| Rated insulation voltage | 300 V |
| Rated surge voltage | 0 4 kV |
| Current | 5A |
| Nominal power consumption | 4.5 VA (1.5 W) |
| Input name | Measuring input |
| Recovery time | 500 ms |
| Contact switching type | 2 floating changeover contacts |
| Connection method | Screw connection |
| Mounting type | DIN rail mounting |
| Output fuse | 5 A (fast-blow) |
| Stripping length | 8 mm |
| Dimensions | 22,5x90x113 mm |
| Housing insulation material | Polyamide PA, self-extinguishing |
| Degree of protection | IP40 |
| Ambient temperature | -25 ... 55 °C |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093431 |
| Weight | 0,14 |
